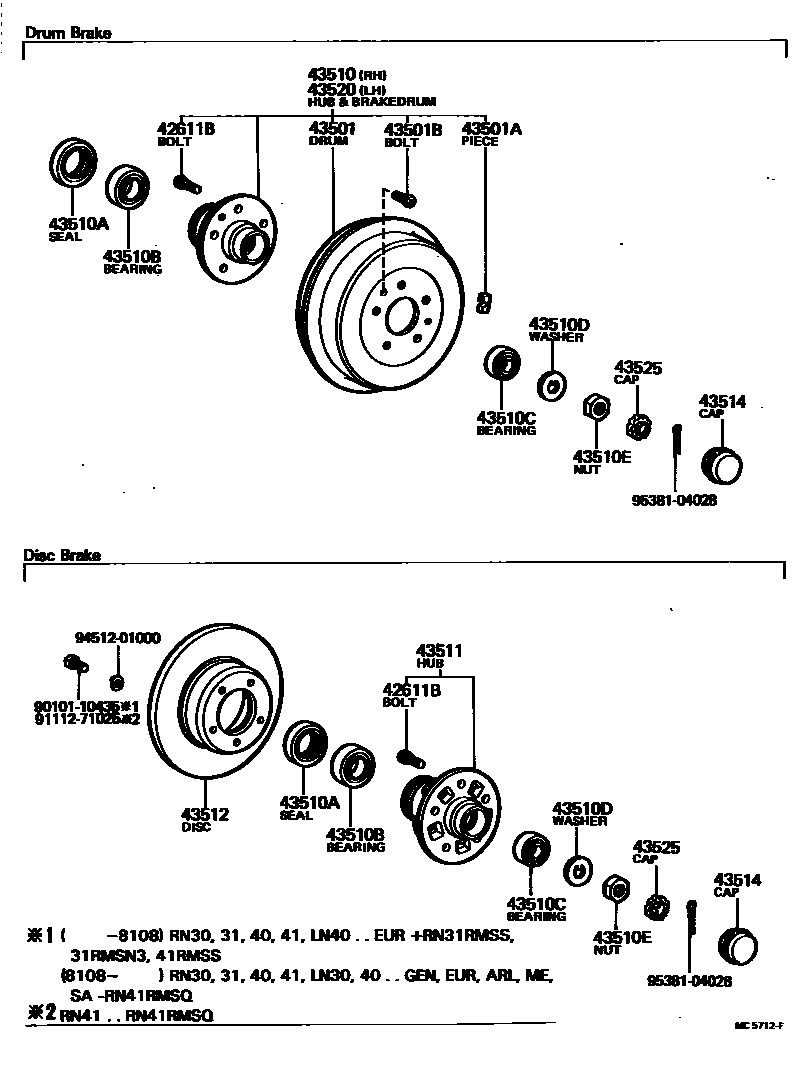

FRONT AXLE HUB

0001 1 0002 1 0003 1

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02014iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-198008

FR DISC BRAKE

main90942-02034iLN36,46,RN36,46..GEN,ME197901-198307

FR DRUM BRAKE

sub90942-02052

main90942-02035iLN30,40,RN30,31,40,41..ARL,EUR,GEN,ME197808-198403

FR DISC BRAKE

sub90942-02047

main90942-02037iRN41..DLX,STD;RN41..SR5..GEN;LN30,40,RN30,31,40197808-198307

FR DRUM BRAKE

sub90942-02049

main90942-02044iLN36,46,RN36,46198008-198307

FR DISC BRAKE

sub90942-02053

43501DRUM SUB-ASSY, FRONT BRAKE

main43512-35030iRN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA)197808-198307

main43512-35050iLN36,46,RN36,46..GEN,ME197901-198307

sub43512-35051

sub90113-10003

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01100iRN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD197808-198307

40.5G,40.5G

main90937-01117iRN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD197808-198307

10G,10G

main90937-01118iRN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA)197808-198307

20G,20G

main90937-01119iLN36,46,RN36,46..GEN,ME197808-198307

30G,30G

main90937-01120iLN36,46,RN36,46..GEN,ME197901-198307

40G,40G

main90937-01121iLN36,46,RN36,46..GEN,ME197901-198307

50G,50G

main90937-01122iLN36,46,RN36,46..GEN,ME197901-198307

60G,60G

main90937-01146iRN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD197808-198307

25G,50G

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10035iRN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA)197808-198307

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-35050iRN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD197808-198307

main43510-35070iRN36,46..GEN197901-198008

sub43510-35071

main43510-35071iLN36,46,RN36,46..GEN,ME198008-198307

sub43510-60080

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50136iLN30,40,RN30,31,40,41197808-198403

main90311-62001iLN36,46,RN36,46197901-198307

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-34039iLN30,40,RN30,31,40,41197808-198403

sub90368-34001

main90368-49084iLN36,46,RN36,46197901-198307

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-21065iLN30,40,RN30,31,40,41197808-198403

sub90368-21001

main90368-45087iLN36,46,RN36,46197901-198307

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20007iLN30,40,RN30,31,40,41197808-198403

main90214-42030iLN36,46,RN36,46197901-198307

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185iLN30,40,RN30,31,40,41197808-198403

43511HUB, FRONT AXLE

main43502-26010iLN30,40,RN30,31,40,41197808-198403

FR DISC BRAKE

sub43502-26H00

main43502-60020iLN36,46,RN36,46198008-198307

FR DISC BRAKE

sub43502-39095

main43511-60012iLN36,46,RN36,46..GEN,ME197901-198307

FR DRUM BRAKE

sub43502-60030

main43511-60021iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-198008

FR DISC BRAKE

43512DISC, FRONT

main43512-26030iRN30,31,40..(SR5,STD)..(EUR,SA)..ECB197808-197909

sub43512-26031

main43512-26031iRN41..DLX,STD;RN41..SR5..(GEN,SA);LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA197909-198403

main43512-35020iRN41..SR5..ARL197808-198307

main43512-35040iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-198008

main43512-35070iLN36,46,RN36,46198008-198307

sub43512-60060

43514CAP, FRONT HUB GREASE

main43423-60011iLN36,46,RN36,46197901-198307

sub43423-35010

main43514-35010iLN30,40,RN30,31,40,41197808-198403

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-35050iRN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA)197808-198307

main43510-35070iRN36,46..GEN197901-198008

sub43510-35071

main43510-35071iLN36,46,RN36,46..GEN,ME198008-198307

sub43510-60080

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010iLN30,40,RN30,31,40,41197808-198403

9010110435

main90101-10435

9111271025

main91112-71025

9451201000

main94512-01000

9538104028

main95381-04028

19 parts on this diagram · 3 diagrams in section
