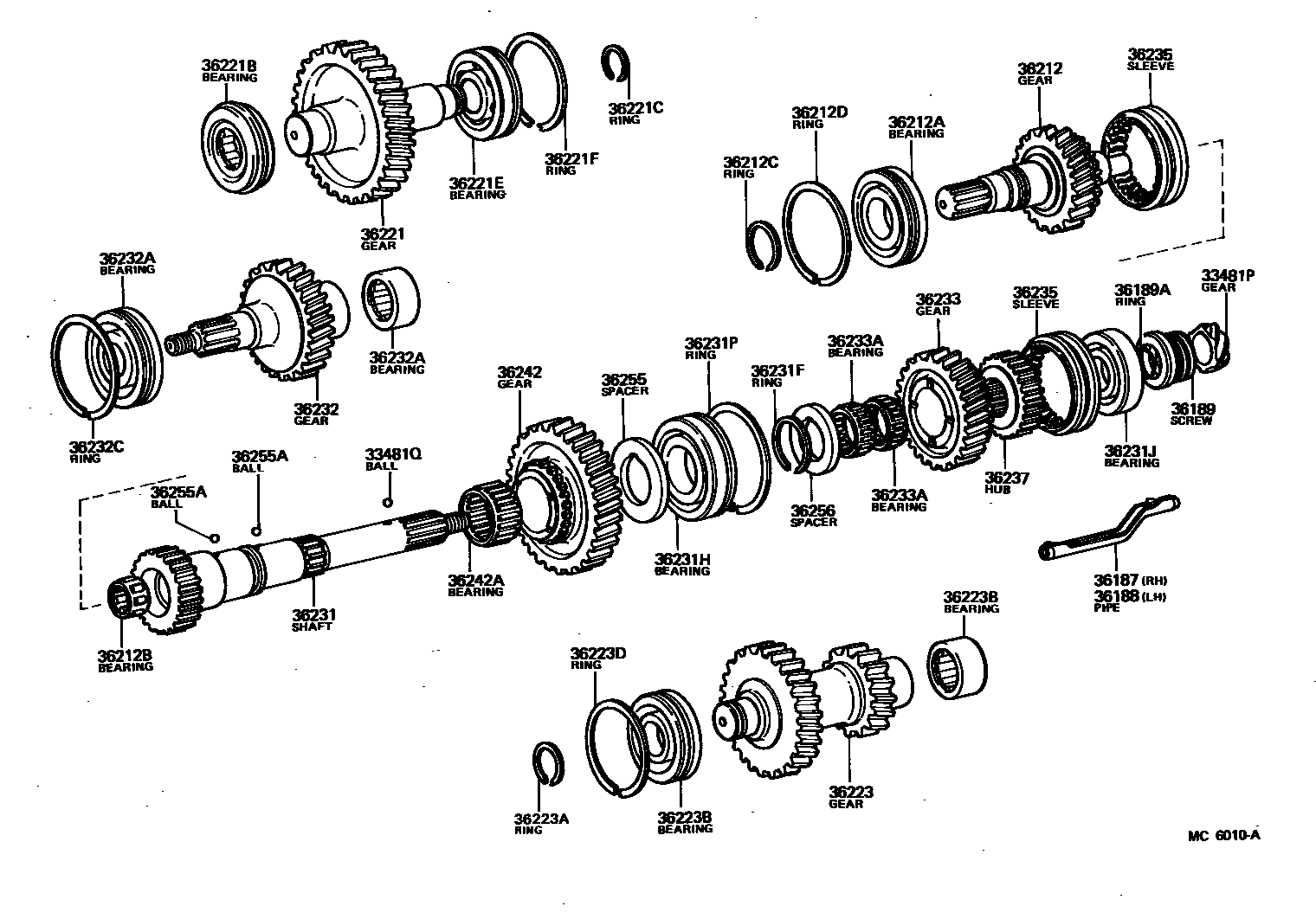

TRANSFER GEAR

33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)

main33481-20070iLN46,RN46..T1..ARL..CBU198208-198307

N=5,MARK 5X17-19,N=5,W/205SR16 TIRE

main33481-22010iLN36,46,RN36,46197901-198307

N=6,MARK 6X18-20,N=6

33481QKEY OR BALL, SPEEDOMETER DRIVE GEAR (FOR TRANSFER)

main90360-06004iLN36,46,RN36,46197901-198307

36187PIPE, TRANSFER OIL SUPPLY, RH

main36187-35010iLN36,46,RN36,46197901-198307

36188PIPE, TRANSFER OIL SUPPLY, LH

main36188-35010iLN36,46,RN36,46197901-198307

36189SCREW, TRANSFER OIL PUMP

main36189-35010iLN36,46,RN36,46197901-198307

36189ARING, O (FOR TRANSFER OIL PUMP SCREW)

main96710-02028iLN36,46,RN36,46197901-198111

main96711-24028iLN36,46,RN36,46198111-198307

36212GEAR, TRANSFER INPUT

main36212-35010iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-198008

sub33399-35011

main36212-35011iLN36,46,RN36,46198008-198307

sub36212-35012

36212ABEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR)

main90363-35006iLN36,46,RN36,46197901-198307

sub90363-35009

36212BBEARING, NEEDLE ROLLER (FOR TRANSFER INPUT GEAR)

main90364-19043iLN36,46,RN36,46197901-198307

sub90364-19006

36212CRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR)

main90520-33168iLN36,46,RN36,46197901-198307

T=2.05,MARK 1,T=2.05

main90520-33170iLN36,46,RN36,46197901-198307

T=2.15,MARK 3,T=2.15

main90520-33172iLN36,46,RN36,46197901-198307

T=2.25,MARK 5,T=2.25

36212DRING, SHAFT SNAP (FOR TRANSFER INPUT BEARING)

main90520-76001iLN36,46,RN36,46197901-198307

T=1.65

36221GEAR, TRANSFER IDLER

main36221-35010iLN36,46,RN36,46197901-198307

36221BBEARING (FOR TRANSFER IDLER GEAR)

main90365-38001iLN36,46,RN36,46197901-198307

36221CRING, SHAFT SNAP (FOR TRANSFER IDLER GEAR)

main90520-28242iLN36,46,RN36,46197901-198307

T=1.50-1.55,MARK A,T=1.50

main90520-28243iLN36,46,RN36,46197901-198307

T=1.60-1.65,MARK B,T=1.60

36221EBEARING, RADIAL BALL (FOR TRANSFER IDLER GEAR)

main90363-30012iLN36,46,RN36,46197901-198307

36221FRING, SHAFT SNAP (FOR TRANSFER IDLER GEAR BEARING)

main90520-68193iLN36,46,RN36,46197901-198307

36223GEAR, TRANSFER COUNTER

main36223-35010iLN36,46,RN36,46197901-198307

sub36223-35011

36223ARING, SHAFT SNAP (FOR TRANSFER COUNTER GEAR)

main90520-30215iLN36,46,RN36,46197901-198307

T=2.10,MARK 1,T=2.10-2.15

main90520-30217iLN36,46,RN36,46197901-198307

T=2.20,MARK 3,T=2.20-2.25

36223BBEARING (FOR TRANSFER COUNTER GEAR)

main90363-32006iLN36,46,RN36,46197901-198307

FR

main90369-45001iLN36,46,RN36,46197901-198307

RR

36223DRING, SHAFT SNAP (FOR TRANSFER COUNTER GEAR BEARING)

main90520-71221iLN36,46,RN36,46197901-198307

36231SHAFT, TRANSFER OUTPUT, REAR

main36231-35010iLN36,46,RN36,46197901-198209

main36231-35011iLN36,46,RN36,46198209-198307

36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)

main90520-36250iLN36,46,RN36,46197901-198307

T=2.40-2.45,T=2.40

main90520-36251iLN36,46,RN36,46197901-198307

T=2.45-2.50,T=2.45

main90520-36252iLN36,46,RN36,46197901-198307

T=2.50-2.55,T=2.50

main90520-36253iLN36,46,RN36,46197901-198307

T=2.55-2.60,T=2.55

main90520-36254iLN36,46,RN36,46197901-198307

T=2.60-2.65,T=2.60

main90520-36255iLN36,46,RN36,46197901-198307

T=2.65-2.70,T=2.65

36231HBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT FRONT)

main90363-40007iLN36,46,RN36,46197901-198307

36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)

main90363-28002iLN36,46,RN36,46197901-198307

sub90363-28004

36231PRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT FRONT BEARING)

main90520-86001iLN36,46,RN36,46197901-198307

36232GEAR, TRANSFER FRONT DRIVE

main36232-35010iLN36,46,RN36,46197901-198209

main36232-35011iLN36,46,RN36,46198209-198307

36232ABEARING (FOR TRANSFER FRONT DRIVE GEAR)

main90363-30014iLN36,46,RN36,46197901-198307

FR

main90369-45001iLN36,46,RN36,46197901-198307

RR

36232CRING, SHAFT SNAP (FOR TRANSFER FRONT DRIVE GEAR BEARING)

main90520-76001iLN36,46,RN36,46197901-198307

36233GEAR, TRANSFER DRIVE

main36233-35010iLN36,46,RN36,46197901-198307

36233ABEARING, NEEDLE ROLLER (FOR TRANSFER DRIVE GEAR)

main90364-35001×2iLN36,46,RN36,46197901-198307

36235SLEEVE, TRANSFER HIGH & LOW CLUTCH

main36235-35010×2iLN36,46,RN36,46197901-198307

36237HUB, TRANSFER CLUTCH

main36237-35010iLN36,46,RN36,46197901-198307

36242GEAR, TRANSFER LOW

main36242-35010iLN36,46,RN36,46197901-198307

sub36242-35011

36242ABEARING, NEEDLE ROLLER (FOR TRANSFER LOW GEAR)

main90364-45002iLN36,46,RN36,46197901-198307

36255SPACER, TRANSFER OUTPUT SHAFT, NO.1

main36255-35010iLN36,46,RN36,46197901-198307

36255ABALL (FOR TRANSFER OUTPUT SHAFT SPACER)

main90360-06004×2iLN36,46,RN36,46197901-198307

36256SPACER, TRANSFER OUTPUT SHAFT, NO.2

main36256-35010iLN36,46,RN36,46197901-198307

37 parts on this diagram · 1 diagram in section
