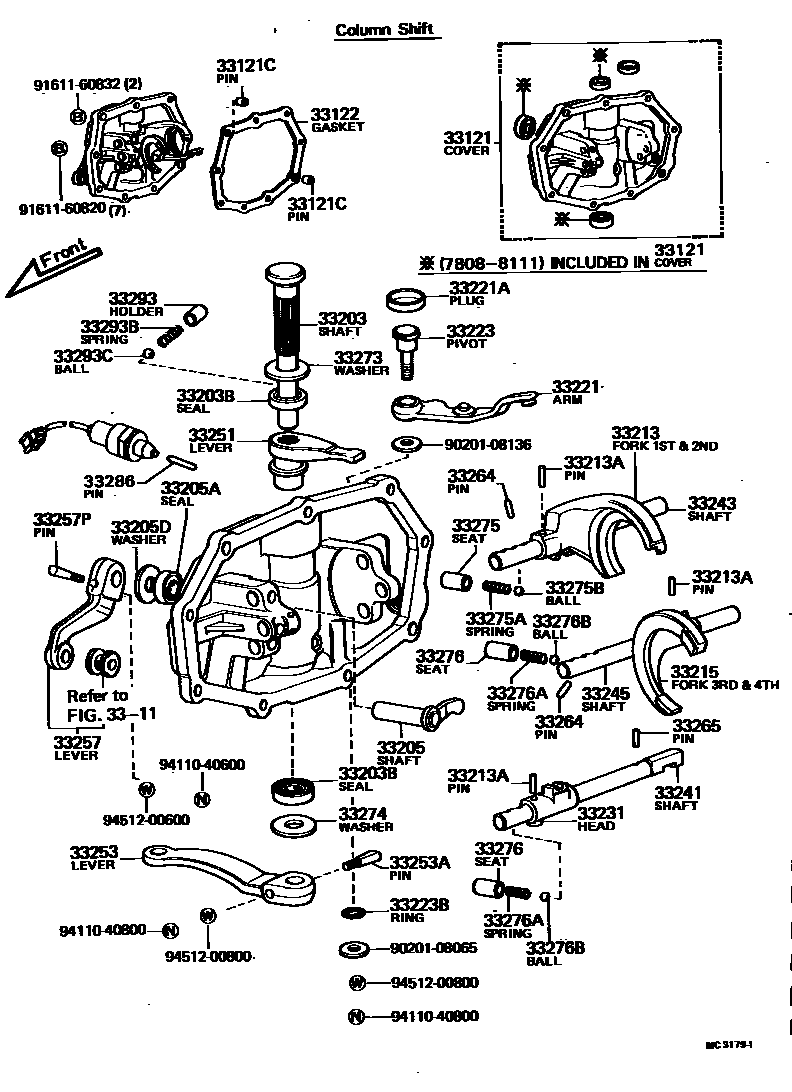

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1 0010 1

3311

33121COVER, MANUAL TRANSMISSION CASE

main33102-26010iRN30,31,40,41..4H..(ARL,GEN,SA)198111-198307

W/O SHIFT POINT SENSOR

sub33102-35040

main33102-26020iRN40..4H..EUR198111-198307

W/SHIFT POINT SENSOR

main33102-26020iRN40..4H..EUR198111-198307

NEW SOUTH WALES SPEC

main33102-26020iRN30,40..4H..RCB198111-198202

HONG KONG SPEC

main33102-35010iLN30,40,RN30,31,40,41..4F..(ARL,GEN,ME,PHL,SA)198111-198403

W/O SHIFT POINT SENSOR

main33102-35020iRN30,40..4F..EUR198111-198307

W/SHIFT POINT SENSOR

main33102-35030iRN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA198111-198307

main33102-35040iRN30,40..4H198307-198312

W/O SHIFT POINT SENSOR

main33121-26903iRN30,40..ARL197808-198111

W/SHIFT POINT SENSOR

sub33102-26020

main33121-26903iRN30,40..ARL197808-198111

NEW SOUTH WALES SPEC

sub33102-26020

main33121-26903iRN30..4H..RCB..CBU;RN40..4H..GEN..RCB197808-198111

HONG KONG SPEC

sub33102-26020

main33121-26904iRN30,31,40,41..4H..(ARL,GEN,SA)197808-198111

W/O SHIFT POINT SENSOR

sub33102-26010

main33121-35060iLN30,40..5H197911-198307

sub33121-28010

sub90341-18049

sub90430-18008

main33121-35070iLN30,40..5F197911-198312

main33121-35080iLN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198103-198307

main33121-35901iLN30,40,RN30,31,40,41..4F..(GEN,PHL,SA)197808-198108

W/O SHIFT POINT SENSOR

sub33102-35010

sub90311-18002

main33121-35902iRN30,40..4F..EUR197808-198111

W/SHIFT POINT SENSOR

sub33102-35020

main33121-35903iRN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA197901-198111

sub33102-35030

main33121-35904iLN30,40,RN30,31,40,41..4F..(ARL,GEN,ME,PHL,SA)198108-198111

W/O SHIFT POINT SENSOR

sub33102-35010

33121CPIN(FOR TRANSMISSION CASE COVER)

main90250-10214iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198312

L=14,OD=10

main90253-11001iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

L=11,OD=11

33122GASKET, MANUAL TRANSMISSION CASE COVER

main33122-30020iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

main33122-35020iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198312

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33203-20092iRN31,41..SR5197808-198105

sub33251-20040

main33251-20040iRN31,41..SR5198105-198312

main33261-20010iLN30,40,RN30,31,40,41..4F197808-198403

main33261-30020iRN30,31,40,41..4H197808-198312

main33261-35030iRN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA197901-198307

main33261-35050iLN30,40..5H197911-198107

sub33261-35051

main33261-35051iLN30,40..5H198107-198307

main33261-35060iLN30,40..5F197911-198101

main33261-35061iLN30,40..5F198101-198312

main33261-35070iLN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198103-198307

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-13050iRN30,31,40,41..4H197808-198312

LWR

main90311-18002iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F197808-198403

main90312-15003iRN30,31,40,41..4H197808-198312

UPR

main90312-17001iLN40..ECB197911-198312

OD=24,T=5.0

main90312-20016iLN30,40..5H197911-198211

OD=26,T=6.0

main90313-20001iLN40..5H198211-198307

OD=26,T=6.0

33205SHAFT SUB-ASSY, SELECT LEVER

main33262-26010iRN30,31,40,41..4H197808-198312

main33262-35030iLN30,40..5H197911-198006

sub33262-35031

main33262-35031iLN30,40..5H198006-198307

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90313-13001iLN30,40,RN30,31,40,41..4H,5H197808-198403

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main94612-11300iLN30,40,RN30,31,40,41..4H,5H197808-198403

33213FORK, 1ST & 2ND SHIFT

main33212-20050iRN31,41..SR5198201-198312

main33212-28010iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

main33212-31010iRN31,41..SR5197808-198201

main33212-35010iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198312

main33212-35022iLN30,40..5F..RCB198310-198403

sub33212-35023

sub33242-35022

sub90105-06143

sub90520-12003

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197808-198403

L=22

main90254-05016iLN40..ECB198109-198312

L=25.5

33215FORK, 3RD & 4TH SHIFT

main33213-26020iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

main33213-31010iRN31,41..SR5197808-198312

main33213-35020iLN40..ECB197911-198312

main33213-35031iLN30,40..5F..RCB198310-198403

sub33213-35033

sub33243-35042

sub33364-26020

sub90105-06143

sub90520-12003

33221ARM, REVERSE SHIFT

main33201-35020iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198312

main33221-28010iLN30,40..5F..RCB198310-198403

main33221-30010iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

33221APLUG, TIGHT(FOR REVERSE SHIFT ARM)

main96411-12500iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

sub96411-42500

33223PIVOT, SHIFT ARM

main33223-30011iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

main33223-35020iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198312

33223BRING, O(FOR SHIFT ARM PIVOT)

main90301-08001iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

main96710-01010iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198111

sub96711-19010

main96711-19010iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198111-198312

33231HEAD, REVERSE SHIFT

main33202-26011iLN3#,4#..5F,5H197911-198312

main33202-35010iLN46..TW;LN46..T1..IV3;RN46..ARL..CBU;LN36,46..T1..GEN..CBU198103-198307

main33231-26010iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

main33231-35040iLN30,40..5F..RCB198310-198403

sub33231-35070

sub33214-35040

sub33244-35050

sub33245-35080

sub33395-26020

sub90105-06143

33241SHAFT, REVERSE SHIFT FORK

main33241-26010iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

main33244-20902iRN31,41..SR5197808-198312

main33245-35020iLN3#,4#..5F,5H197911-198403

main33245-35030iLN46..TW;LN46..T1..IV3;RN46..ARL..CBU;LN36,46..T1..GEN..CBU198103-198307

33243SHAFT, 1ST & 2ND SHIFT FORK

main33242-20042iRN31,41..SR5197808-198201

main33242-20060iRN31,41..SR5198201-198312

main33242-26010iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

main33242-35010iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198312

main33242-35020iLN30,40..5F..RCB198310-198403

sub33242-35023

sub90520-12003

33245SHAFT, 3RD & 4TH SHIFT FORK

main33243-20031iRN31,41..SR5197808-198312

main33243-26010iLN30,40,RN30,31,40,41..(4F,4H)..(ARL,GEN,ME,PHL,SA)197808-198403

W/O SHIFT POINT SENSOR

main33243-26010iRN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA197901-198307

main33243-26020iRN30,40..ARL197808-198307

W/SHIFT POINT SENSOR

main33243-26020iRN30,40..ARL197808-198307

NEW SOUTH WALES SPEC

main33243-26020iRN30..4H..RCB..CBU;RN40..4H..GEN..RCB197808-198202

HONG KONG SPEC

main33243-28010iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198102-198312

main33243-35030iLN30,40..5F,5H197911-198102

sub33243-28010

main33243-35040iLN30,40..5F..RCB198310-198403

sub33243-35043

sub90520-12003

33251LEVER, SHIFT & SELECT

main33251-22010iRN30,40..4F..EUR197808-198307

main33251-26010iRN30,31,40,41..4H197808-198312

main33251-30040iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN31,36,41..4F;RN30,40..4F..(GEN,ME,PHL,SA)197808-198403

main33251-35040iLN30,40..5H197911-198307

sub33251-26030

main33251-35050iLN46..TW;LN30,40..5F;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198312

main33251-35060iLN30,40..5F..RCB198310-198403

sub33251-35061

sub90109-08305

33253LEVER, SHIFT OUTER, NO.1

main33253-20030iRN30,40..4H197808-198312

main33253-35020iRN31,41..4H197808-198307

main33253-35050iLN30,40..5H197911-198307

33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33281-30010iRN30,31,40,41..4H197808-198312

sub33281-16020

main33282-57010iLN30,40..5H197911-198307

33257LEVER, SELECT OUTER

main33257-35020iRN30,31,40,41..4H198108-198312

main33257-35050iLN30,40..5H197911-198307

main33260-35010iRN30,31,40,41..4H197808-198108

33257PPIN, SELECT OUTER LEVER LOCK

main33282-35010iRN30,31,40,41..4H197808-198312

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main33264-30010iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

OD=6,L=16

main33264-31010iRN31,41..SR5197808-198307

main90360-10003iLN30,40..5F..RCB198310-198403

OD=9.52,STEEL,BALL

main90361-10001iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198312

L=32.9,OD=9.53

main90361-10002iLN30,40..5F..RCB198310-198403

L=21.6,PIN,PIN,L=21.6

main90361-10003iLN30,40..5F..RCB198310-198403

L=13.6,OD=9.5,PIN,L=13.6

main90361-10008iLN40..ECB197911-198312

L=14.9,OD=9.53

33265PIN, SHIFT INTERLOCK, NO.2

main33265-30010iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

L=28.8,OD=6.0

main90250-05010iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198312

main90250-05020iLN30,40..5F..RCB198310-198403

L=11.1,OD=4.8

33273WASHER, SHIFT LEVER SHAFT HOUSING, NO.1

main90201-15137iRN30,31,40,41..4H197808-198312

33274WASHER, SHIFT LEVER SHAFT HOUSING, NO.2

main90201-08019iLN30,40..5H197911-198307

main94612-11300iRN30,31,40,41..4H197808-198312

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main33275-10010iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

main90341-10004iRN31,41..SR5197808-198312

main90341-12003iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198312

main90341-12008iLN30,40..5F..RCB198310-198403

OD=18

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-10061iLN30,40..5F..RCB198310-198403

L=22.1,L=22.1

main90501-13001iRN31,41..SR5197808-198312

L=16.5

main90501-13006iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198102-198312

main90501-14047iLN30,40..5F,5H197911-198102

sub90501-13006

main90501-14061iLN30,40..5F..RCB198310-198403

L=18.3,L=18.3

sub90501-14123

main90501-14062iLN30,40..5F..RCB198310-198403

L=30.6,L=30.6

sub90501-14132

main90501-14638iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

L=15.2

33275BBALL, SHAFT DETENT

main90360-08009iRN31,41..SR5197808-198312

main90360-10003iLN30,40..5F,5H197808-198403

33276SEAT, SHIFT DETENT BALL SPRING, NO.2

main33275-10010iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

main90341-10064iRN31,41..SR5197808-198312

main90341-12003iLN3#,4#..5F,5H197911-198312

33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)

main90501-13001iRN31,41..SR5197808-198312

main90501-13006iLN40..ECB198102-198312

main90501-14047iLN30,40..5F,5H197911-198102

sub90501-13006

main90501-14638iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

33276BBALL, SHIFT DETENT, NO.2

main90360-08009iRN31,41..SR5197808-198312

main90360-10003iLN40..ECB197808-198403

33286PIN, SWITCH PRESSURE

main33286-26010iRN30..4H..RCB..CBU;RN40..4H..GEN..RCB197808-198202

HONG KONG SPEC

main33286-26010iRN30,40..4H..EUR197808-198307

W/SHIFT POINT SENSOR

main33286-26010iRN30,40..4H..EUR197808-198307

NEW SOUTH WALES SPEC

33293HOLDER, REVERSE RESTRICT BALL

main33276-10010iRN30,31,40,41..4H197808-198312

main33293-30010iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F197808-198403

33293BSPRING, COMPRESSION (FOR REVERSE RESTRICT BALL)

main90501-14007iRN30,31,40,41..4H197808-198312

main90501-16041iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F197808-198403

33293CBALL (FOR REVERSE RESTRICT)

main90360-10003iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

9020108065

main90201-08065

9020108136

main90201-08136

9161160820

main91611-60820

9161160832

main91611-60832

9411040600

main94110-40600

9411040800

main94110-40800

9451200600

main94512-00600

9451200800

main94512-00800
