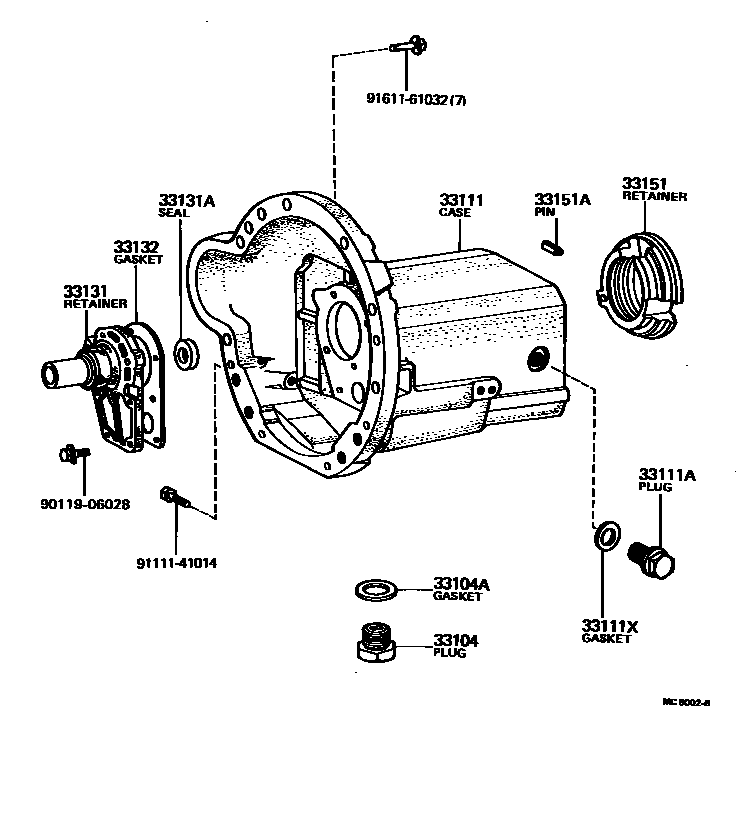

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18057iLN3#,4#,RN3#,4#197808-198403

33104AGASKET, DRAIN PLUG(MTM)

main12157-10010iLN3#,4#,RN3#,4#197808-198108

main90430-18007iLN3#,4#,RN3#,4#198108-198403

sub90430-18008

33111CASE, MANUAL TRANSMISSION

main33101-20010iRN31,41..SR5197808-197901

sub33101-20011

main33101-20011iRN31,41..SR5197901-198207

sub33101-30021

main33101-20012iRN31,41..SR5198207-198312

sub33101-20011

main33101-35010iLN30,40..5F..RCB198310-198403

sub33101-35050

main33111-26031iRN30,40..4F197812-198403

main33111-26040iRN30,40..4H197808-198312

main33111-35031iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN31,36,41..4F,4H197808-198403

main33111-35040iLN30,40..5F,5H197911-198008

sub33111-35041

sub33151-35011

sub33355-35011

sub90363-30026

sub91611-60825

main33111-35041iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198008-198211

sub33111-35042

sub33131-35022

sub33132-35022

sub90363-32019

main33111-35042iLN40..ECB198211-198312

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;RN3#,40,41..DLX,STD197808-198305

main90341-18006iRN31,41..SR5198210-198403

33111XGASKET, TRANSMISSION CASE PLUG

main12157-10010iLN3#,4#,RN3#,4#197808-198108

main90430-18007iLN3#,4#,RN3#,4#198108-198403

sub90430-18008

33131RETAINER, BEARING, FRONT(MTM)

main33131-20050iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN31,36,41..4F,4H197808-198403

main33131-26010iRN30,40197808-198403

main33131-28010iLN30,40..5F..RCB198310-198403

main33131-31010iRN31,41..SR5197808-198312

main33131-35021iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198211

main33131-35022iLN40..ECB198211-198312

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30115iLN40,RN41..ECB197808-198402

main90311-32106iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iLN30,40..5F..RCB198310-198403

main33132-30020iRN30,40197808-198403

main33132-30030iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN31,36,41..4F,4H197808-198403

main33132-35021iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198211

main33132-35022iLN40..ECB198211-198312

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-20010iRN31,41..SR5197808-198312

main33151-26010iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

main33151-28010iLN30,40..5F..RCB198310-198403

main33151-35010iLN30,40..5F,5H197911-198008

main33151-35011iLN40..ECB198008-198312

33151APIN, SLOTTED SPRING(FOR OUTPUT SHAFT REAR BEARING RETAINER)

main90254-05005iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

9011906028

main90119-06028

9111141014

main91111-41014

9161161032

main91611-61032

13 parts on this diagram · 6 diagrams in section
