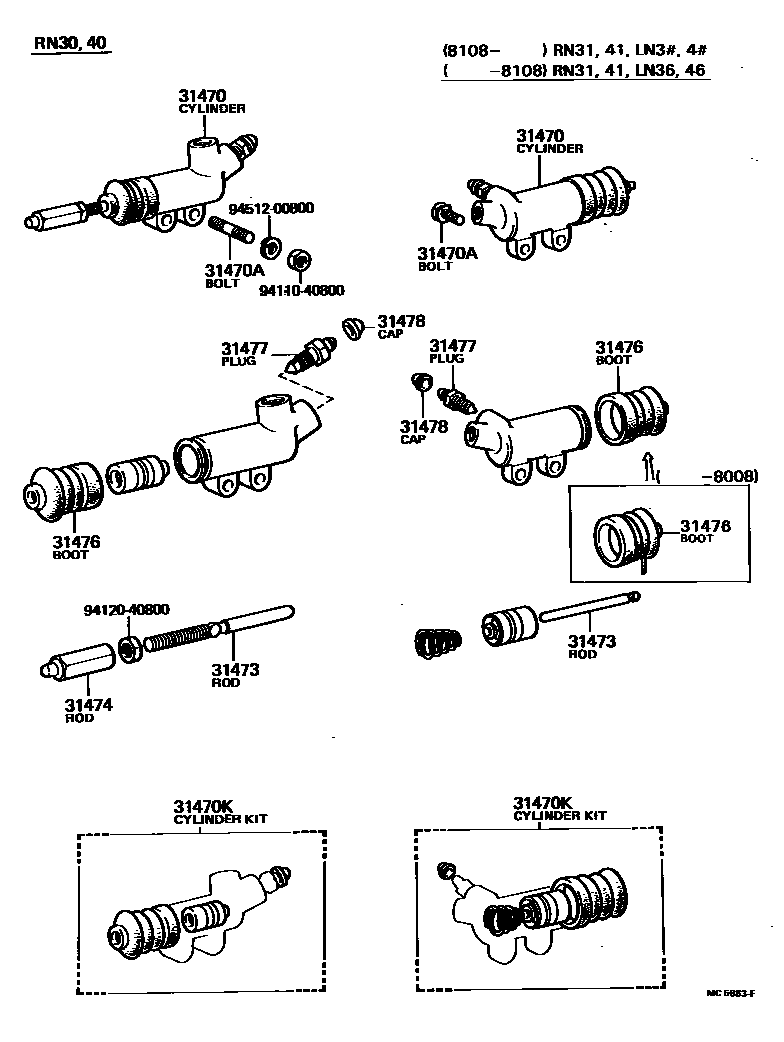

CLUTCH RELEASE CYLINDER

0001 1 0003 1

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-20091iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-198106

sub31470-26020

main31470-26020iRN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA198106-198307

main31470-26030iLN30,40198106-198108

main31470-30120iLN30,40197909-198106

sub31470-26030

main31470-30220iLN30,40..5F..RCB198310-198403

sub31470-30221

main31470-35030iRN30,40197808-198403

main31470-35040iRN31,41197808-198008

sub31470-35041

main31470-35050iRN31,41198008-198312

sub31470-30260

main31470-35060iLN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN)198103-198403

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90116-08018iRN30,40197808-198011

main90116-08043iRN30,40198011-198403

main91611-40825iLN3#,4#,RN31,36,41,46197808-198403

*8-1.25PX25-25

sub91611-B0825

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-22020iRN31,41198008-198403

sub04313-12030

main04313-25010iLN30,40,RN36;RN46..EUR,GEN;RN46..ARL..IV3198105-198307

main04313-30054iLN30,40,RN36;RN46..EUR,GEN;RN46..ARL..IV3197901-198105

main04313-30100iRN31,41197808-198008

main04313-35030iRN30,40197808-198403

main04313-35040iLN36,46;RN46..ARL..CBU198103-198403

sub04313-36140

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20030iRN31,41197808-198008

main31473-22010iRN31,41198008-198403

main31473-25010iLN30,40,RN36;RN46..EUR,GEN;RN46..ARL..IV3198105-198307

main31473-30021iLN30,40,RN36;RN46..EUR,GEN;RN46..ARL..IV3197901-198105

main31473-35030iRN30,40197808-198403

main31473-35040iLN40..ECB;LN30,40..4F198103-198403

31474ROD, CLUTCH RELEASE CYLINDER PUSH, NO.2

main31475-35010iRN30,40197808-198403

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-20040iLN30,40,RN36;RN46..EUR,GEN;RN46..ARL..IV3197901-198105

main31476-22010iLN46..TW;LN36,RN31,41;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN)198008-198403

main31476-30040iRN31,41197808-198008

main31476-35020iRN30,40197808-198403

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iLN3#,4#,RN3#,4#197808-198403

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iLN3#,4#,RN3#,4#197808-198403

9411040800

main94110-40800

9412040800

main94120-40800

9451200800

main94512-00800

11 parts on this diagram · 2 diagrams in section
