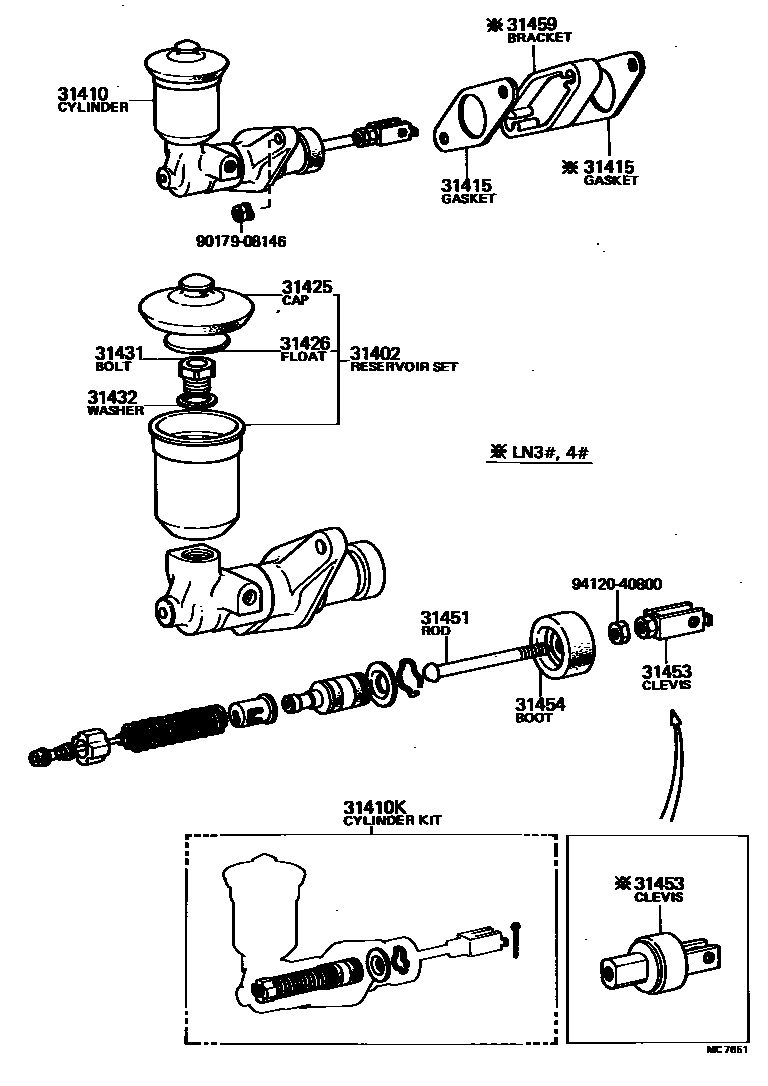

CLUTCH MASTER CYLINDER

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-30030iLN3#,4#,RN3#,4#198101-198403

main47202-12010iRN3#,40,41;RN46..EUR,GEN;RN46..ARL..IV3197808-198101

sub47202-12050

main47202-12050iLN30,40197909-198101

31410CYLINDER ASSY, CLUTCH MASTER

main31410-24011iLN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN)198103-198207

sub31410-24H00

main31410-24012iLN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN)198207-198403

sub31410-22140

main31410-30110iLN30,40197909-198101

sub31410-35110

main31410-35090iRN3#,40,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA197808-198403

sub31410-35091

main31410-35110iLN30,40198101-198103

sub31410-35220

31410KCYLINDER KIT, CLUTCH MASTER

main04311-14010iRN3#,40,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA197808-198212

sub04311-14011

main04311-14011iRN3#,40,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA198212-198403

sub04311-14012

main04311-20050iLN3#,4#;RN46..ARL..CBU198103-198108

sub04311-14011

main04311-30080iLN30,40197909-198403

sub04311-14020

31415GASKET, CLUTCH MASTER CYLINDER

main31415-30030iRN3#,40,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA197808-198403

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31440-35010iRN3#,40,41;RN46..EUR,GEN;RN46..ARL..IV3197905-198101

sub47230-20040

main47230-12011iRN3#,40,41;RN46..EUR,GEN;RN46..ARL..IV3197808-197905

sub31440-35010

main47230-20040iLN30,40197909-198403

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iLN3#,4#,RN3#,4#197808-198403

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iLN3#,4#,RN3#,4#197808-198403

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iLN3#,4#,RN3#,4#197808-198403

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-12010iRN3#,40,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA197808-198403

main31451-30060iLN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN)197909-198403

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-30040iLN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN)197909-198207

main31404-30041iLN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN)198207-198403

main31453-22010iRN3#,40,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA197808-198403

sub31453-35010

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iRN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41197808-198403

main31454-24010iLN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN)198103-198403

31459BRACKET, CLUTCH MASTER CYLINDER

main31459-35010iLN30,40197909-198103

9017908146

main90179-08146

9412040800

main94120-40800

14 parts on this diagram · 1 diagram in section
