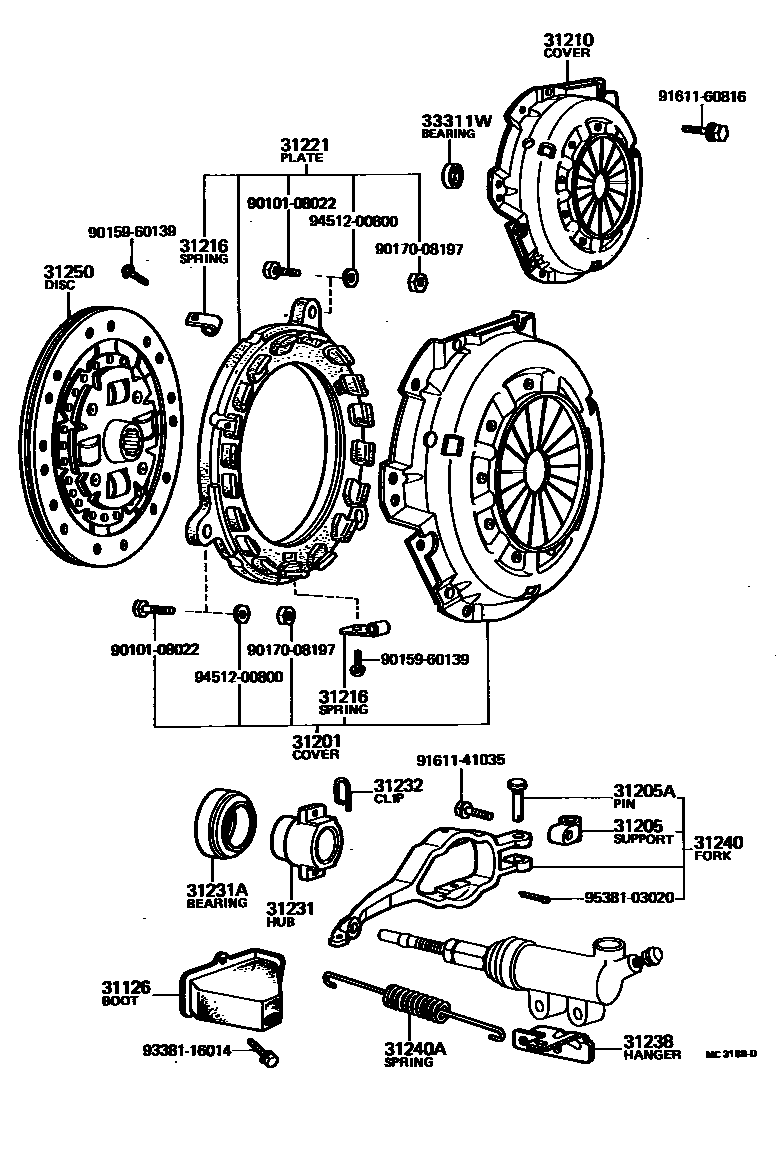

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20050iRN46..ARL..IV3;LN30,40,RN36..4F;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA197901-198403

main31126-20060iRN31,41197808-198312

main31126-20070iLN30,40..5F..RCB198310-198403

main31126-25021iLN40..ECB197911-198312

main31126-26010iRN30,40197808-198403

31201COVER SUB-ASSY, CLUTCH

main31201-29075iRN31,36,41;RN46..EUR,GEN;RN46..ARL..IV3197808-197908

sub31201-29076

main31201-29076iRN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN31,36,41197908-198010

sub31201-29085

main31201-29085iLN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN)198008-198403

sub31201-26010

main31201-39045iRN30,40197808-197908

sub31201-39046

main31201-39046iRN30,40197908-198004

sub31201-39047

main31201-39047iRN30,40198004-198403

31205SUPPORT SUB-ASSY, RELEASE FORK

main31205-30010iRN30,40197808-198403

31205APIN, W/SERRATION(FOR RELEASE FORK SUPPORT)

main90245-10072iRN30,40197808-198403

31210COVER ASSY, CLUTCH

main31210-20130iRN31,36,41;RN46..EUR,GEN;RN46..ARL..IV3197808-197908

sub31210-20131

main31210-20131iRN31,36,41;RN46..EUR,GEN;RN46..ARL..IV3197908-198008

sub31210-26040

main31210-26040iRN31,36,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA198008-198312

sub31210-26041

main31210-35040iRN30,40197808-197908

sub31210-35041

main31210-35041iRN30,40197908-198004

sub31210-35042

main31210-35042iRN30,40198004-198403

sub31210-22120

main31210-36028iLN30,40197909-198010

sub31210-36029

main31210-36029iLN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN)198010-198403

sub31210-36200

31216SPRING, CLUTCH RETRACTING

main31216-30010iLN3#,4#,RN3#,4#197808-198403

31221PLATE, CLUTCH PRESSURE

main31221-29025iRN31,36,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA197808-198312

main31221-39045iRN30,40197808-198403

sub31221-35020

main31221-39056iLN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN)197909-198403

sub31221-36025

31231HUB, CLUTCH RELEASE BEARING

main31231-20030iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-197903

sub31231-20031

main31231-20031iRN36;RN46..EUR,GEN;RN46..ARL..IV3197903-198009

main31231-20052iLN30,40197909-198009

main31231-20070iRN31,41197808-197903

sub31231-20071

main31231-20071iRN31,41197903-198008

main31231-20090iLN30,40..5F..RCB198008-198403

main31231-26010iRN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA198009-198307

main31231-30080iLN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN)198009-198403

main31231-35020iRN30,40197808-197903

sub31231-35021

main31231-35021iRN30,40197903-198009

main31231-35022iRN30,40198009-198403

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40001iRN31,41197808-198002

sub90363-40008

main90363-40003iRN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN30,36,40197808-198002

sub90363-40010

main90363-40008iRN31,41198002-198008

main90363-40010iRN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN30,36,40198002-198009

main90363-40015iRN31,41198008-198012

sub90363-40022

main90363-40019iRN30,36,40;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA198009-198211

sub90363-40022

main90363-40022iLN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN3#,40,RN31,41;LN46..T1..(EUR,GEN)198012-198403

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-20010iRN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA198009-198307

main31232-22010iRN31,41197808-198403

main31232-30010iRN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN30,36,40197808-198009

main31232-30020iLN40..ECB;LN30,40,RN30,40..4F,4H198009-198403

31238HANGER, RELEASE FORK RETRACTING SPRING

main31238-26010iRN30,40197808-198403

31240FORK ASSY, CLUTCH RELEASE

main31204-20020iLN30,40,RN36;RN46..EUR,GEN;RN46..ARL..IV3197901-198009

sub31204-26010

main31204-20050iRN31,41197808-198008

main31204-20070iRN31,41198008-198312

sub31204-20072

main31204-20090iLN30,40..5F..RCB198310-198403

main31204-26010iLN3#,4#,RN36,46198009-198403

main31240-35011iRN30,40197808-198009

main31240-35012iRN30,40198009-198403

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-16004iLN3#,4#,RN36,46197901-198307

main90506-16282iRN30,40197808-198403

31250DISC ASSY, CLUTCH

main31250-22101iLN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN)198105-198403

sub31250-22102

main31250-25061iLN30,40197909-198002

sub31250-25062

main31250-25062iLN30,40198002-198006

sub31250-25063

main31250-25063iLN30,40198006-198103

sub31250-35080

main31250-28011iRN30,40197808-197908

sub31250-25100

main31250-35050iRN31,36,41;RN46..EUR,GEN;RN46..ARL..IV3197808-197902

sub31250-35051

main31250-35051iRN31,36,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA197902-198312

sub31250-35052

main31250-35060iRN30,40197908-198012

sub31250-35061

main31250-35061iRN30,40198012-198403

sub31250-35062

main31250-35080iLN3#,4#198103-198105

sub31250-22101

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLN3#,4#,RN3#,4#198011-198403

sub90363-12024

main97143-06201iRN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41197808-198011

sub90363-12002

9010108022

main90101-08022

9015960139

main90159-60139

9017008197

main90170-08197

9161141035

main91611-41035

9161160816

main91611-60816

9338116014

main93381-16014

9451200800

main94512-00800

9538103020

main95381-03020

23 parts on this diagram · 3 diagrams in section
