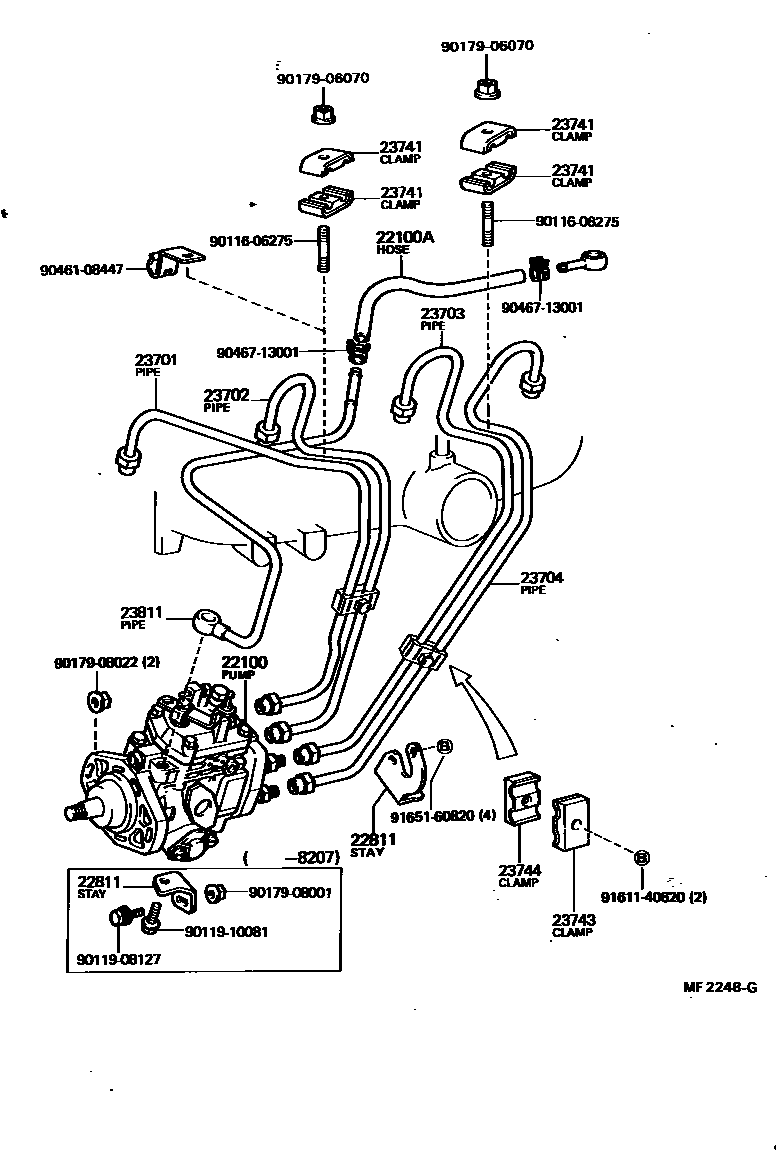

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-54060iL..LN30,40197909-198101

main22100-54100iL..LN30,40..LHD..GEN197909-198101

HIGH ALTITUDE SPEC

main22100-54130iL..LN3#,4#..ARL,EUR,GEN198101-198108

sub22100-54131

sub23811-54051

sub23811-54061

main22100-54131iL..LN30,40..STD..(ARL,EUR,GEN)198108-198403

sub22100-54132

sub90099-05166

main22100-54140iL..LN30,40..LHD..GEN198101-198108

HIGH ALTITUDE SPEC

sub22100-54141

sub23811-54051

sub23811-54061

main22100-54141iL..LN30,40..SA198108-198311

sub22100-54142

main22100-54141iL..LN3#,4#..GEN198108-198311

HIGH ALTITUDE SPEC

sub22100-54142

main22100-54142iL..LN30,40..ECB198311-198312

sub22100-54143

sub90099-05166

main22100-54142iL..LN30,40..STD..RCB198311-198403

HIGH ALTITUDE SPEC

sub22100-54143

sub90099-05166

main22100-54230iL..LN40..ARL198108-198307

W/TACHO METER

sub22100-54231

sub90099-05166

main22100-54230iL..LN40..SR5198301-198403

sub22100-54231

sub90099-05166

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main95332-08040iL..LN3#,4#197909-198403

L=400(*H,L=320)

sub95333-08040

22811STAY, INJECTION PUMP, NO.1

main22811-54020iL..LN30,40197909-198101

main22811-54030iL..LN3#,4#198101-198207

main22811-54040iL..LN3#,4#198207-198308

sub22811-54041

main22811-54051iL..LN30,40198308-198403

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54030iL..LN30,40197909-198101

main23701-54051iL..LN3#,4#198101-198311

main23701-54082iL..LN30,40198311-198403

sub23701-54072

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54030iL..LN30,40197909-198101

main23702-54050iL..LN3#,4#198101-198311

main23702-54081iL..LN30,40198311-198403

sub23702-54071

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54030iL..LN30,40197909-198101

main23703-54050iL..LN3#,4#198101-198403

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54030iL..LN30,40197909-198101

main23704-54050iL..LN3#,4#198101-198403

23741CLAMP, INJECTION PIPE, NO.1

main23741-56010iL..LN3#,4#197909-198403

23743CLAMP, INJECTION PIPE, NO.3

main23741-54010iL..LN3#,4#197909-198403

23744CLAMP, INJECTION PIPE, NO.4

main23742-54010iL..LN3#,4#197909-198403

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-54040iL..LN30,40197909-198101

sub23811-54050

main23811-54050iL..LN3#,4#198101-198108

main23811-54051iL..LN3#,4#198108-198403

9011606275

main90116-06275

9011908127

main90119-08127

9011910081

main90119-10081

9017906070

main90179-06070

9017908001

main90179-08001

9017908022

main90179-08022

9046108447

main90461-08447

9046713001

main90467-13001

9161140620

main91611-40620

9165160820

main91651-60820

21 parts on this diagram · 1 diagram in section
