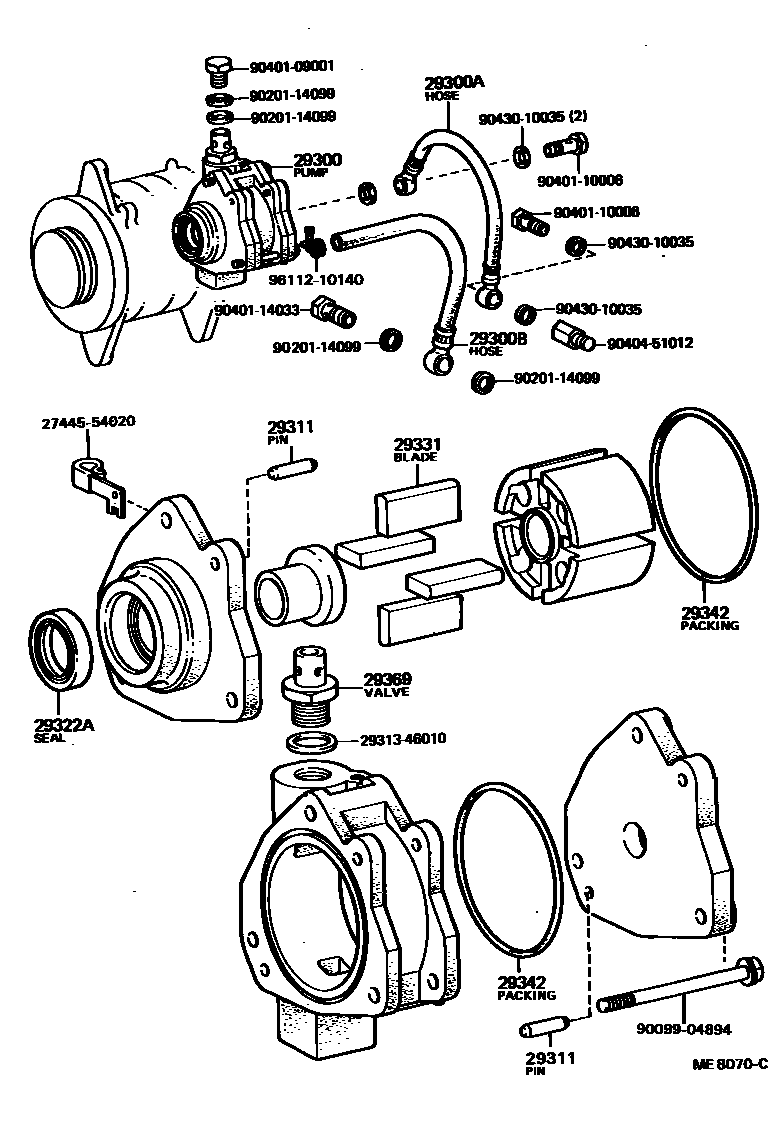

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-54021iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;18R..RN46..ARL..CBU;L..LN46..T1..(EUR,GEN)197909-198403

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02056iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;18R..RN46..ARL..CBU;L..LN46..T1..(EUR,GEN)197909-198403

L=120

29300BHOSE, VACUUM PUMP OIL OUTLET

main90923-02052iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;18R..RN46..ARL..CBU;L..LN46..T1..(EUR,GEN)197909-198403

L=170

29311PIN, VACUUM PUMP DOWEL, NO.1

main90099-08082iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;18R..RN46..ARL..CBU;L..LN46..T1..(EUR,GEN)197909-198403

29322ASEAL, VACUUM PUMP OIL

main90099-15017iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;18R..RN46..ARL..CBU;L..LN46..T1..(EUR,GEN)197909-198403

29331BLADE, VACUUM PUMP, A

main29331-56010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;18R..RN46..ARL..CBU;L..LN46..T1..(EUR,GEN)197909-198403

29342PACKING, VACUUM PUMP

main96740-02063iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;18R..RN46..ARL..CBU;L..LN46..T1..(EUR,GEN)197909-198403

29369VALVE SUB-ASSY, CHECK

main29369-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;18R..RN46..ARL..CBU;L..LN46..T1..(EUR,GEN)197909-198304

main29369-68030iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;18R..RN46..ARL..CBU;L..LN46..T1..(EUR,GEN)198304-198403

2744554020

main27445-54020

2931346010

main29313-46010

9009904894

main90099-04894

9020114099

main90201-14099

9040109001

main90401-09001

9040110006

main90401-10006

9040114033

main90401-14033

9040451012

main90404-51012

9043010035

main90430-10035

9611210140

main96112-10140

18 parts on this diagram · 1 diagram in section
