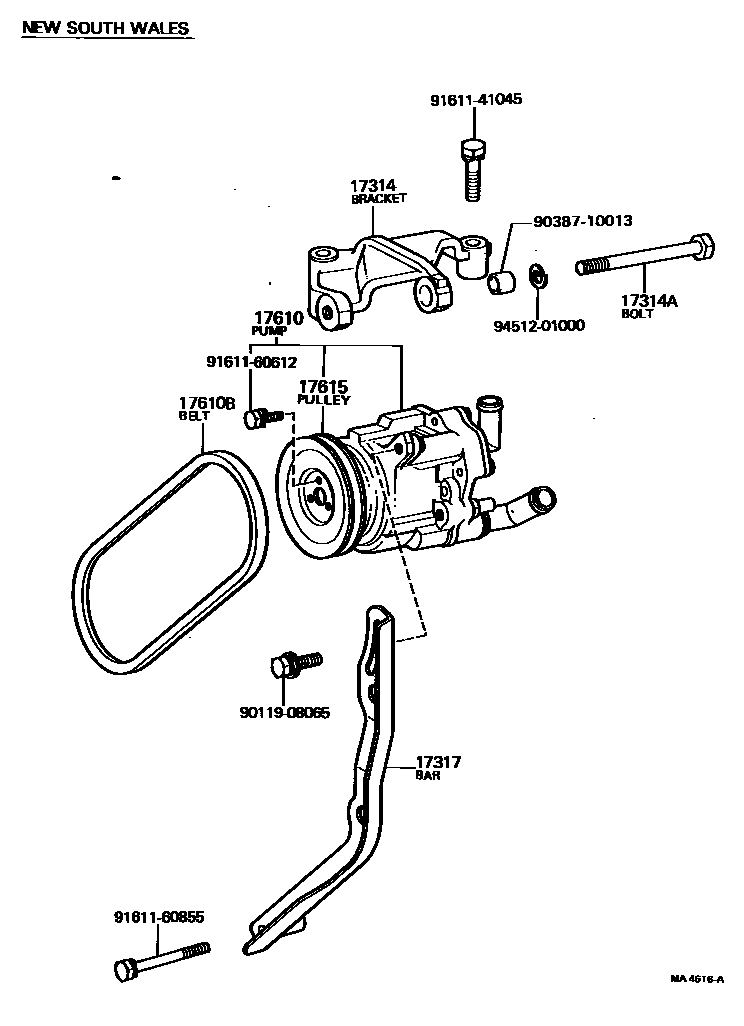

AIR PUMP

0001 1 0002 1

17314BRACKET, AIR PUMP

main17314-31010i12R..RN30,40..ARL197808-198307

NEW SOUTH WALES

main17314-34020iL..LN46..T1..ARL..CBU197808-198307

17314ABOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING)

main90101-10080iL..LN46..T1..ARL..CBU197808-198307

main91121-51090i12R..RN30,40..ARL197808-198307

NEW SOUTH WALES

17317BAR, AIR PUMP ADJUSTING, NO.1

main17031-31010i12R..RN30,40..ARL197808-198307

NEW SOUTH WALES

main17317-34020iL..LN46..T1..ARL..CBU197808-198307

17610PUMP ASSY, AIR

main17610-31030i12R..RN30,40..ARL197808-198307

NEW SOUTH WALES

main17610-34020i18R..RN31,36,41,46197808-197908

sub17610-34050

main17610-34050iL..LN46..T1..ARL..CBU197908-198307

17610BBELT, V(FOR AIR PUMP)

main99321-00770i12R..RN30,40..ARL197904-198307

NEW SOUTH WALES

main99321-50780iL..LN46..T1..ARL..CBU198001-198307

main99521-10770i12R..RN30,40..ARL197808-197904

NEW SOUTH WALES

sub99321-00770

main99521-10780i18R..RN31,36,41,46197808-198001

sub99321-50780

17615PULLEY(FOR AIR PUMP)

main17615-31010i12R..RN30,40..ARL197808-198307

NEW SOUTH WALES

main17615-34010i18R..RN46..ARL..IV3;18R..RN31,36,41..T1..ARL197808-198307

9011908065

main90119-08065

9038710013

main90387-10013

9161141045

main91611-41045

9161160612

main91611-60612

9161160855

main91611-60855

9451201000

main94512-01000

12 parts on this diagram · 2 diagrams in section
