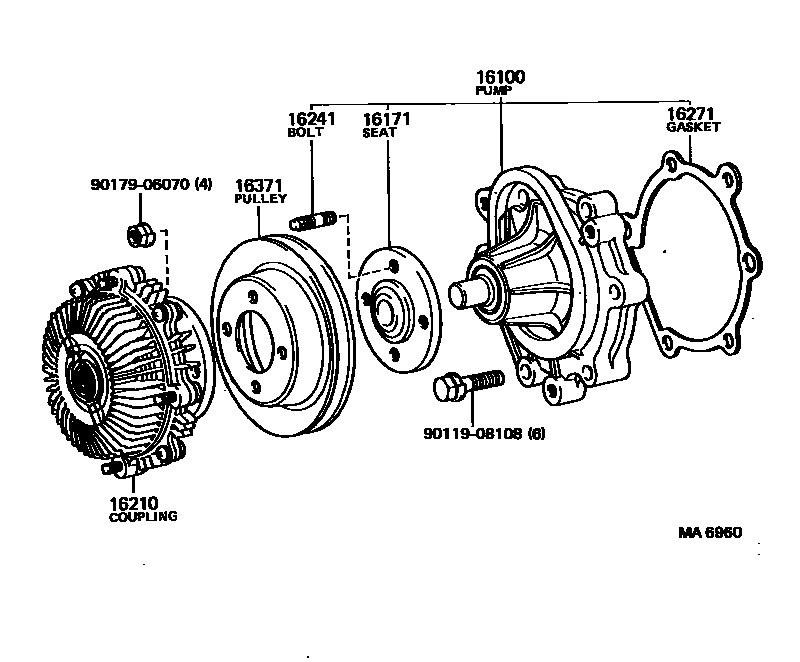

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0008 1 0010 1

16100PUMP ASSY, ENGINE WATER

main16100-39116i12R#..RN30,40197808-198403

main16100-39215i18R..RN36,46..RHD..GEN197904-198010

HONG KONG SPEC

sub16100-39216

main16100-39215i18R..RN36,46..ARL197901-198307

sub16100-39216

main16100-39236i18R..RN36,46..EUR198010-198307

sub16100-39237

main16100-39236i18R..RN36,46..RHD..GEN198010-198202

HONG KONG SPEC

sub16100-39237

main16100-39245i18R..RN36..ARL;18R..RN46..ARL..IV3197808-198307

sub16100-39246

main16100-39275i18R..RN31,36,41,46..GEN,ME,SA197808-198312

sub16100-39276

main16100-39285i12R..RN30,40..EUR198204-198307

main16100-39295i18R..RN31,41..ARL197909-198307

sub16100-39296

main16100-39305i12R..RN30,40..ARL,SA198008-198312

main16100-59047iL..LN30,40197909-198008

sub16100-59049

main16100-59049iL..LN3#,4#198008-198105

sub16100-59125

main16100-59125iL..LN3#,4#198105-198108

sub16100-59215

main16100-59126iL..LN3#,4#198108-198210

sub16100-59127

main16100-59127iL..LN3#,4#198210-198403

sub16100-59128

16171SEAT, WATER PUMP PULLEY

main16171-24030iL..LN46..T1..ARL..CBU198010-198202

HONG KONG SPEC

main16171-24030i18R..RN31,41..ARL197909-198307

main16171-24031i12R#..RN30,40197808-198403

main16171-54010iL..LN3#,4#197909-198108

main16171-54011i18R..RN46..ARL..CBU198108-198403

16210COUPLING ASSY, FLUID

main16210-31010i12R..RN30,40..EUR198204-198307

main16210-34090i18R..RN36,46..ARL,EUR197808-198312

main16210-34090i18R..RN36,46..RHD197904-198010

HONG KONG SPEC

main16210-34102iL..LN46..T1..ARL..CBU198010-198202

HONG KONG SPEC

main16210-34102i18R..RN36,46..EUR198010-198307

main16210-34130i18R..RN31,41..ARL197909-198307

main16210-54040iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16193-13020i18R..RN46..ARL..CBU198208-198403

main16193-33030iL..LN46..T1..ARL..CBU198010-198202

HONG KONG SPEC

main16193-33030i18R..RN31,41..ARL197909-198307

main16193-54010i18R..RN46..ARL..CBU197909-198307

main16241-40030i18R..RN46..ARL..IV3;18R..RN46..GEN,ME,SA;18R..RN36..ARL,GEN,ME197808-198312

16271GASKET, WATER PUMP

main16271-31010i12R#..RN30,40197808-198403

main16271-33010iL..LN46..T1..ARL..CBU197808-198312

sub16271-33011

main16271-54010iL..LN30,40197909-198008

sub16271-54011

main16271-54011iL..LN3#,4#198008-198105

sub16271-54012

main16271-54012iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198105-198403

sub16271-54013

16371PULLEY, FAN

main16173-34100i18R..RN36..RHD;18R..RN46..ARL..IV3;18R..RN46..RHD..(EUR,GEN,SA)198010-198202

HONG KONG SPEC

main16173-34100i18R..RN31,41..ARL197909-198307

main16308-31010i12R..RN30,40..ARL197808-198307

NEW SOUTH WALES

main16371-31022i12R#..RN30,40..ARL,GEN,ME,PHL,SA197808-198403

main16371-31030i12R..RN30,40..EUR198204-198307

main16371-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

9011908108

main90119-08108

9017906070

main90179-06070

8 parts on this diagram · 6 diagrams in section
