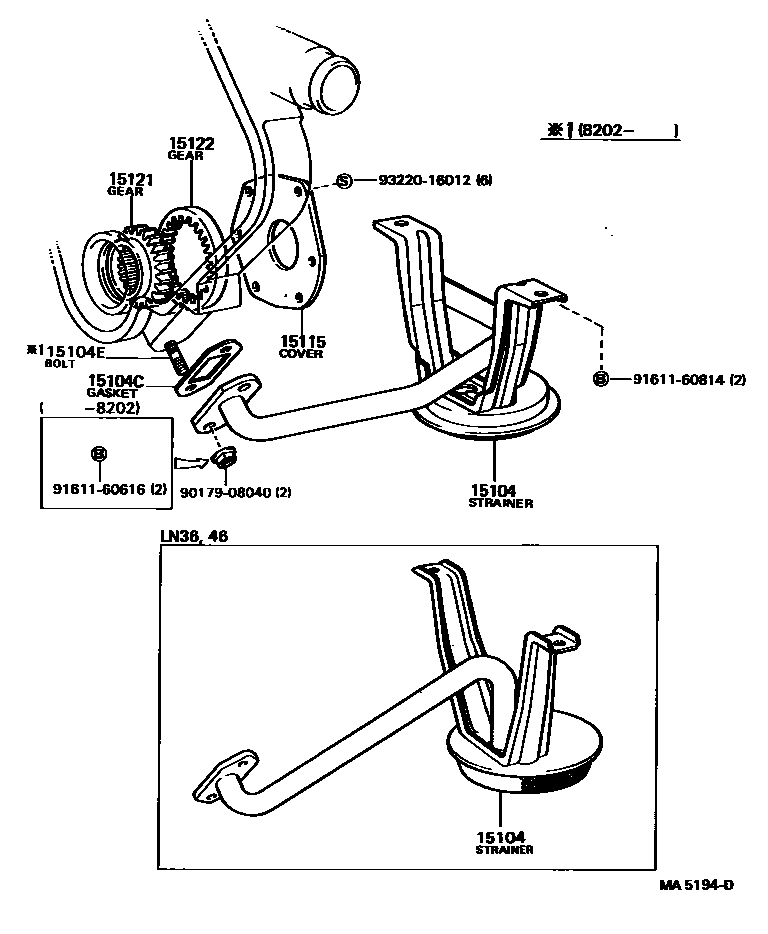

ENGINE OIL PUMP

0001 1 0002 1 0003 1

15104STRAINER SUB-ASSY, OIL

main15104-33011i18R..RN31,41197808-198312

sub15104-33010

main15104-34010iL..LN46..T1..ARL..CBU197901-198307

main15104-54040iL..LN30,40197909-198111

sub15104-54041

main15104-54041iL..LN30,40198111-198202

main15104-54042iL..LN30,40198202-198308

sub15104-54043

main15104-54043iL..LN30,40198308-198403

sub15104-54044

main15104-54050i18R..RN46..ARL..CBU198103-198202

main15104-54051i18R..RN46..ARL..CBU198202-198307

sub15104-54052

15104CGASKET(FOR OIL STRAINER)

main15149-54010i18R..RN46..ARL..CBU197909-198202

sub15149-54020

main15149-54011iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198202-198403

sub15149-54012

15104EBOLT, STUD(FOR OIL STRAINER)

main92122-40816iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198202-198403

15115COVER, OIL PUMP

main15012-31040i12R#..RN30,40197808-198403

main15115-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198202

main15115-54011iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198202-198403

sub15115-54012

15121GEAR, OIL PUMP DRIVE

main15121-38020iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198202

main15121-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198202-198403

15122GEAR, OIL PUMP DRIVEN

main15122-38020iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198202

N=31

main15122-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198202-198403

N=31

9017908040

main90179-08040

9161160616

main91611-60616

9161160814

main91611-60814

9322016012

main93220-16012

10 parts on this diagram · 3 diagrams in section
