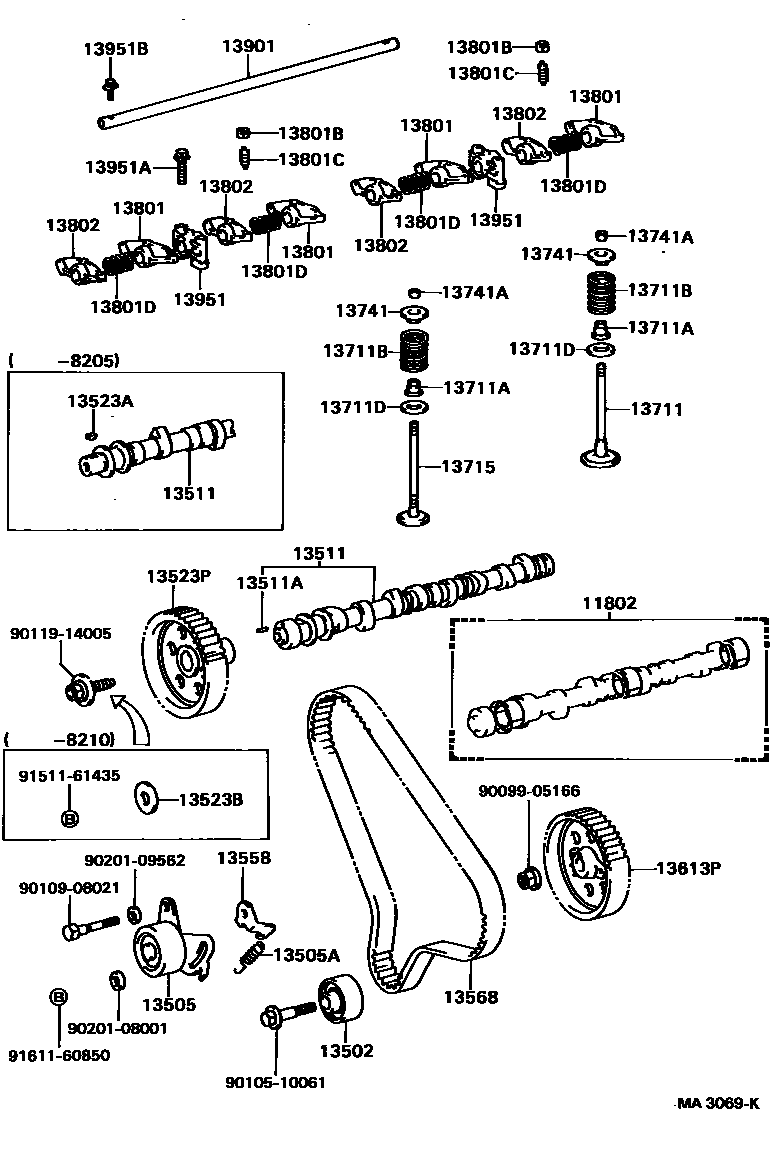

CAMSHAFT & VALVE

0001 1 0002 1 0003 1 0004 1

11802BEARING SET, CAMSHAFT

main11802-31010i12R#..RN30,40197808-198403

STD

main11802-33010i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

STD

main11802-33010i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

STD,STD

main11802-54010i18R..RN46..ARL..CBU197909-198403

STD,STD

main11802-54010i18R..RN46..ARL..CBU197909-198403

STD

main11803-54010i18R..RN46..ARL..CBU197909-198403

U/S 0.125,U/S 0.125

main11803-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

U/S 0.125

main11804-31010i12R#..RN30,40197808-198403

U/S 0.25

main11804-33010iL..LN46..T1..ARL..CBU197808-198312

U/S 0.25

main11804-33010iL..LN46..T1..ARL..CBU197808-198312

U/S 0.25,U/S 0.125

main11804-54010i18R..RN46..ARL..CBU197909-198403

U/S 0.25

main11804-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

U/S 0.25,U/S 0.250

main11805-31010i12R#..RN30,40197808-198403

U/S 0.50

main11805-33010iL..LN46..T1..ARL..CBU197808-198312

U/S 0.50

main11805-33010iL..LN46..T1..ARL..CBU197808-198312

U/S 0.50,U/S 0.250

13502IDLER SUB-ASSY, TIMING BELT, NO.2

main13503-54010iL..LN3#,4#198205-198403

sub13503-54020

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-54010iL..LN3#,4#197909-198403

13505ASPRING, TENSION(FOR IDLER)

main90506-12001iL..LN30,40197909-198101

sub90506-14038

main90506-14038iL..LN3#,4#198101-198403

13511CAMSHAFT

main13501-54020iL..LN30,40198308-198403

main13501-54030iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198205-198308

main13511-31020i12R..RN30,40197808-198403

sub13511-31900

main13511-33905i18R..RN31,36,41,46197808-197907

sub13511-33906

main13511-33906iL..LN46..T1..ARL..CBU197907-198312

main13511-54010i18R..RN46..ARL..CBU197909-198205

sub13501-54H00

13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)

main90250-05121iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198205-198403

L=15,OD=5

main90250-08074iL..LN46..T1..ARL..CBU197808-198312

L=15,OD=8

main90250-08074iL..LN46..T1..ARL..CBU197808-198312

L=15,OD=8,L=15,OD=8

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-31011i12R#..RN30,40197808-198403

N=50

main13523-33010i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

N=24

13523AKEY, WOODRUFF(FOR TIMING GEAR)

main90280-05008iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198205

main95161-10519i12R#..RN30,40197808-198403

13523BWASHER, PLATE(FOR TIMING GEAR)

main90201-08120i12R#..RN30,40197808-198403

main90201-14007iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198210

sub90201-14030

13523PPULLEY, CAMSHAFT TIMING

main13523-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198205

N=42

main13523-54020iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198205-198403

N=42

13558BRACKET, SPRING(FOR IDLER)

main13558-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

13568BELT, TIMING

main13568-59015iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198205

sub13568-59016

main13568-59025iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198205-198403

sub13568-59026

13613PPULLEY, INJECTION PUMP DRIVE

main13613-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198205

N=42

sub13613-54030

main13613-54020iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198205-198403

sub13603-54020

13711VALVE, INTAKE

main13711-31050i12R#..RN30,40197808-198403

main13711-36021i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

main13711-54010i18R..RN46..ARL..CBU197909-198403

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02016i18R..RN31,36,41,46197808-198007

sub90913-02054

main90913-02033i12R#..RN30,40197808-198403

main90913-02036iL..LN3#,4#197909-198107

main90913-02054i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA198007-198312

main90913-02060iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198107-198403

sub90913-02059

13711BSPRING, COMPRESSION(FOR INNER)

main90501-26398iL..LN46..T1..ARL..CBU197808-198312

WD=2.6,CW=7.5

main90501-44002i18R..RN46..ARL..CBU197909-198403

WD=4.35,CW=6.25

main90501-45005i12R#..RN30,40197808-198403

WD=4.5,CW=6.25

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90201-13308i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

sub90201-13366

main90201-15387i12R#..RN30,40197808-198403

main90201-20579i18R..RN46..ARL..CBU197909-198403

13715VALVE, EXHAUST

main13715-31070i12R#..RN30,40197808-198403

main13715-34013iL..LN46..T1..ARL..CBU198007-198312

main13715-34022i18R..RN31,36,41,46197808-198007

main13715-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

13741RETAINER, VALVE SPRING

main13741-25012i12R#..RN30,40197808-198403

main13741-33010i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

main13741-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

13741ALOCK, VALVE SPRING RETAINER

main90913-03005iL..LN46..T1..ARL..CBU197808-198312

main90913-03014i12R#..RN30,40197808-198403

main90913-03016iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-54010iL..LN3#,4#197909-198106

sub13801-54011

main13801-54011i18R..RN46..ARL..CBU198106-198207

main13801-54012iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198207-198308

main13801-54020iL..LN30,40198308-198403

sub13801-54021

main13811-31022i12R#..RN30,40197808-198403

main13811-33014iL..LN46..T1..ARL..CBU197808-198203

sub13811-33020

main13811-33020i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA198203-198312

13801BNUT, HEXAGON(FOR VALVE ADJUSTING)

main90170-08094i12R#..RN30,40197808-198403

sub90170-08005

main90170-08210iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

sub90170-08005

main90170-10116iL..LN46..T1..ARL..CBU197808-198312

13801CSCREW, VALVE ADJUSTING

main90913-05011iL..LN46..T1..ARL..CBU197808-198312

main90913-05013i12R#..RN30,40197808-198205

sub90913-05020

main90913-05016iL..LN30,40197909-198102

sub90913-05019

main90913-05019iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198102-198403

main90913-05020i12R#..RN30,40198205-198403

13801DSPRING, COMPRESSION(FOR ROCKER ARM)

main90501-16098i12R#..RN30,40197808-198403

WD=1.6,CW=9

main90501-16163iL..LN3#,4#197808-198403

WD=1.6,CW=7.5

13802ARM SUB-ASSY, VALVE ROCKER, NO.2

main13802-54010iL..LN3#,4#197909-198106

sub13802-54011

main13802-54011iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198106-198308

main13802-54020iL..LN30,40198308-198403

sub13802-54021

main13812-31022i12R#..RN30,40197808-198403

main13812-33014iL..LN46..T1..ARL..CBU197808-198203

sub13812-33020

main13812-33020i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA198203-198312

13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1

main13901-31020i12R#..RN30,40197808-198403

main13901-33011iL..LN46..T1..ARL..CBU197808-198312

main13901-54010i18R..RN46..ARL..CBU197909-198403

13951SUPPORT, VALVE ROCKER, NO.1

main13951-31020i12R#..RN30,40197808-198403

main13951-36010iL..LN46..T1..ARL..CBU197808-198312

main13951-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198308

main13951-54020iL..LN30,40198308-198403

13951ABOLT(FOR ROCKER SUPPORT SET)

main90105-08016i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

*8-1.25PX65-16

main90119-08191iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

*8-1.25PX55-30

main90910-01007i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

*8-1.25PX75-16

main90910-01010i12R#..RN30,40197808-198403

*8-1.25PX69.5-16

13951BSCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)

main90151-40010i18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41;18R..RN46..EUR,GEN,ME,SA197808-198403

main91611-60614i18R..RN46..ARL..CBU197909-198207

sub91611-B0614

main91611-60620iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198207-198403

9009905166

main90099-05166

9010510061

main90105-10061

9010908021

main90109-08021

9011914005

main90119-14005

9020108001

main90201-08001

9020109562

main90201-09562

9151161435

main91511-61435

9161160850

main91611-60850

37 parts on this diagram · 4 diagrams in section
