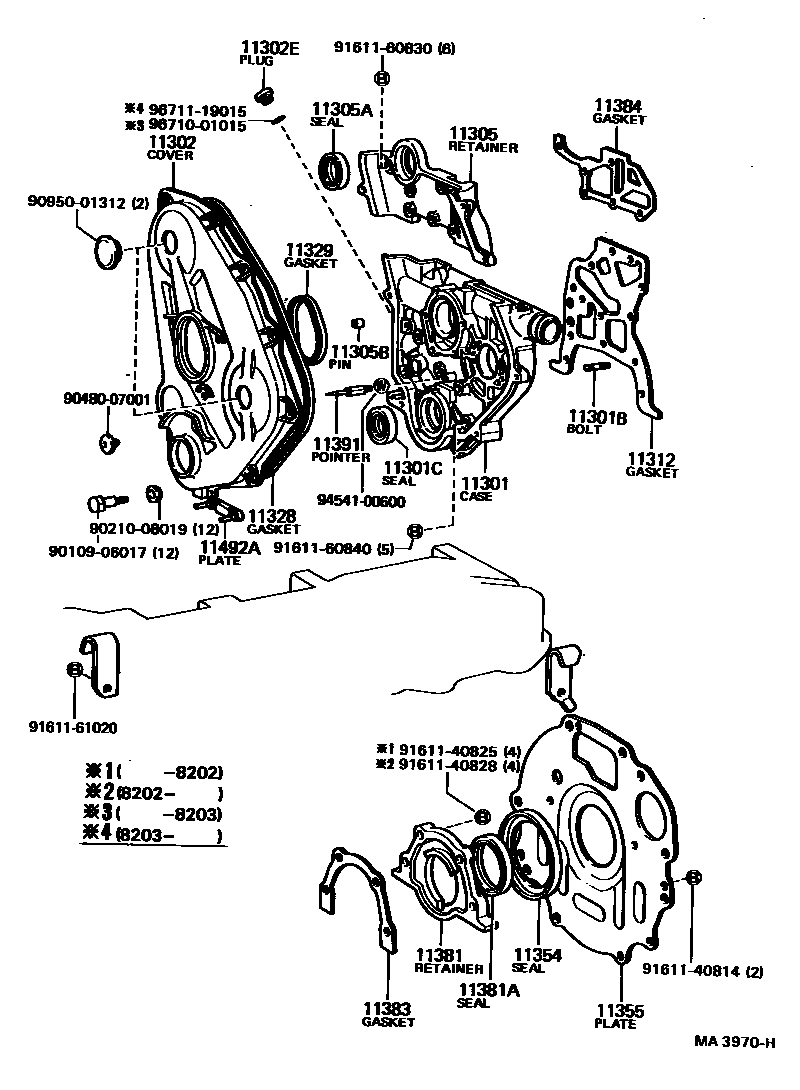

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11301CASE SUB-ASSY, TIMING GEAR

main11311-54010iL..LN30,40197909-198008

main11311-54020iL..LN3#,4#198008-198105

sub11320-54030

sub15104-54022

sub15104-54032

sub15104-54042

sub15104-54051

sub15149-54011

sub90179-08040

sub92122-40816

main11311-54021i18R..RN46..ARL..CBU198105-198202

sub11320-54022

sub15104-54022

sub15104-54032

sub15104-54042

sub15104-54051

sub15149-54011

sub90179-08040

sub92122-40816

main11311-54022i18R..RN46..ARL..CBU198202-198403

11301BBOLT,STUD(FOR TIMING GEAR CASE)

main92132-60828×2i18R..RN46..ARL..CBU197909-198403

L=28,S=16&16

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42001i18R..RN46..ARL..CBU197909-198202

main90311-42003i18R..RN46..ARL..CBU198202-198403

sub90311-42026

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11321-31040i12R#..RN30,40197808-198403

main11321-34010i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

main11321-54011iL..LN3#,4#197909-198104

sub11321-54012

sub90950-01312

main11321-54013i18R..RN46..ARL..CBU198104-198203

main11321-54014i18R..RN46..ARL..CBU198203-198403

11302EPLUG, STRAIGHT(FOR TIMING GEAR COVER)

main90341-18004i18R..RN46..ARL..CBU197909-198403

11305RETAINER, OIL SEAL, NO.2

main11382-54010i18R..RN46..ARL..CBU197909-198403

11305ASEAL, OIL(FOR OIL SEAL RETAINER, NO.2)

main90311-42001i18R..RN46..ARL..CBU197909-198202

main90311-42003i18R..RN46..ARL..CBU198202-198403

sub90311-42026

11305BPIN, RING(FOR OIL SEAL RETAINER, NO.2)

main90253-11001×2i18R..RN46..ARL..CBU197909-198403

11312GASKET, FRONT END PLATE

main11312-31010i12R#..RN30,40197808-198403

main11312-33012i18R..RN31,36,41,46197808-197912

main11312-33014i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197912-198312

sub11312-33015

main11312-54010iL..LN30,40197909-198008

main11312-54011iL..LN3#,4#198008-198105

sub11312-54030

main11312-54012i18R..RN46..ARL..CBU198105-198201

main11312-54013i18R..RN46..ARL..CBU198201-198403

sub11312-54030

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-31010i12R#..RN30,40197808-198403

main11328-33014i18R..RN31,36,41,46197808-197912

main11328-33016i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197912-198312

sub11328-33017

main11328-54010i18R..RN46..ARL..CBU197909-198403

11329GASKET, TIMING GEAR REAR COVER

main11329-54011i18R..RN46..ARL..CBU197909-198403

11354SEAL, FLYWHEEL HOUSING DUST

main11354-54010i18R..RN46..ARL..CBU197909-198403

11355PLATE, REAR END

main11355-33012i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

main11355-54030i18R..RN46..ARL..CBU197909-198403

11381RETAINER, ENGINE REAR OIL SEAL

main11381-38010i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

main11381-54010i18R..RN46..ARL..CBU197909-198403

11381ASEAL, ENGINE REAR OIL

main90311-80001i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

HTC 80 100 12

main90311-85001i18R..RN46..ARL..CBU197909-198402

HTC 85 105 13

sub90311-85006

main90311-85003iL..LN30,40198402-198403

HTC 85 105 13

sub90311-85006

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-33010i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198209

main11383-35010i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA198209-198312

sub11383-35020

main11383-54010i18R..RN46..ARL..CBU197909-198403

sub11383-54020

11384GASKET, OIL SEAL RETAINER, NO.2

main11384-54010i18R..RN46..ARL..CBU197909-198403

sub11384-54011

11391POINTER, TIMING

main11391-31021i12R#..RN30,40197808-198403

main11391-40010i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

main11391-54010i18R..RN46..ARL..CBU197909-198403

11492APLATE, WATER SEAL

main11492-54010i18R..RN46..ARL..CBU197909-198403

9010906017

main90109-06017

9021008019

main90210-08019

9048007001

main90480-07001

9095001312

main90950-01312

9161140814

main91611-40814

9161140825

main91611-40825

9161140828

main91611-40828

9161160830

main91611-60830

9161160840

main91611-60840

9161161020

main91611-61020

9454100600

main94541-00600

9671001015

main96710-01015

9671119015

main96711-19015

32 parts on this diagram · 3 diagrams in section
