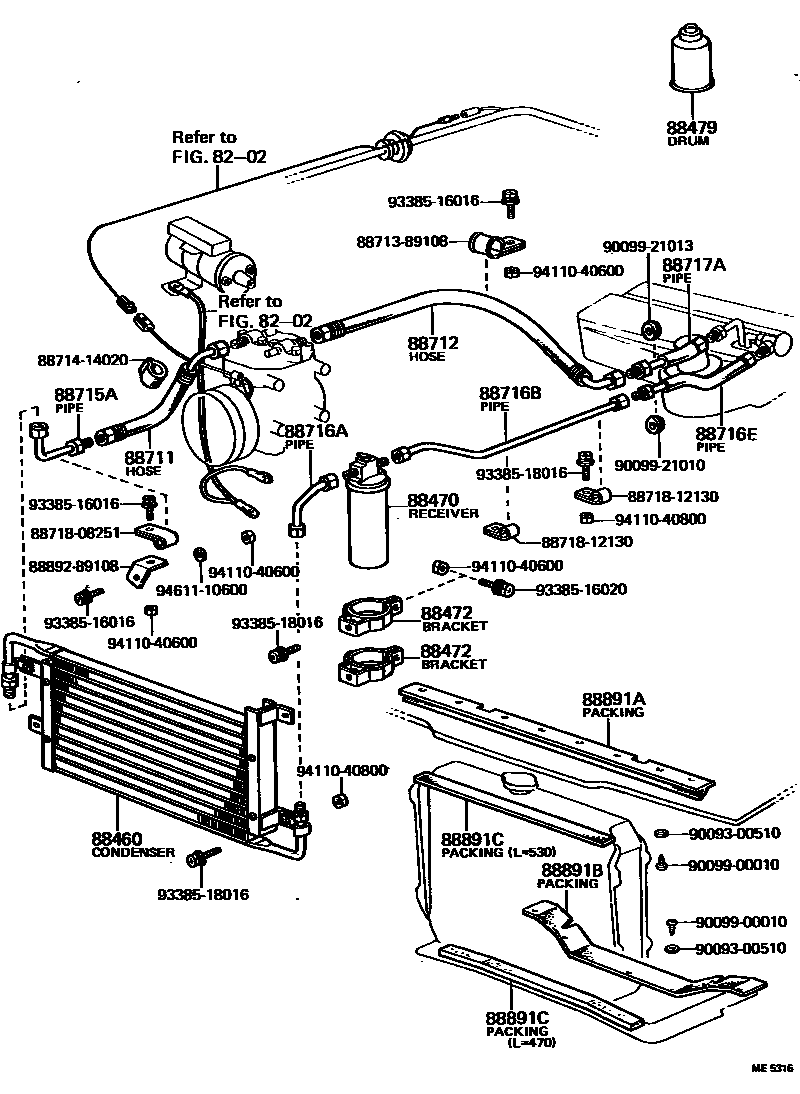

HEATING & AIR CONDITIONING - COOLER PIPING
8202
88460CONDENSER ASSY, COOLER
88470RECEIVER & DRYER ASSY, COOLER
88472BRACKET, RECEIVER TANK, NO.1
88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
sub90986-02001
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88712HOSE, COOLER REFRIGERANT SUCTION, NO.1
88715APIPE, COOLER REFRIGERANT DISCHARGE, A
88716APIPE, COOLER REFRIGERANT LIQUID, A
88716BPIPE, COOLER REFRIGERANT LIQUID, B
88716EPIPE, COOLER REFRIGERANT LIQUID, E
88717APIPE, COOLER REFRIGERANT SUCTION, A
88891APACKING A (FOR COOLER)
L=520
88891BPACKING B (FOR COOLER)
L=570
88891CPACKING C (FOR COOLER)
L=470
L=530
8871389108HOSE, COOLER REFRIGERANT SUCTION, NO.2
main88713-89108
8871414020HOSE, COOLER REFRIGERANT LIQUID, NO.1
main88714-14020
8871808251PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-08251
8871812130PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-12130
8889289108BRACKET, COOLER EVAPORATOR MOUNTING
main88892-89108
9009300510
9009900010
main90099-00010
9009921010
main90099-21010
9009921013
main90099-21013
9338516016
9338516020
9338518016
9411040600
9411040800
9461110600
30 parts on this diagram · 1 diagram in section
