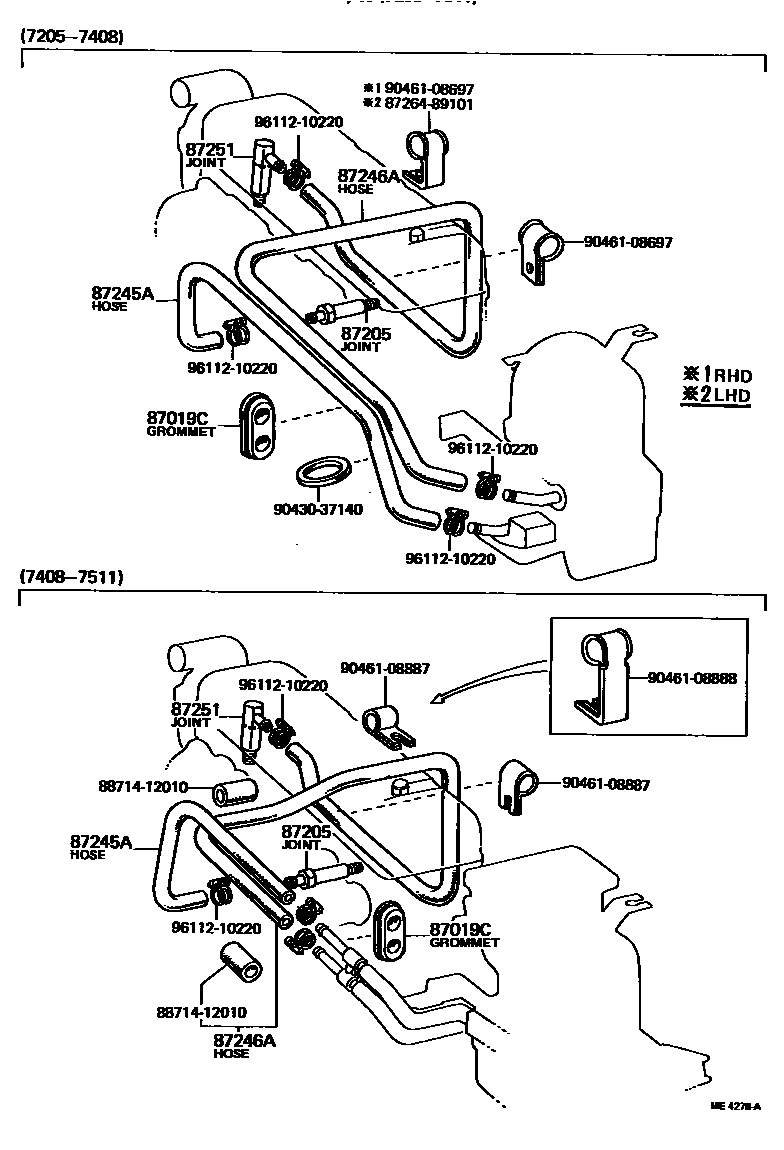

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

87019CGROMMET, HEATER HOSE

main87267-89101iRN2#197205-197408

main90480-01011iRN2#197408-197807

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87251-89101iRN22197404-197511

main87251-89106iRN22197511-197708

main87252-89102iRN20,25197205-197511

main87252-89103iRN20,25197511-197702

sub87252-89104

main87252-89104iRN20,25197702-197807

87245AHOSE, HEATER WATER, INLET A

main87245-89107iRN20,25197205-197408

main87245-89109iRN20,25197408-197807

main87245-89120iRN22,27..RHD197708-197807

L=700

main99552-20700iRN22..RHD197511-197708

L=700

sub99556-20700

main99552-20780iRN22197408-197511

L=780

sub99552-20980

main99552-20820iRN22197404-197408

L=820

sub99552-20980

87246AHOSE, HEATER WATER, OUTLET A

main87245-89108iRN2#..RHD197207-197307

sub99552-21160

main87245-89111iRN20,25..RHD197405-197408

main87245-89112iRN22..RHD197408-197708

main87245-89114iRN20,25..RHD197408-197511

main87245-89115iRN20,25..LHD197408-197511

main87245-89116iRN20,25197511-197807

main87245-89118iRN20,25..4H197702-197807

AUSTRALIA N.S.W. SPEC.

main87245-89120iRN22,27..RHD197708-197807

main99551-21160iRN2#..4H197205-197207

L=1160

sub99552-21160

main99551-21280iRN2#..LHD197205-197307

L=1280

sub99552-21280

main99552-20310iRN22197404-197408

L=310

sub99552-20500

main99552-21160iRN20,25..RHD197307-197405

L=1160

sub99552-22000

main99552-21280iRN20,25..LHD197307-197408

L=1280

sub99552-22000

87251JOINT OR UNION, WATER HOSE THROUGH

main87251-20010iRN20,25197205-197511

sub87251-20011

main87251-29020iRN20,25197511-197807

8726489101BRACKET, HEATER WATER HOSE

main87264-89101

8871412010HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-12010

9043037140

main90430-37140

9046108697

main90461-08697

9046108887

main90461-08887

9046108888

main90461-08888

9611210220

main96112-10220

12 parts on this diagram · 4 diagrams in section
