REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-89803iRN2#197205-197511

main81550-89806iRN2#..RHD¥10,000197205-197404

AUSTRALIA SPEC.

sub81550-89803

main81550-89808iRN2#¥8,900197511-197708

main81550-89810iRN20,25197605-197708

EUR.SPEC.

main81550-89813iRN2#¥8,900197708-197807

main81550-89814iRN20,25197708-197807

EUR.SPEC.

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210iRN20,25¥170197605-197807

12V 21W,12V 21W EUR.SPEC.

main99132-11230iRN2#197205-197807

12V 23W,12V 23W

main99132-21210iRN20,25¥190197605-197807

12V 21/5W,12V 21/5W EUR.SPEC.

main99132-21230iRN2#197205-197807

12V 23/8W,12V 23/8W

81551LENS, REAR COMBINATION LAMP, RH

main81551-89105iRN2#¥2,580197205-197807

main81551-89106iRN20,25¥2,710197605-197807

EUR.SPEC.

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-89104iRN2#¥1,740197205-197807

main81552-89110iRN20,25197605-197807

EUR.SPEC.

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-89110iRN20,25197605-197807

EUR.SPEC.

81560LAMP ASSY, REAR COMBINATION, LH

main81560-89803iRN2#197205-197511

main81560-89806iRN2#..RHD¥10,000197205-197404

AUSTRALIA SPEC.

sub81560-89803

main81560-89808iRN2#¥8,900197511-197708

main81560-89810iRN20,25197605-197708

EUR.SPEC.

main81560-89813iRN2#¥8,900197708-197807

main81560-89814iRN20,25197708-197807

EUR.SPEC.

81561LENS, REAR COMBINATION LAMP, LH

main81561-89105iRN2#¥2,580197205-197807

main81561-89106iRN20,25¥2,710197605-197807

EUR.SPEC.

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81562-89104iRN2#¥1,760197205-197807

main81562-89110iRN20,25197605-197807

EUR.SPEC.

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-89110iRN20,25197605-197807

EUR.SPEC.

8127930020WASHER, SIDE TURN SIGNAL LAMP

main81279-30020¥240

9017906184

main90179-06184¥70

9321914014

main93219-14014¥110

9411040600

main94110-40600¥80

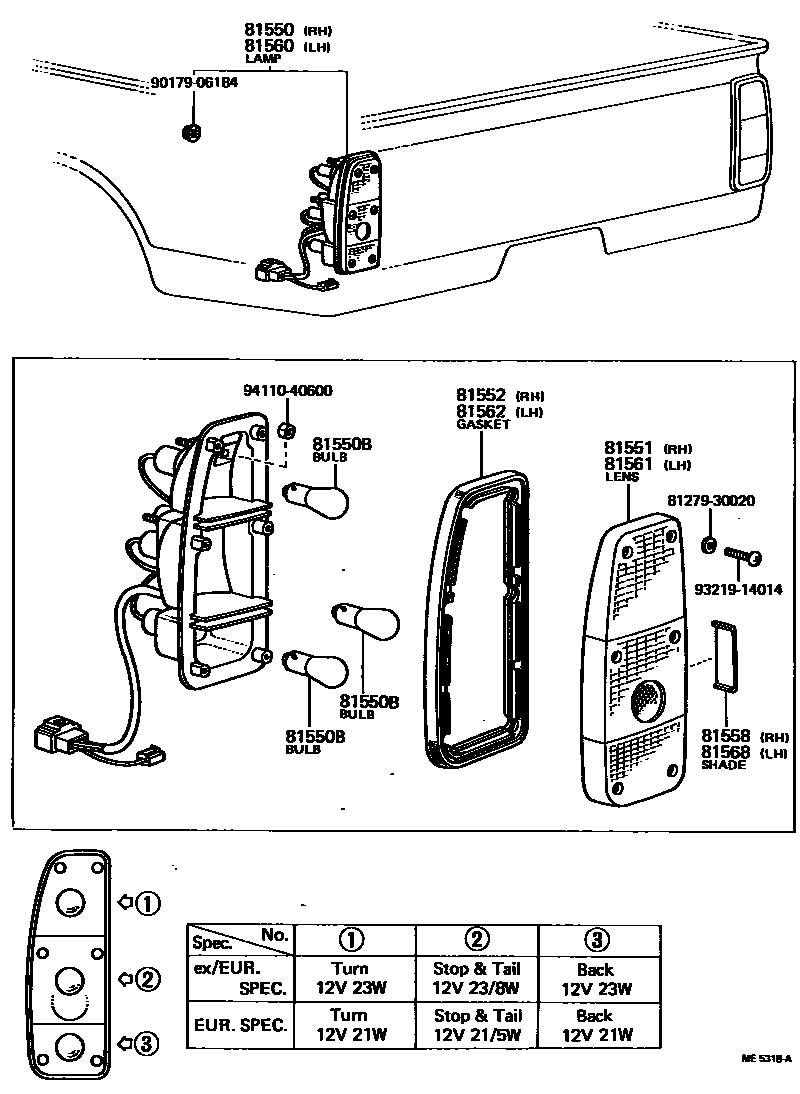

13 parts on this diagram · 1 diagram in section
