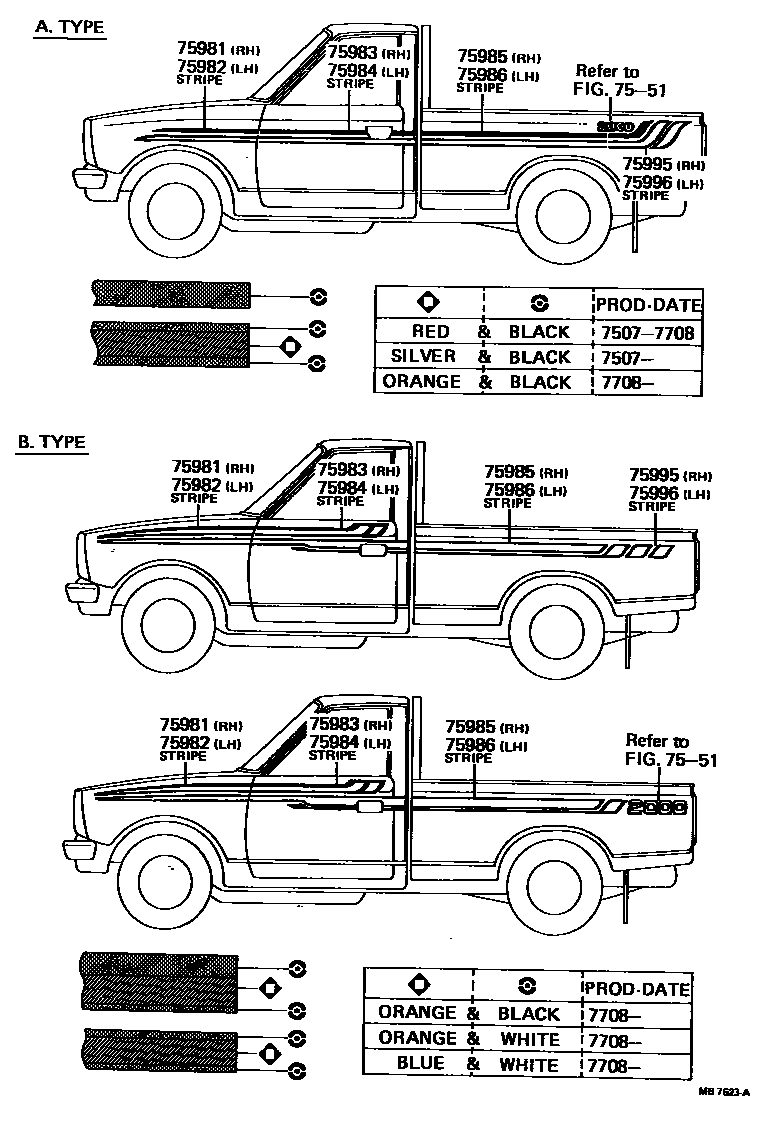

BODY STRIPE
7551
75981STRIPE, FRONT FENDER, RH NO.1
RED & BLACK A.
RED & BLACK A.
ORANGE & BLACK B.
ORANGE & BLACK A.
SILVER & BLACK A.
BLUE & WHITE B.
ORANGE & WHITE B.
75982STRIPE, FRONT FENDER, LH NO.1
RED & BLACK A.
RED & BLACK A.
ORANGE & BLACK B.
ORANGE & BLACK A.
SILVER & BLACK A.
BLUE & WHITE B.
ORANGE & WHITE B.
75983STRIPE, FRONT FENDER, RH NO.2
75984STRIPE, FRONT FENDER, LH NO.2
75985STRIPE, FRONT DOOR, RH
ORANGE & BLACK B.
ORANGE & BLACK B.
BLUE & WHITE A.
ORANGE & WHITE B.
BLUE & WHITE B.
ORANGE & WHITE B.
RED & BLACK A.
RED & BLACK A.
RED & BLACK A.
RED & BLACK A.
ORANGE & BLACK A.
ORANGE & BLACK A.
ORANGE & BLACK A.
SILVER & BLACK A.
SILVER & BLACK A.
SILVER & BLACK A.
75986STRIPE, FRONT DOOR, LH
RED & BLACK A.
RED & BLACK A.
RED & BLACK A.
RED & BLACK A.
ORANGE & BLACK B.
ORANGE & BLACK B.
ORANGE & BLACK A.
ORANGE & BLACK A.
ORANGE & BLACK A.
SILVER & BLACK A.
SILVER & BLACK A.
SILVER & BLACK A.
BLUE & WHITE B.
ORANGE & WHITE B.
BLUE & WHITE B.
ORANGE & WHITE B.
75995STRIPE, FRONT ROOF
RED & BLACK A.
RED & BLACK A.
ORANGE & BLACK B.
ORANGE & BLACK A.
SILVER & BLACK A.
BLUE & WHITE B.
ORANGE & WHITE B.
75996STRIPE, REAR BUMPER
RED & BLACK A.
RED & BLACK A.
ORANGE & BLACK B.
ORANGE & BLACK A.
SILVER & BLACK A.
BLUE & WHITE B.
ORANGE & WHITE B.
9 parts on this diagram · 1 diagram in section
