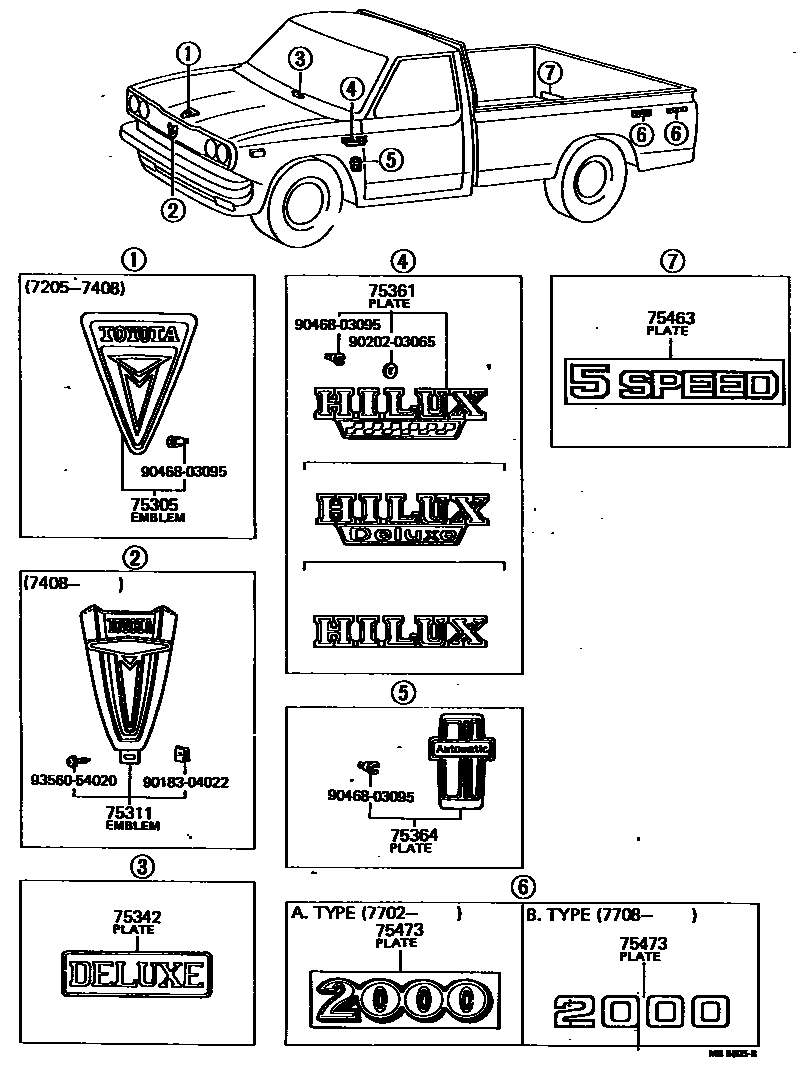

EMBLEM & NAME PLATE

75305EMBLEM, HOOD

main75331-89101iRN2#197205-197408

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-89803iRN20,22,25197408-197807

AMBER

main75311-89804iRN27197710-197807

RED

sub75311-89803

75342PLATE, INSTRUMENT PANEL NAME, NO.2 (GRADE MARK)

main75341-89101iRN22197404-197408

75361PLATE, FRONT FENDER NAME, NO.1 (MODEL MARK)

main75361-89105iRN20,25197205-197408

main75361-89106iRN22197404-197408

sub75361-89109

main75361-89109iRN20,25197408-197703

main75361-89110iRN22..RHD197408-197807

main75361-89113iRN22..5F197703-197807

75364PLATE, FRONT FENDER NAME, NO.2 (GRADE MARK)

main75362-89103iRN22..ATM197404-197408

75463PLATE, REAR NAME, NO.4 (GRADE MARK)

main75371-89101-01iRN22..5F197702-197807

5 SPEED BLACK & IVORY,BLACK

sub75371-89101

sub75474-89104

main75371-89101-08iRN22..5F197702-197807

5 SPEED IVORY & CLEAR,IVORY

sub75371-89101

sub75474-89104

75473PLATE, REAR BODY NAME, NO.3 (FOR DISPLACEMENT INDICATION)

main75473-89104iRN22..5F197702-197807

2000 RED & BLACK A.

main75473-89904iRN22..5F197702-197807

2000 SILVER & BLACK A.

main75996-89104iRN22..5F197708-197807

2000 RH. ORANGE & BLACK B.

main75996-89904iRN22..5F197708-197807

2000 RH. BLUE & WHITE B.

main75996-89905iRN22..5F197708-197807

2000 RH. ORANGE & WHITE B.

main75997-89104iRN22..5F197708-197807

2000 LH. ORANGE & BLACK B.

main75997-89904iRN22..5F197708-197807

2000 LH. BLUE & WHITE B.

main75997-89905iRN22..5F197708-197807

2000 LH. ORANGE & WHITE B.

9018304022

main90183-04022

9020203065

main90202-03065

9046803095

main90468-03095

9356054020

main93560-54020

11 parts on this diagram · 1 diagram in section
