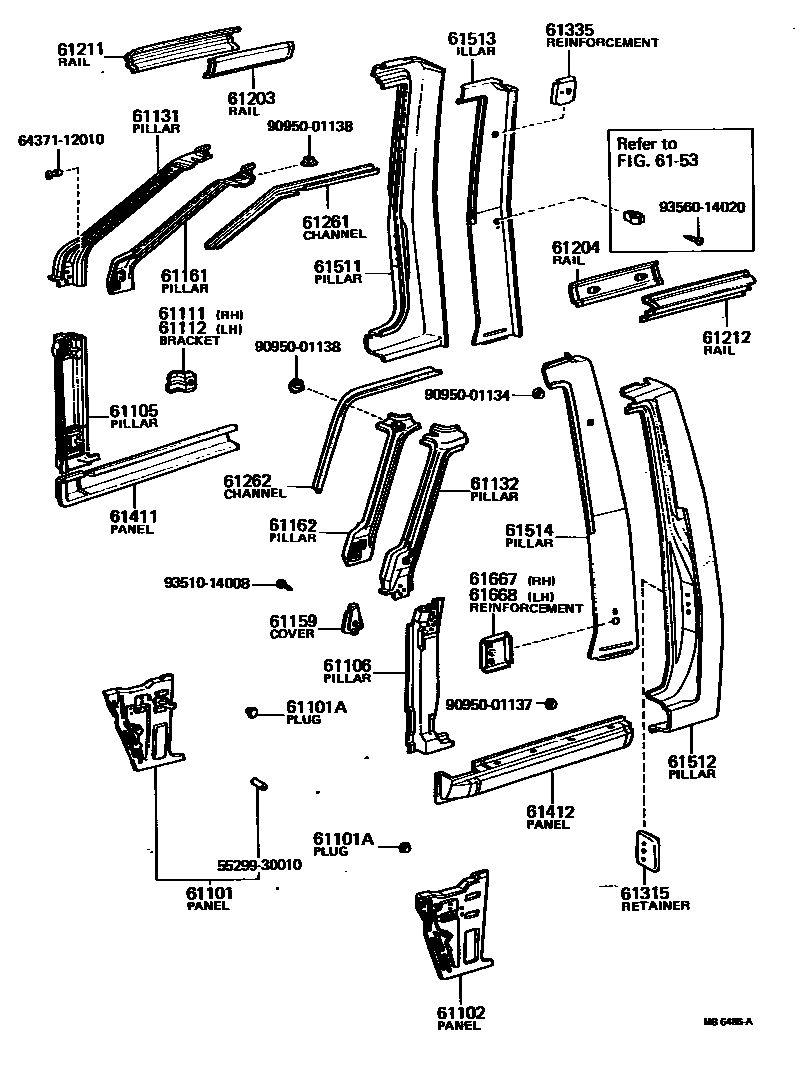

SIDE MEMBER

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-89113iRN20,22,25..RHD197205-197807

main61101-89114iRN20,22,25..LHD197205-197807

main61101-89115iRN27197702-197807

AUSTRALIA N.S.W. SPEC.

main61101-89115iRN27197804-197807

AUSTRALIA N.S.W.

61101APLUG, HOLE(FOR COWL SIDE PANEL)

main90950-01010iRN20,22,25197205-197807

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-89107iRN2#..RHD197205-197807

main61102-89108iRN20,25..LHD197205-197408

main61102-89110iRN20,22,25..LHD197408-197807

61105PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, RH

main61133-89901iRN2#197205-197807

61106PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, LH

main61134-89901iRN2#197205-197807

61111BRACKET SUB-ASSY,INSTRUMENT SIDE, RH

main61125-89102iRN2#197205-197807

61112BRACKET SUB-ASSY, INSTRUMENT SIDE, LH

main61126-89102iRN2#197205-197807

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-89901iRN2#197205-197807

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-89901iRN2#197205-197807

61159COVER, FRONT PILLAR SERVICE HOLE

main67851-89102iRN2#197205-197607

FOR RH.

main67852-89103iRN2#197205-197607

FOR LH.

61161PILLAR, FRONT BODY, UPPER INNER RH

main61161-89103iRN2#197205-197807

61162PILLAR, FRONT BODY, UPPER INNER LH

main61162-89103iRN2#197205-197807

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61231-89104iRN2#..RHD197205-197807

main61231-89105iRN20,25..LHD197205-197408

main61231-89106iRN20,22,25..LHD197408-197807

61204RAIL SUB-ASSY, ROOF SIDE, INNER LH

main61232-89104iRN2#..RHD197205-197408

main61232-89105iRN20,22,25..LHD197205-197807

main61232-89106iRN2#..RHD197408-197807

61211RAIL, ROOF SIDE, OUTER RH

main61211-89102iRN2#197205-197807

61212RAIL, ROOF SIDE, OUTER LH

main61212-89102iRN2#197205-197807

61261CHANNEL, ROOF DRIP, RH

main61205-89103iRN20,25197205-197807

main61205-89104iRN22,27..RHD197404-197807

61262CHANNEL, ROOF DRIP, LH

main61206-89103iRN20,25197205-197807

main61206-89104iRN22,27..RHD197404-197807

61315RETAINER, DOOR LOCK STRIKER PLATE

main61309-12020iRN2#197205-197807

61335REINFORCEMENT, FRONT SEAT BELT ANCHORAGE, UPPER

main61665-89102iRN20,22,25197205-197807

main61665-89104iRN27197710-197807

61411PANEL, ROCKER, OUTER RH

main61411-89101iRN2#197205-197708

sub61411-89102

main61411-89102iRN2#197708-197807

61412PANEL, ROCKER, OUTER LH

main61412-89101iRN2#197205-197708

sub61412-89102

main61412-89102iRN2#197708-197807

61511PILLAR, QUARTER LOCK, RH

main61511-89103iRN20,25197205-197807

main61511-89104iRN22197404-197608

main61511-89105iRN22,27..RHD197608-197807

61512PILLAR, QUARTER LOCK, LH

main61512-89104iRN20197205-197807

main61512-89107iRN22197404-197608

main61512-89109iRN22,27..RHD197608-197807

61513PILLAR, QUARTER LOCK INNER, RH

main61531-89102iRN20,25197205-197504

sub61531-89105

main61531-89104iRN22197404-197608

sub61531-89106

main61531-89105iRN20,25197504-197807

main61531-89106iRN22,27..RHD197608-197807

61514PILLAR, QUARTER LOCK, INNER LH

main61532-89102iRN20,25197205-197504

sub61532-89105

main61532-89104iRN22197404-197608

sub61532-89106

main61532-89105iRN20,25197504-197807

main61532-89106iRN22,27..RHD197608-197807

6153

61667REINFORCEMENT, SEAT BELT ANCHORAGE, LOWER RH

main61667-89101iRN20,25..RHD197504-197604

AUSTRALIA SPEC.

61668REINFORCEMENT, SEAT BELT ANCHORAGE, LOWER LH

main61668-89101iRN20,25..RHD197504-197604

AUSTRALIA SPEC.

5529930010CAP, TEE NUT(FOR 6MM)

main55299-30010

6437112010RETAINER, PACKAGE TRAY TRIM

main64371-12010

9095001134

main90950-01134

9095001137

main90950-01137

9095001138

main90950-01138

9351014008

main93510-14008

9356014020

main93560-14020

36 parts on this diagram · 1 diagram in section
