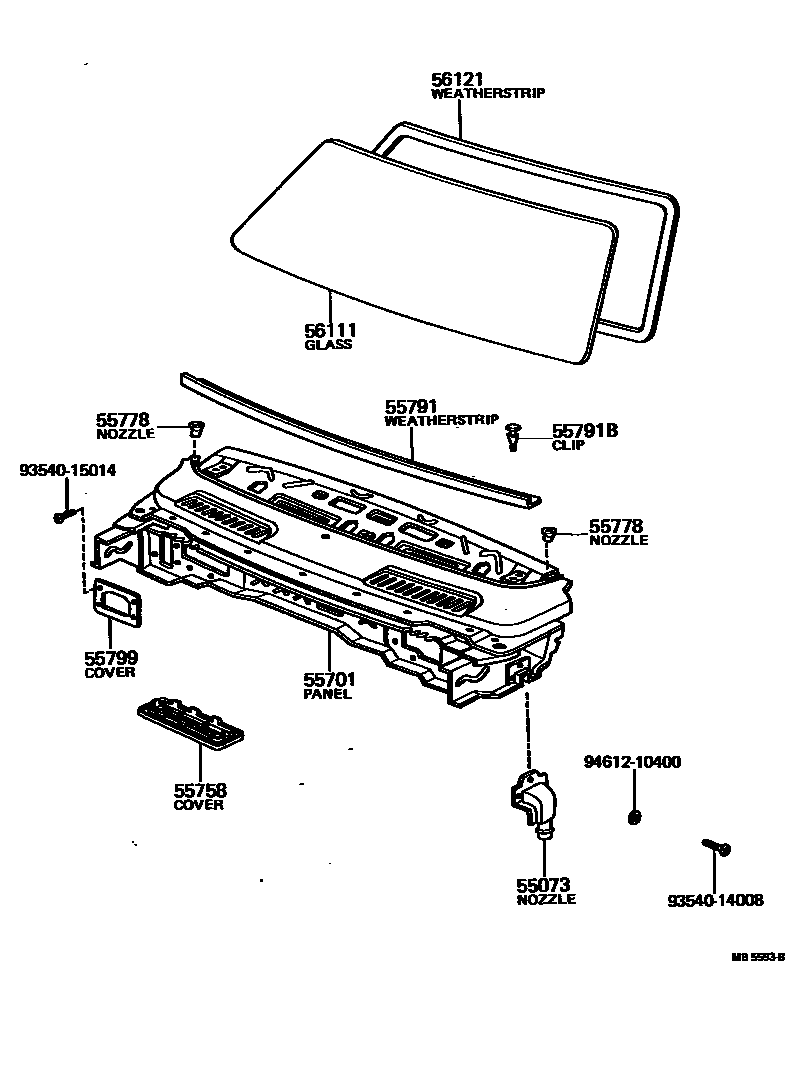

COWL PANEL & WINDSHIELD GLASS

55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT

main55073-20010iRN2#197205-197309

55701PANEL SUB-ASSY, COWL

main55701-89101iRN2#..RHD197205-197408

sub55701-89104

main55701-89102iRN20,25..LHD197205-197408

sub55701-89105

main55701-89104iRN2#..RHD197408-197807

main55701-89105iRN20,25..LHD197408-197702

sub55701-89106

main55701-89106iRN20,22,25..LHD197702-197807

55758COVER, HEATER AIR DUCT

main55759-89101iRN20,25197205-197807

55778NOZZLE, COWL WATER EXTRACT

main55798-89102iRN2#197607-197807

55791WEATHERSTRIP, HOOD TO COWL TOP

main53383-89103iRN2#197205-197807

55791BCLIP(FOR HOOD TO COWL TOP WEATHERSTRIP)

main90467-07050iRN2#197205-197807

sub90467-08008

55799COVER, WIPER MOTOR

main55071-20010iRN2#197205-197807

56111GLASS, WINDSHIELD

main56111-89108iRN20,25,27197205-197807

ZN.TP. T=5.0

sub56111-89112

main56111-89108iRN20,25,27197702-197807

ZN.TP.

sub56111-89112

main56111-89110iRN2#197205-197311

LM.T=6.7

sub56111-89112

main56111-89112iRN20,25197311-197807

LM.T=5.7

sub56111-89113

56121WEATHERSTRIP, WINDSHIELD

main56121-89109iRN20,25197205-197807

FOR L/MOULDING

main56121-89110iRN2#197205-197807

FOR W/MOULDING

9354014008

main93540-14008

9354015014

main93540-15014

9461210400

main94612-10400

12 parts on this diagram · 1 diagram in section
