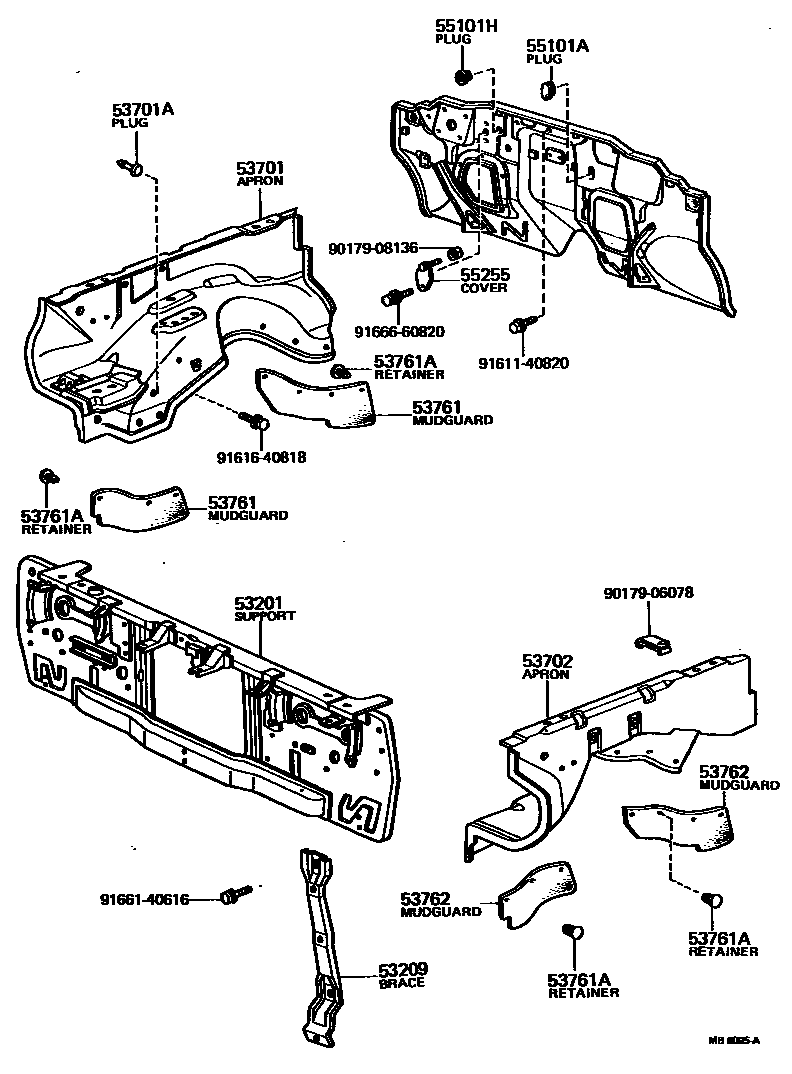

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53201SUPPORT SUB-ASSY, RADIATOR

main53201-89106iRN2#..RHD197205-197408

main53201-89108iRN20,25..LHD197205-197408

main53204-89902iRN2#197408-197807

FOR RH.

main53205-89901iRN2#197408-197807

FOR LH.

53209BRACE SUB-ASSY, HOOD LOCK

main53209-89104iRN2#197205-197408

main53209-89105iRN2#197408-197807

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-89108iRN2#197205-197408

sub53701-89110

main53701-89110iRN22,27..RHD197408-197807

main53701-89112iRN20,22,25..LHD197610-197807

FOR DUSTY REGION

53701APLUG, HOLE(FOR FRONT FENDER APRON)

main90333-25001iRN2#..RHD197601-197807

main90950-01084iRN2#..RHD197205-197601

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-89113iRN20,25197205-197408

sub53702-89116

main53702-89114iRN22197404-197408

sub53702-89118

main53702-89115iRN20,25..4H197501-197609

FOR W/CANISTER

main53702-89116iRN20,22,25..LHD197408-197807

main53702-89118iRN2#..RHD197408-197807

main53702-89120iRN20,25..RHD197605-197704

E.C.E. SPEC.

sub53702-89126

sub91616-40816

main53702-89121iRN20,25..LHD197605-197704

E.C.E. SPEC.

sub53702-89127

sub91616-40816

main53702-89122iRN20,22,25..RHD197609-197807

FOR DUSTY REGION

main53702-89123iRN20,25..4H197609-197704

FOR W/CANISTER,DUSTYREGION

main53702-89124iRN20,25..4H197702-197704

AUSTRALIA N.S.W. SPEC.

main53702-89126iRN20,25..RHD197704-197807

E.C.E. SPEC.

main53702-89127iRN20,25..LHD197704-197807

E.C.E. SPEC.

main53702-89128iRN20,25..4H197704-197807

FOR W/CANISTER,DUSTYREGION

main53702-89129iRN20,25..4H197704-197807

AUSTRALIA N.S.W. SPEC.

main53702-89130iRN27197710-197807

main53702-89131iRN27197710-197807

FOR DUSTY REGION

53761MUDGUARD, RH

main53717-89106iRN2#197205-197305

FOR REAR

sub53717-89108

main53717-89107iRN2#197205-197807

FOR FRONT

main53717-89108iRN2#197305-197807

FOR REAR

53761ARETAINER(FOR MUDGUARD)

main53718-89103iRN2#197205-197801

main90467-10001iRN2#197801-197807

sub90467-11005

53762MUDGUARD, LH

main53717-89106iRN2#197205-197305

FOR REAR

sub53717-89108

main53717-89107iRN2#197205-197807

FOR FRONT

main53717-89108iRN2#197305-197807

FOR REAR

55101APLUG, HOLE, NO.1(FOR DASH PANEL)

main58711-89101iRN20,25197205-197807

55101HPLUG, HOLE, NO.2(FOR DASH PANEL)

main90950-01010iRN22..RHD197404-197711

FOR D=16 HOLE

55255COVER, CLUTCH MASTER CYLINDER HOLE

main55255-89102iRN22..ATM197404-197807

9017906078

main90179-06078

9017908136

main90179-08136

9161140820

main91611-40820

9161640818

main91616-40818

9166140616

main91661-40616

9166660820

main91666-60820

17 parts on this diagram · 2 diagrams in section
