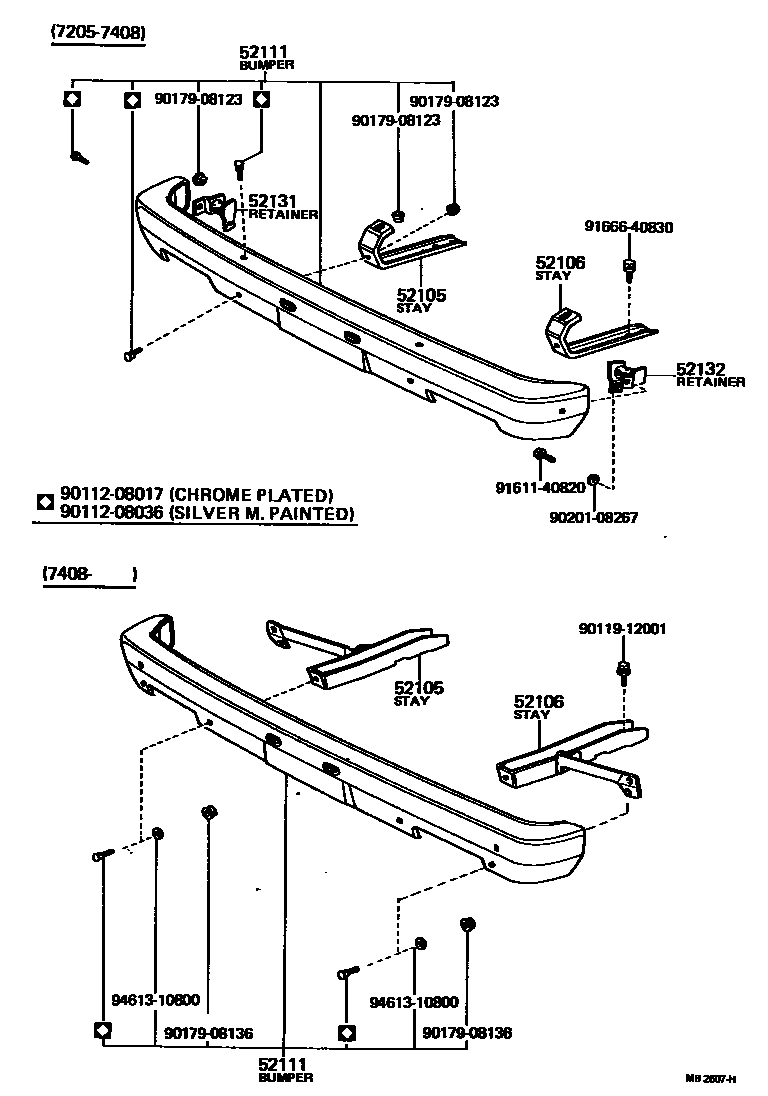

FRONT BUMPER & BUMPER STAY

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52011-89101iRN2#197408-197807

main52141-89103iRN2#197205-197408

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52012-89101iRN2#197408-197807

main52141-89103iRN2#197205-197408

52111BUMPER ASSY, FRONT

main52111-89803iRN20,25197205-197408

SILVER M.

sub52111-89104

main52111-89804iRN2#197205-197408

CHROME PLATED

sub52111-89105

main52111-89805iRN20,25197408-197807

SILVER M.

sub52111-89106

main52111-89806iRN2#197408-197807

CHROME PLATED

sub52111-89107

52131RETAINER, FRONT BUMPER SIDE, RH

main52015-89101iRN2#197205-197408

52132RETAINER, FRONT BUMPER SIDE, LH

main52016-89101iRN2#197205-197408

9011208017

main90112-08017

9011208036

main90112-08036

9011912001

main90119-12001

9017908123

main90179-08123

9017908136

main90179-08136

9020108267

main90201-08267

9161140820

main91611-40820

9166640830

main91666-40830

9461310800

main94613-10800

14 parts on this diagram · 1 diagram in section
