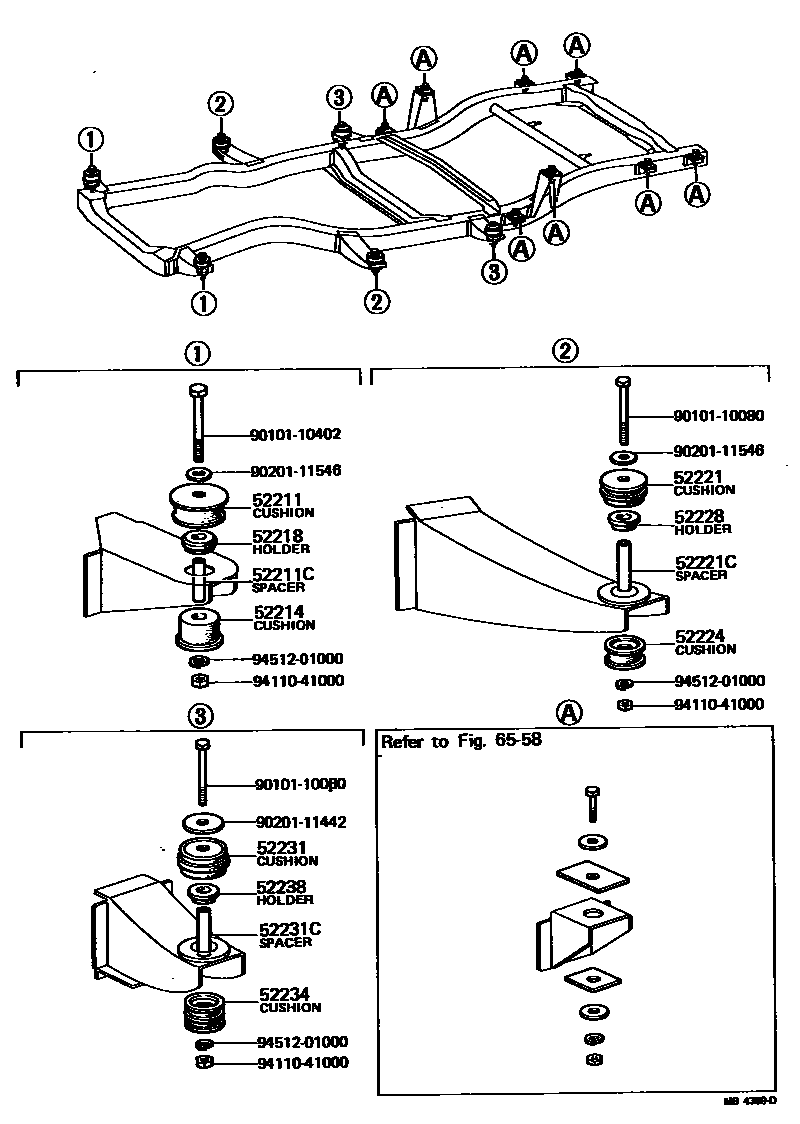

CAB MOUNTING & BODY MOUNTING
52211CUSHION, BODY MOUNTING, NO.1 UPPER
52211CSPACER(FOR BODY MOUNTING NO.1 CUSHION)
52214CUSHION, BODY MOUNT, NO.1 LOWER
52218HOLDER, BODY MOUNT BOLT SPACER, NO.1
52221CUSHION, BODY MOUNT, NO.2 UPPER
52221CSPACER(FOR BODY MOUNT NO.2 CUSHION)
52224CUSHION, BODY MOUNT, NO.2 LOWER
52228HOLDER, BODY MOUNT BOLT SPACER, NO.2
52231CUSHION, BODY MOUNT, NO.3 UPPER
52231CSPACER(FOR BODY MOUNT NO.3 CUSHION)
52234CUSHION, BODY MOUNT, NO.3 LOWER
52238HOLDER, BODY MOUNT BOLT SPACER, NO.3
6558
9010110080
main90101-10080
9010110402
main90101-10402
9020111442
main90201-11442
9020111546
main90201-11546
9411041000
main94110-41000
9451201000
main94512-01000
19 parts on this diagram · 1 diagram in section
