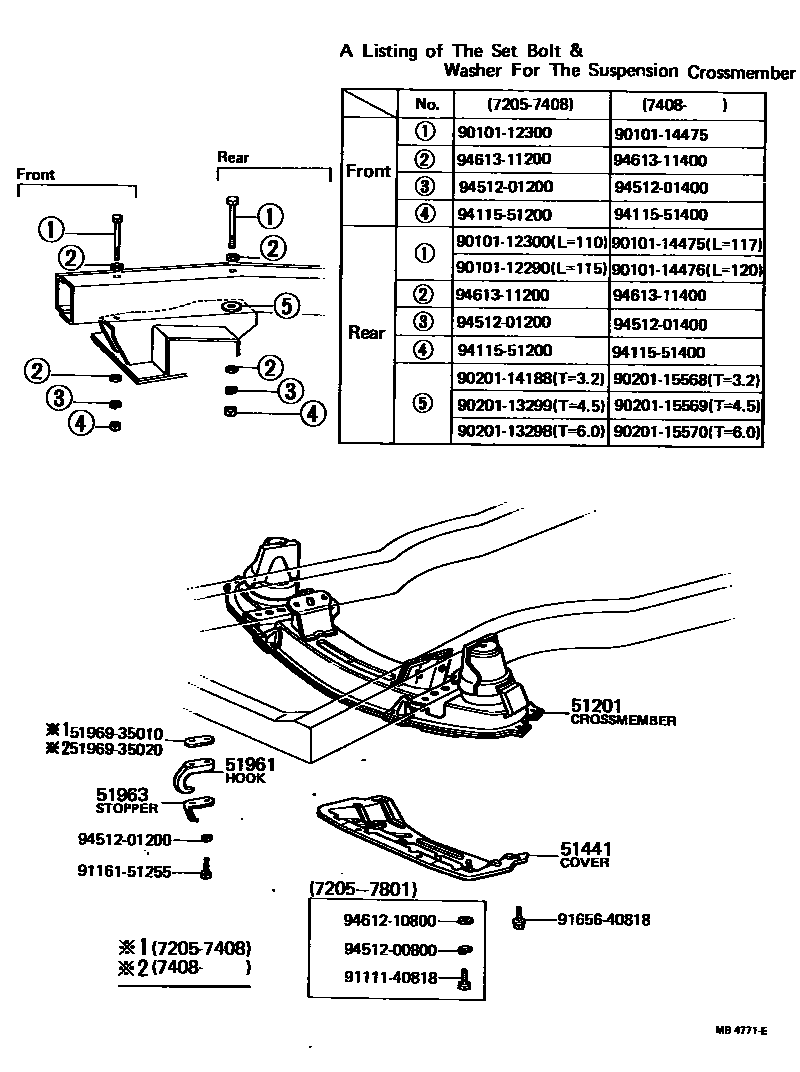

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51202-35070iRN20,25197205-197408

main51202-35080iRN22197404-197408

main51202-35090iRN22,27197408-197807

main51202-35100iRN20,25197408-197807

51441COVER, ENGINE UNDER, NO.1

main51441-35030iRN2#197205-197408

main51441-35070iRN2#197408-197807

51961HOOK, NO.1

main51961-60010iRN22..5F197205-197807

51963STOPPER, HOOK WIRE

main51963-35010iRN22..5F197205-197807

sub51963-35080

5196935010BRACE, HOOK

main51969-35010

5196935020BRACE, HOOK

main51969-35020

9010112290

main90101-12290

9010112300

main90101-12300

9010114475

main90101-14475

9010114476

main90101-14476

9020113298

main90201-13298

9020113299

main90201-13299

9020114188

main90201-14188

9020115568

main90201-15568

9020115569

main90201-15569

9020115570

main90201-15570

9111140818

main91111-40818

9116151255

main91161-51255

9165640818

main91656-40818

9411551200

main94115-51200

9411551400

main94115-51400

9451200800

main94512-00800

9451201200

main94512-01200

9451201400

main94512-01400

9461210800

main94612-10800

9461311200

main94613-11200

9461311400

main94613-11400

27 parts on this diagram · 1 diagram in section
