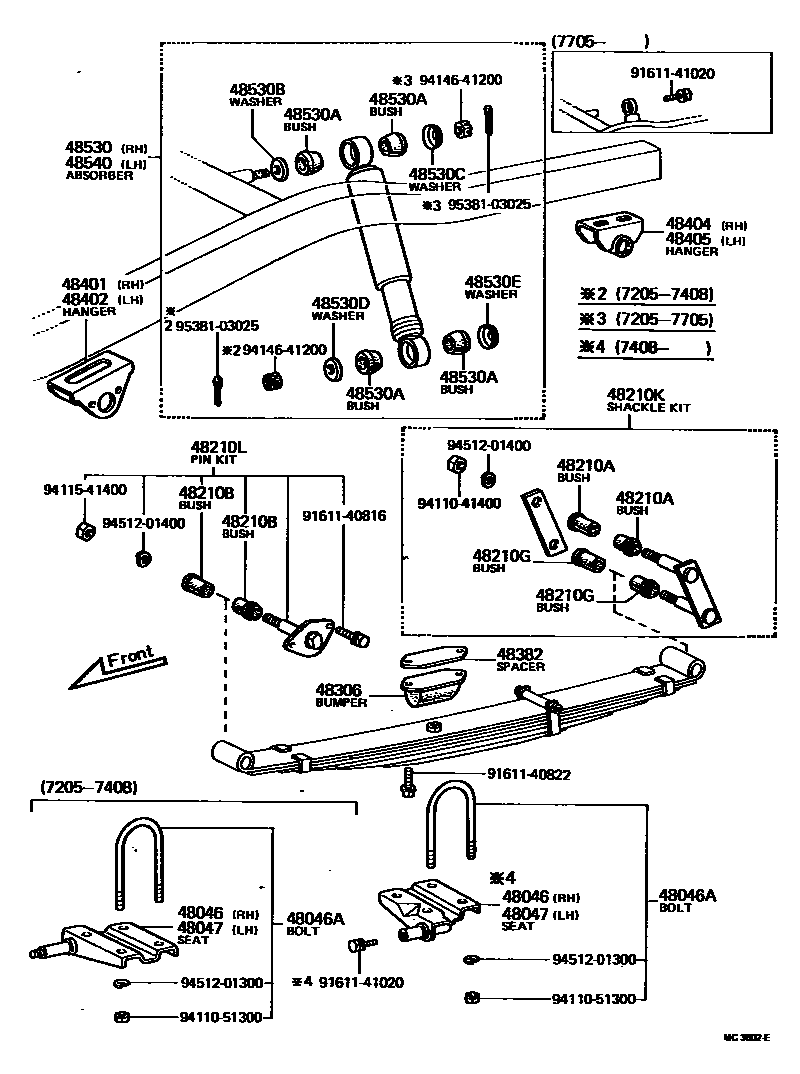

REAR SPRING & SHOCK ABSORBER
48046SEAT SUB-ASSY, SPRING U BOLT, RH
48047SEAT SUB-ASSY, SPRING U BOLT, LH
48210SPRING ASSY, REAR RH
LIGHT DUTY
HEAVY DUTY
3-LEAVES
48210ABUSH(FOR REAR SPRING SHACKLE UPPER)
48210BBUSH(FOR REAR SPRING PIN)
48210GBUSH(FOR REAR SPRING SHACKLE LOWER)
48210KSHACKLE KIT, REAR SPRING
sub04483-35040
48210LPIN KIT, REAR SPRING
sub04482-35030
48306BUMPER SUB-ASSY, REAR SPRING
48382SPACER, BUMPER BLOCK
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3
48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4
9161140816
main91611-40816
9161140822
main91611-40822
9161141020
main91611-41020
9411041400
main94110-41400
9411051300
main94110-51300
9411541400
main94115-41400
9414641200
main94146-41200
9451201300
main94512-01300
9451201400
main94512-01400
9538103025
main95381-03025
32 parts on this diagram · 3 diagrams in section
