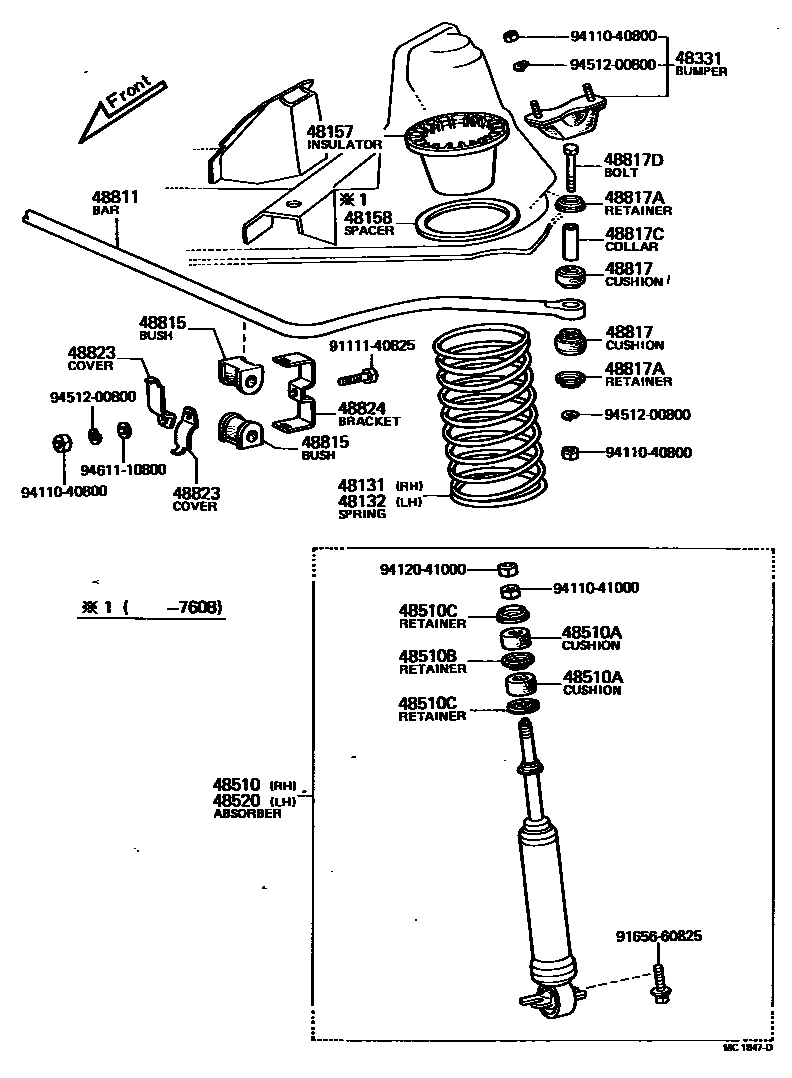

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
WD=14.8 SOUTH AFRICA SPEC
WD=14.8
WD=15,FOR COOLER
WD=14.8
48132SPRING, FRONT COIL, LH
WD=14.8 SOUTH AFRICA SPEC
WD=14.8
WD=15,FOR COOLER
WD=14.8
48157INSULATOR, FRONT COIL SPRING, UPPER
48158SPACER, FRONT COIL SPRING
48331BUMPER, FRONT SPRING, NO.1
48510ACUSHION, FRONT SHOCK ABSORBER
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
T=1.0
48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
T=1.6
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
ID=19
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
ID=8.3
48817CCOLLAR(FOR STABILIZER BAR)
48823COVER, STABILIZER LINK(FOR FRONT)
48824BRACKET, STABILIZER, FRONT
9111140825
main91111-40825
9165660825
main91656-60825
9411040800
main94110-40800
9411041000
main94110-41000
9412041000
main94120-41000
9451200800
main94512-00800
9461110800
main94611-10800
25 parts on this diagram · 1 diagram in section
