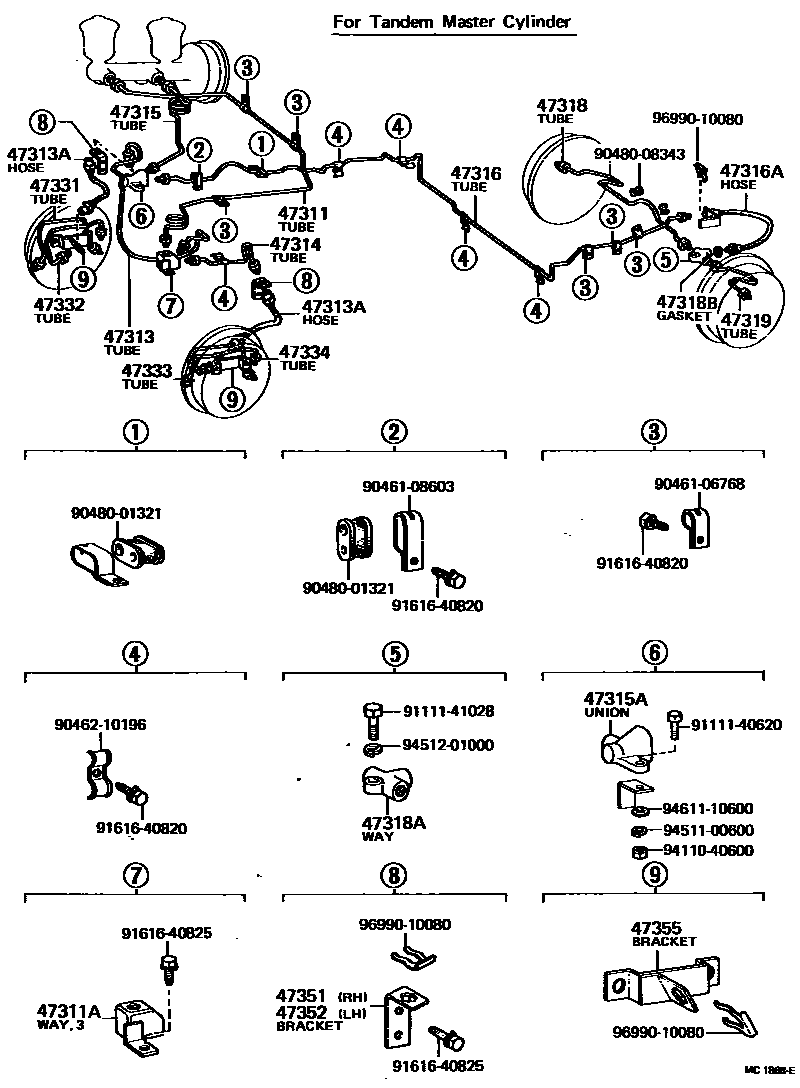

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

47311TUBE, FRONT BRAKE, NO.1

main47311-35150iRN20,25..RHD197205-197408

FOR SINGLE MASTER CYLINDER

main47311-35160iRN2#..RHD197205-197408

FOR TANDEM MASTER CYLINDER

main47311-35170iRN20,25..LHD197205-197408

FOR TANDEM MASTER CYLINDER

main47311-35180iRN20,25..LHD197205-197408

FOR SINGLE MASTER CYLINDER

main47311-35200iRN20,25..LHD¥480197408-197411

FOR TANDEM MASTER CYLINDER

sub47311-35201

main47311-35201iRN20,22,25..LHD197411-197807

FOR TANDEM MASTER CYLINDER

main47311-35210iRN20,25..RHD197408-197807

FOR SINGLE MASTER CYLINDER

main47311-35220iRN20,25..LHD197408-197807

FOR SINGLE MASTER CYLINDER

main47311-35240iRN2#..RHD197408-197410

FOR TANDEM MASTER CYLINDER

main47311-35241iRN2#..RHD197410-197511

FOR TANDEM MASTER CYLINDER

main47311-35242iRN2#..RHD197511-197807

FOR TANDEM MASTER CYLINDER

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10123iRN2#¥1,060197205-197807

FOR TANDEM MASTER CYL1NDER

main90414-10047iRN20,25197205-197408

FOR SINGLE MASTER CYL1NDER

main90414-10050iRN20,25197408-197807

FOR SINGLE MASTER CYL1NDER

47313TUBE, FRONT BRAKE, NO.3

main47313-35060iRN2#197205-197301

FOR TANDEM MASTER CYLINDER

main47313-35061iRN2#197301-197408

FOR TANDEM MASTER CYLINDER

main47313-35070iRN2#197205-197301

FOR SINGLE MASTER CYLINDER

main47313-35071iRN20,25197301-197408

FOR SINGLE MASTER CYLINDER

main47313-35080iRN20,25197408-197807

FOR SINGLE MASTER CYLINDER

main47313-35090iRN2#197408-197511

FOR TANDEM MASTER CYLINDER

main47313-35090iRN20,22,25..LHD197702-197807

main47313-35100iRN20,25197511-197807

FOR TANDEM MASTER CYLINDER

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02089iRN2#197205-197401

L=388

sub90947-02316¥1,630

sub96950-33905¥1,320

main90947-02231iRN2#¥1,670197401-197408

L=388

sub90947-02326¥1,530

main90947-02248iRN2#¥1,670197408-197807

L=375

sub96950-33754

47314TUBE, FRONT BRAKE, NO.4

main47314-35070iRN2#197205-197301

FOR SINGLE MASTER CYLINDER

main47314-35071iRN20,25197301-197408

FOR SINGLE MASTER CYLINDER

main47314-35080iRN2#197205-197301

FOR TANDEM MASTER CYLINDER

main47314-35081iRN2#197301-197408

FOR TANDEM MASTER CYLINDER

main47314-35090iRN20,25197408-197807

FOR SINGLE MASTER CYLINDER

main47314-35100iRN20,22,25..LHD197408-197807

FOR TANDEM MASTER CYLINDER

main47314-35110iRN22,27..RHD197511-197807

FOR TANDEM MASTER CYLINDER

main47314-35120iRN20,25..RHD197511-197807

FOR TANDEM MASTER CYLINDER

47315TUBE, FRONT BRAKE, NO.5

main47312-35060iRN2#..RHD197205-197408

main47312-35070iRN20,25..LHD197205-197408

main47312-35100iRN20,22,25..LHD197408-197807

main47312-35110iRN2#..RHD197408-197511

main47312-35111iRN2#..RHD197511-197807

47315AWAY OR UNION(FOR REAR BRAKE TUBE)

main90412-10034iRN2#197205-197408

main90412-10079iRN2#197408-197807

47316TUBE, FRONT BRAKE, NO.6

main47316-35120iRN20,22..RHD197309-197408

FOR TANDEM MASTER CYLINDER

main47316-35120iRN20197205-197408

FOR SINGLE MASTER CYLINDER

main47316-35130iRN25197205-197408

FOR SINGLE MASTER CYLINDER

main47316-35130iRN25197205-197408

FOR TANDEM MASTER CYLINDER

main47316-35140iRN20..LHD197309-197408

FOR TANDEM MASTER CYLINDER

main47316-35150iRN25..LHD197309-197408

FOR TANDEM MASTER CYLINDER

main47316-35160iRN20197408-197605

main47316-35161iRN20197605-197807

main47316-35170iRN25197408-197605

main47316-35171iRN25197605-197807

main47316-35181iRN22..5F197702-197807

main47316-35200iRN22197408-197605

main47316-35201iRN22..RHD197605-197807

main47322-35020iRN27197710-197807

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96920-31462iRN2#¥1,500197205-197406

L=460

sub96920-31463¥1,500

main96920-31463iRN2#¥1,500197406-197807

L=460

sub96920-34605

47318TUBE, FRONT BRAKE, NO.8

main47318-35060iRN2#..RHD197205-197408

FOR TANDEM MASTER CYLINDER

main47318-35060iRN20,25197408-197807

main47318-35060iRN20,25197205-197408

FOR SINGLE MASTER CYLINDER

main47318-35080iRN22,27197408-197807

main47318-35080iRN20,25..LHD197309-197408

FOR TANDEM MASTER CYLINDER

47318AWAY(FOR REAR RH BRAKE TUBE)

main90413-10028iRN2#¥1,630197205-197807

47318BGASKET(FOR REAR RH BRAKE TUBE)

main90430-10027iRN2#¥180197205-197807

47319TUBE, FRONT BRAKE, NO.9

main47319-35060iRN2#197205-197408

FOR TANDEM MASTER CYLINDER

main47319-35060iRN20,25197408-197807

main47319-35060iRN20,25197205-197408

FOR SINGLE MASTER CYLINDER

main47319-35080iRN20..LHD197309-197807

47331TUBE, REAR BRAKE, NO.10

main47331-30061iRN2#¥1,320197511-197807

main47331-35020iRN2#197205-197511

47332TUBE, REAR BRAKE, NO.11

main47332-35022iRN2#197205-197301

main47332-35023iRN2#197301-197408

main47332-35024iRN2#197408-197511

main47332-35025iRN2#197511-197807

47333TUBE, REAR BRAKE, NO.12

main47331-30061iRN2#¥1,320197511-197807

main47333-35020iRN2#197205-197511

47334TUBE, REAR BRAKE, NO.13

main47334-35022iRN2#197205-197301

main47334-35023iRN2#197301-197408

main47334-35024iRN2#197408-197511

main47334-35025iRN2#197511-197807

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-35040iRN2#197205-197301

main47351-35041iRN2#197301-197408

main47351-35050iRN2#197408-197807

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47353-35020iRN2#197205-197301

main47353-35021iRN2#197301-197408

main47353-35030iRN2#197408-197807

47355BRACKET, FLEXIBLE HOSE, NO.2(FOR FRONT)

main47354-35010iRN2#197205-197301

FOR RH.

main47354-35011iRN2#197301-197408

FOR RH.

main47354-35020iRN2#197408-197807

FOR RH.

main47355-35010iRN2#197205-197301

FOR LH.

main47355-35011iRN2#197301-197408

FOR LH.

main47355-35020iRN2#197408-197807

FOR LH.

9046106768

main90461-06768

9046108603

main90461-08603

9046210196

main90462-10196¥350

9048001321

main90480-01321

9048008343

main90480-08343¥190

9111140620

main91111-40620

9111141028

main91111-41028¥210

9161640820

main91616-40820¥160

9161640825

main91616-40825¥220

9411040600

main94110-40600¥80

9451100600

main94511-00600¥120

9451201000

main94512-01000¥90

9461110600

main94611-10600¥90

9699010080

main96990-10080¥210

34 parts on this diagram · 10 diagrams in section
