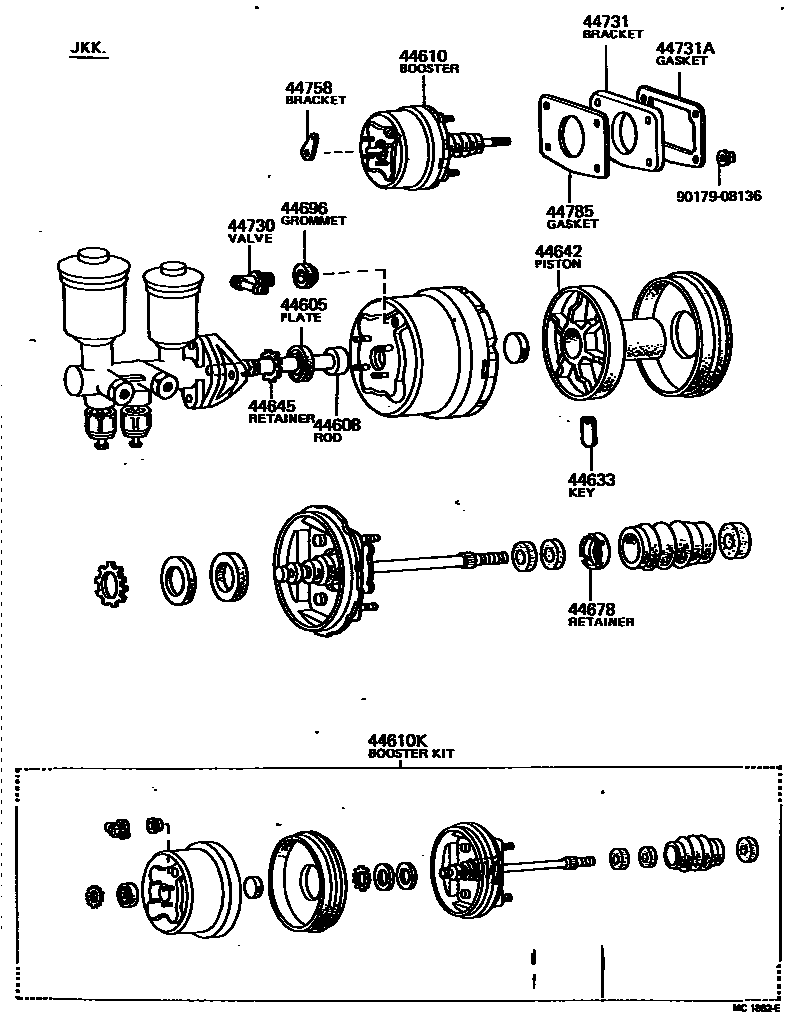

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-22021iRN2#197205-197807

sub44605-10080

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-30050iRN2#..RHD197408-197807

ASCO

sub44606-35100

main44608-14040iRN2#197205-197807

JKK

44610BOOSTER ASSY, BRAKE

main44610-35031iRN2#197205-197807

JKK

main44610-35041iRN20,22,25..LHD197408-197807

JKK

main44610-35061iRN2#..RHD197408-197807

ASCO

44610KBOOSTER KIT, BRAKE

main04443-35020iRN2#197205-197807

JKK

main04443-35030iRN2#..RHD197408-197807

ASCO FOR MAJOR

44633KEY, BOOSTER VALVE PLUNGER

main44633-22020iRN2#197205-197807

44642PISTON, BRAKE BOOSTER

main44642-25010iRN2#..RHD197408-197807

ASCO

main44642-25021iRN2#197205-197807

JKK

44645RETAINER, BOOSTER PUSH ROD SEAL

main44628-60010iRN2#..RHD197408-197807

ASCO

main44645-22020iRN2#197205-197807

JKK

44678RETAINER, BOOSTER AIR CLEANER

main44678-22020iRN2#197205-197807

44696GROMMET, CHECK VALVE

main90480-24438iRN2#197205-197702

JKK

sub90480-24517

main90480-24439iRN2#..RHD197408-197807

ASCO

main90480-24517iRN2#197702-197807

JKK

sub90480-24015

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22050iRN2#197205-197807

JKK

sub44730-22090

main44730-22060iRN2#..RHD197408-197807

ASCO

44731BRACKET, BRAKE BOOSTER, FRONT

main44731-35030iRN2#197205-197807

44731AGASKET, BRAKE BOOSTER BRACKET

main44785-35010iRN2#197205-197807

sub44785-35011

44758BRACKET, VACUUM CHECK VALVE

main44758-20060iRN2#197410-197807

main44758-35010iRN2#197212-197410

sub44758-20060

44785GASKET, BRAKE BOOSTER

main44785-35010iRN2#197205-197807

sub44785-35011

9017908136

main90179-08136

15 parts on this diagram · 3 diagrams in section
