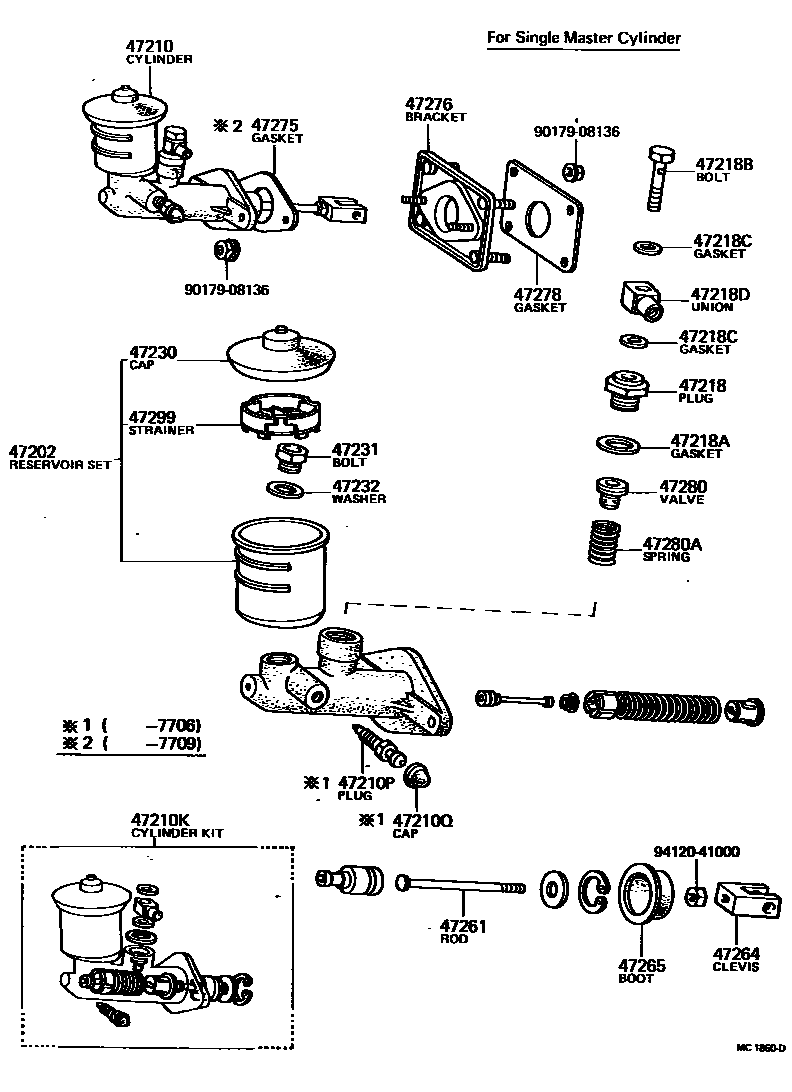

BRAKE MASTER CYLINDER

0001 1 0002 1

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-22061iRN20,25197205-197802

FOR SINGLE MASTER CYLINDER

sub47202-22062

main47202-22062iRN20,25197802-197807

FOR SINGLE MASTER CYLINDER

main47202-22071iRN2#197205-197807

FOR TANDEM MASTER CYLINDER

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47200-35070iRN20,25..RHD197205-197807

FOR SINGLE MASTER CYLINDER

main47200-35110iRN20,25..LHD197205-197807

FOR SINGLE MASTER CYLINDER

sub47200-35070

main47201-35020iRN2#197205-197807

FOR TANDEM MASTER CYLINDER

47210KCYLINDER KIT, BRAKE MASTER

main04471-35050iRN20,25197205-197807

FOR SINGLE MASTER CYLINDER

main04493-35020iRN2#197205-197807

FOR TANDEM MASTER CYLINDER

47210PPLUG, BLEEDER(FOR BRAKE MASTER CYLINDER)

main47547-30020iRN2#197205-197506

main47547-30020iRN20,25197506-197706

FOR SINGLE MASTER CYLINDER

47210QCAP, BLEEDER PLUG(FOR BRAKE MASTER CYLINDER)

main47548-20010iRN2#197205-197506

main47548-20010iRN20,25197506-197706

FOR SINGLE MASTER CYLINDER

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-10010iRN2#197501-197807

FOR TANDEM MASTER CYLINDER

main47218-12010iRN20,25197205-197807

FOR SINGLE MASTER CYLINDER

main47218-30010iRN2#197205-197501

FOR TANDEM MASTER CYLINDER

sub47218-10010

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-20018iRN2#197205-197807

47218BBOLT, UNION(FOR MASTER CYLINDER FLUID OUTLET)

main90401-10014iRN20,25197205-197807

47218CGASKET(FOR MASTER CYLINDER FLUID OUTLET)

main90430-10074iRN20,25197205-197807

47218DUNION(FOR MASTER CYLINDER FLUID OUTLET)

main90405-10073iRN20,25197205-197807

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12020iRN20,25197205-197802

FOR SINGLE MASTER CYLINDER

main47230-12030iRN2#197205-197710

FOR TANDEM MASTER CYLINDER

sub47230-20040

main47230-20030iRN20,25197802-197807

FOR SINGLE MASTER CYLINDER

main47230-20040iRN2#197710-197807

FOR TANDEM MASTER CYLINDER

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-30010iRN2#197408-197807

main47231-35010iRN2#197205-197307

sub47231-30010

47232WASHER, BRAKE RESERVOIR SET BOLT

main47232-30010iRN2#197307-197807

main47232-35010iRN2#197205-197307

sub47232-30010

47261ROD, MASTER CYLINDER PUSH

main47261-35040iRN20,25197205-197807

47264CLEVIS, MASTER CYLINDER PUSH ROD

main31453-30020iRN2#197205-197807

47265BOOT, MASTER CYLINDER

main47265-30020iRN20,25197205-197807

FOR SINGLE MASTER CYLINDER

main47265-35020iRN2#197205-197807

FOR TANDEM MASTER CYLINDER

47275GASKET, BRAKE MASTER CYLINDER

main47275-22010iRN2#197412-197807

FOR TANDEM MASTER CYLINDER

main47275-30010iRN20,25197205-197709

FOR SINGLE MASTER CYLINDER

main47275-35010iRN2#197205-197412

FOR TANDEM MASTER CYLINDER

sub47275-22010

47276BRACKET, BRAKE MASTER CYLINDER

main47276-30020iRN20,25197205-197807

47278GASKET, BRAKE MASTER CYLINDER BRACKET

main44785-35010iRN20,25,27197205-197807

sub44785-35011

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-12010iRN2#197205-197307

FOR TANDEM MASTER CYLINDER

sub47280-12020

sub47280-30020

main47280-12020iRN20,25197205-197807

FOR SINGLE MASTER CYLINDER

main47280-30020iRN2#197307-197807

FOR TANDEM MASTER CYLINDER

47280ASPRING, COMPRESSION

main90501-10074iRN2#197205-197307

sub90501-10698

main90501-10698iRN2#197302-197807

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-22010iRN2#197205-197807

FOR TANDEM MASTER CYLINDER

main47299-22020iRN20,25197205-197807

FOR SINGLE MASTER CYLINDER

9017908136

main90179-08136

9412041000

main94120-41000

24 parts on this diagram · 2 diagrams in section
