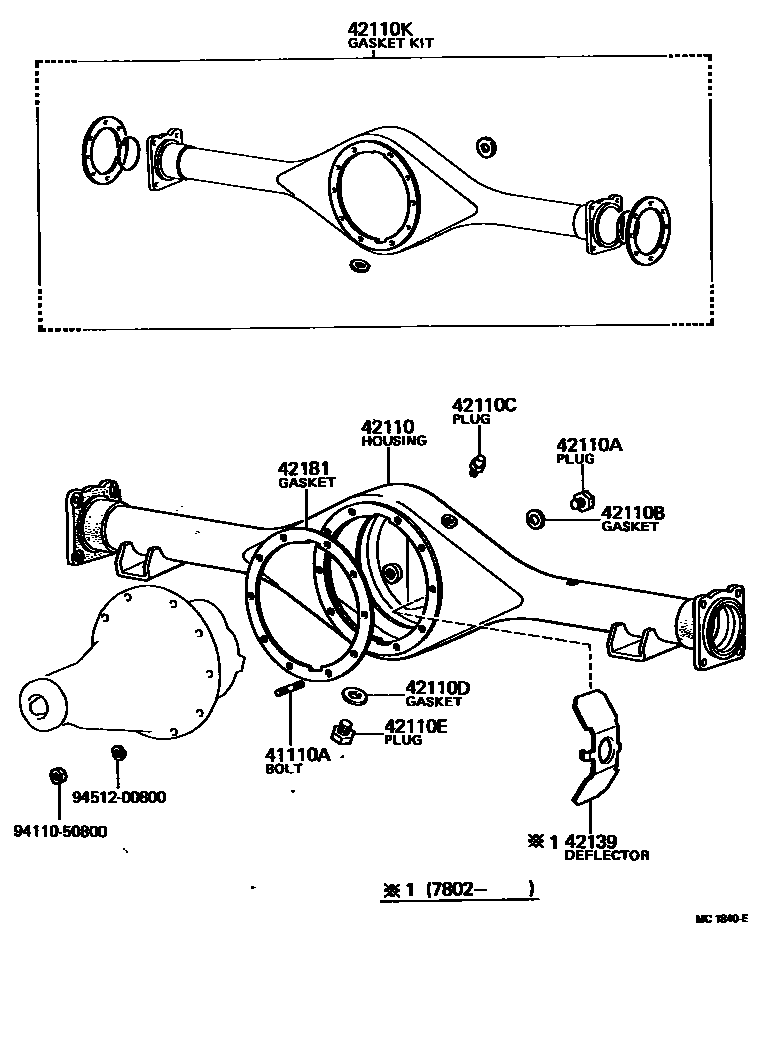

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-35031iRN20,25197205-197801

R=39:8=4.875

sub41110-35032

main41110-35032iRN20,25197801-197807

R=39:8=4.875

sub41110-35081

main41110-35050iRN22,27197404-197801

R=35:8=4.375

sub41110-35051

main41110-35051iRN22,27197801-197807

R=35:8=4.375

sub41110-35071

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-08196iRN2#197205-197807

L=34,S=14,L=34,S=14&14

sub90116-08333

main90116-08226iRN2#197205-197807

S=14 & 14,L=42,L=42,S=14&14

42110HOUSING ASSY, REAR AXLE

main42110-35040iRN2#197205-197511

sub42110-35041

main42110-35041iRN22..5F197511-197807

main42110-35061iRN20,25..LHD197704-197807

W/L.S.P.V.

main42110-35080iRN22197408-197511

sub42110-35081

main42110-35081iRN22,27..RHD197511-197807

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18049iRN2#197205-197807

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iRN2#197205-197807

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90930-03031iRN2#197205-197807

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iRN2#197205-197807

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18057iRN2#197205-197807

42110KGASKET KIT, DIFFERENTIAL CARRIER

main04412-35020iRN2#197205-197807

sub04412-35010

42139DEFLECTOR, REAR AXLE HOUSING OIL

main42139-35010iRN2#197802-197807

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-35010iRN2#197205-197807

9411050800

main94110-50800

9451200800

main94512-00800

13 parts on this diagram · 2 diagrams in section
