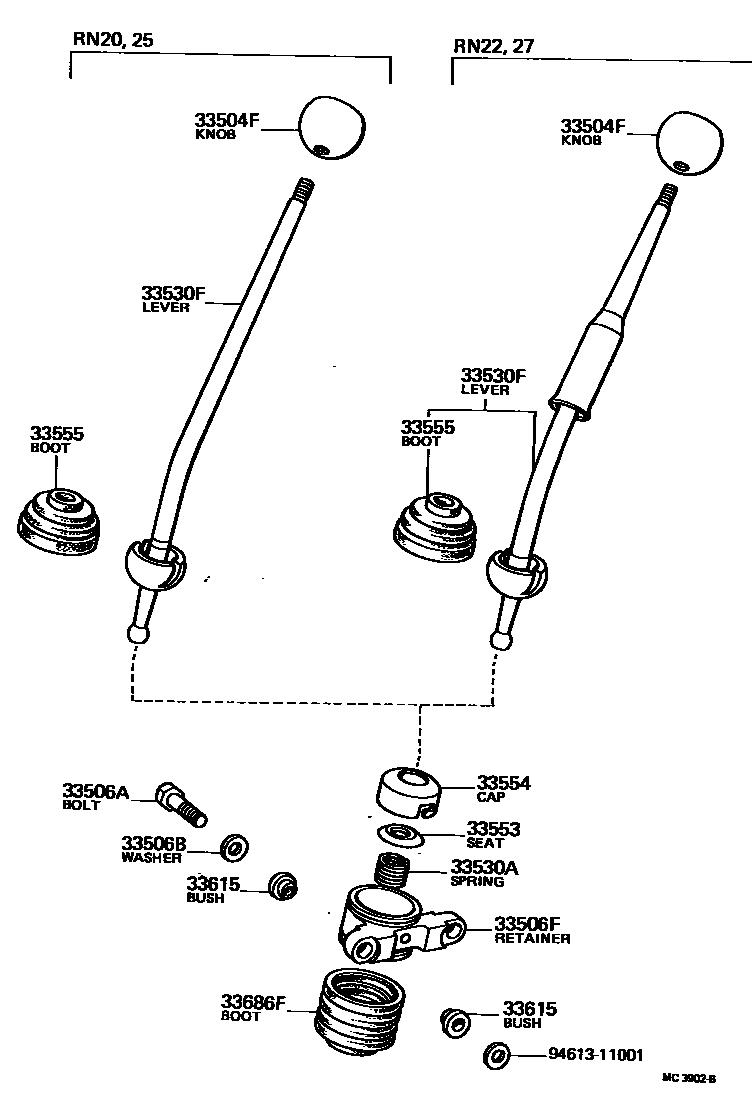

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12090iRN27197610-197807

WOODEN GRAIN

main33504-20041iRN22..5F197702-197807

WOODY

sub33504-14050

main33504-22041iRN22..ATM197404-197807

main33504-31010iRN2#..4F197205-197512

main33504-31011iRN20,22,25..4F197511-197807

sub33504-14040

33506ABOLT (FOR CONTROL SHIFT LEVER RETAINER)

main90109-10020iRN2#..4F197205-197807

33506BWASHER, PLATE (FOR CONTROL SHIFT LEVER RETAINER)

main90201-11257iRN2#..4F197205-197807

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-20030iRN2#..4F197205-197807

main33570-14011iRN22..5F197702-197807

sub33570-35010

sub33143-20031

sub90109-08054

33530ASPRING, COMPRESSION (FOR SHIFT LEVER)

main90501-26629iRN20,25..4F197205-197807

main90502-18057iRN22..5F197702-197802

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33503-20040iRN22..ATM197404-197708

main33503-22120iRN22..ATM197708-197807

main33530-35010iRN22..4F197404-197511

main33530-35011iRN22,27..4F197511-197807

main33530-35022iRN22..5F197702-197807

main33541-35060iRN2#..LHD197205-197304

main33541-35061iRN20,25..LHD197304-197511

main33541-35062iRN20,25..LHD197511-197807

main33541-35080iRN2#..RHD..4F197211-197306

main33541-35081iRN20,25..RHD..4F197306-197512

main33541-35082iRN20,25..RHD..4F197512-197807

33553SEAT, SHIFT LEVER SPRING

main33553-30010iRN20,25..4F197205-197807

main33556-20010iRN22..5F197802-197807

T=3.0

sub33556-35040

main33556-22010iRN22..5F197702-197807

T=6.5

33554CAP, SHIFT LEVER

main33554-30011iRN20,25..4F197205-197807

33555BOOT, SHIFT LEVER

main33555-22020iRN22..ATM197404-197807

sub33555-22021

main33555-30030iRN2#..4F197205-197807

main33555-31011iRN22..5F197702-197807

33615BUSH, CONTROL SHIFT LEVER RETAINER

main33615-20011iRN2#..4F197205-197807

33686FBOOT, CONTROL SHAFT DUST (FOR FLOOR SHIFT RETAINER)

main33555-30020iRN2#..4F197205-197807

9461311001

main94613-11001

12 parts on this diagram · 4 diagrams in section
