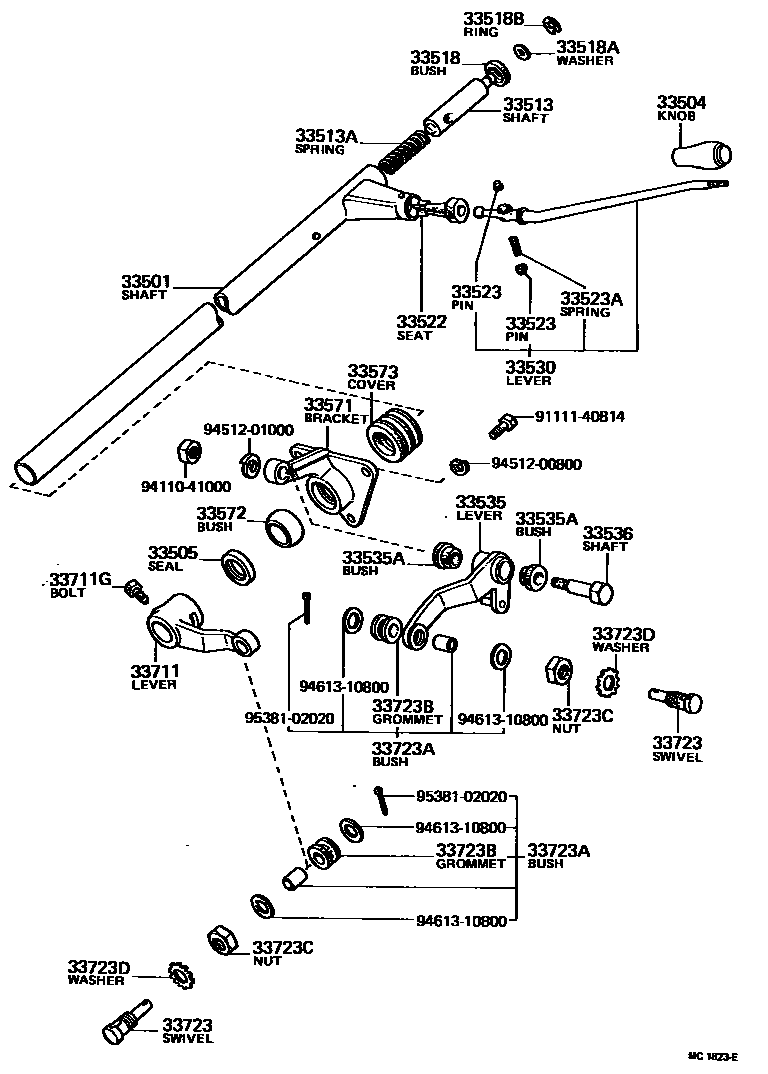

CONTROL SHAFT & CROSSSHAFT
33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)
33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)
33505SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)
33513SHAFT, CONTROL SHAFT BRACKET, UPPER
33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)
33518BUSH, UPPER CONTROL SHAFT PIECE
33518AWASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH)
33518BRING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)
33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)
33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)
33523ASPRING, COMPRESSION
33530LEVER ASSY, SHIFT (FOR COLUMN SHIFT)
sub33541-35050
33535LEVER, CONTROL SELECT (FOR COLUMN SHIFT)
33535ABUSH (FOR CONTROL SELECT LEVER)
33536SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)
33571BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)
33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)
33573COVER, CONTROL SHAFT DUST, LOWER
33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)
33711GBOLT, CONTROL SHAFT LEVER LOCK
33723SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)
33723ABUSH (FOR COLUMN SHIFT CONTROL SHAFT)
33723BGROMMET (FOR COLUMN SHIFT CONTROL SHAFT)
33723CNUT, HEXAGON (FOR CONTROL ROD SETTING)
33723DWASHER, TOOTHED (FOR CONTROL ROD SETTING)
9111140814
main91111-40814
9411041000
main94110-41000
9451200800
main94512-00800
9451201000
main94512-01000
9461310800
main94613-10800
9538102020
main95381-02020
31 parts on this diagram · 3 diagrams in section
