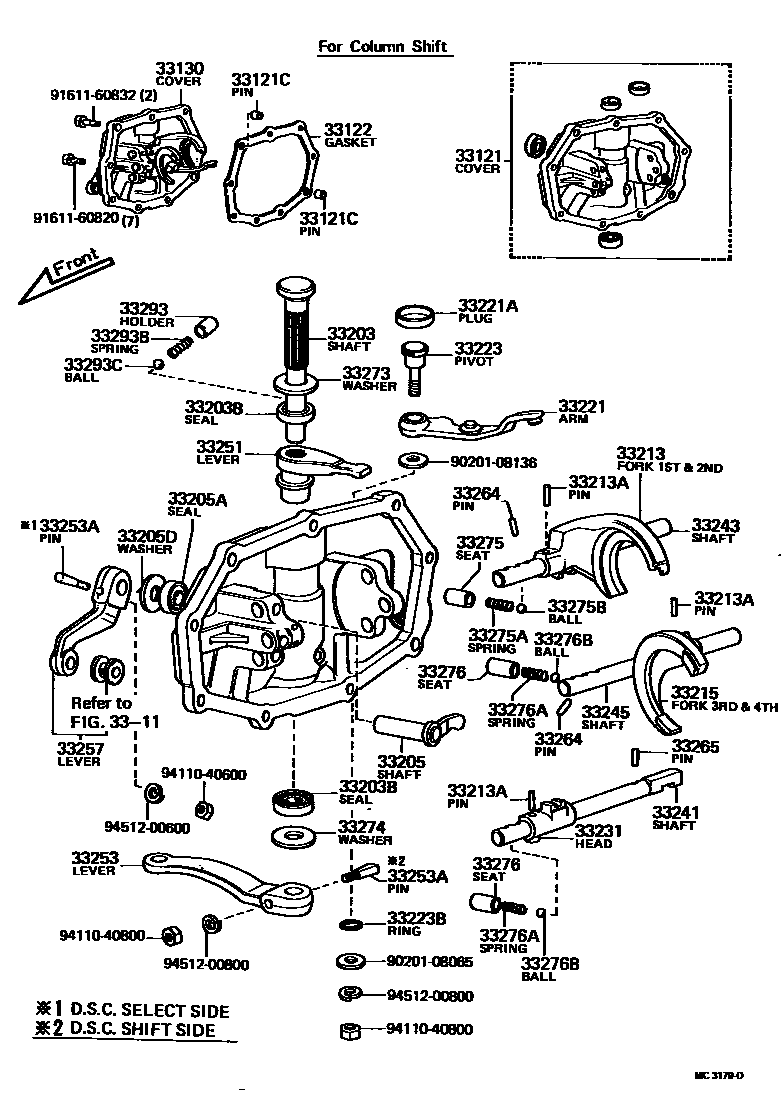

GEAR SHIFT FORK & LEVER SHAFT (MTM)
3311
33121COVER, MANUAL TRANSMISSION CASE
FOR L/SHIFT POINT SENSOR
ENGLAND SPEC.
AUSTRALIA N.S.W. SPEC.
33121CPIN(FOR TRANSMISSION CASE COVER)
L=11,OD=11
33122GASKET, MANUAL TRANSMISSION CASE COVER
33130COVER ASSY, TRANSMISSION CASE
33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)
TB 13 25 7 FOR UPPER
VB 15 22 4 FOR LOWER
33205SHAFT SUB-ASSY, SELECT LEVER
33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
33205DWASHER(FOR OUTER LEVER OIL SETTING)
33213FORK, 1ST & 2ND SHIFT
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33221ARM, REVERSE SHIFT
33221APLUG, TIGHT(FOR REVERSE SHIFT ARM)
sub96411-42500
33223PIVOT, SHIFT ARM
33223BRING, O(FOR SHIFT ARM PIVOT)
33231HEAD, REVERSE SHIFT
33245SHAFT, 3RD & 4TH SHIFT FORK
FOR L/SHIFT POINT SENSOR
ENGLAND SPEC.
AUSTRALIA N.S.W. SPEC.
FOR W/SHIFT POINT SENSOR
33251LEVER, SHIFT & SELECT
ENGLAND SPEC.
33253LEVER, SHIFT OUTER, NO.1
33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)
SELECT S1DE L=34
33257LEVER, SELECT OUTER
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
OD=6,L=16
33265PIN, SHIFT INTERLOCK, NO.2
L=28.8,OD=6.0
33273WASHER, SHIFT LEVER SHAFT HOUSING, NO.1
33274WASHER, SHIFT LEVER SHAFT HOUSING, NO.2
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
L=7.5,OD=15
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=16.5
L=15.2
33275BBALL, SHAFT DETENT
33276SEAT, SHIFT DETENT BALL SPRING, NO.2
33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
33276BBALL, SHIFT DETENT, NO.2
33293HOLDER, REVERSE RESTRICT BALL
33293BSPRING, COMPRESSION (FOR REVERSE RESTRICT BALL)
33293CBALL (FOR REVERSE RESTRICT)
9020108065
main90201-08065
9020108136
main90201-08136
9161160820
main91611-60820
9161160832
main91611-60832
9411040600
main94110-40600
9411040800
main94110-40800
9451200600
main94512-00600
9451200800
main94512-00800
46 parts on this diagram · 3 diagrams in section
