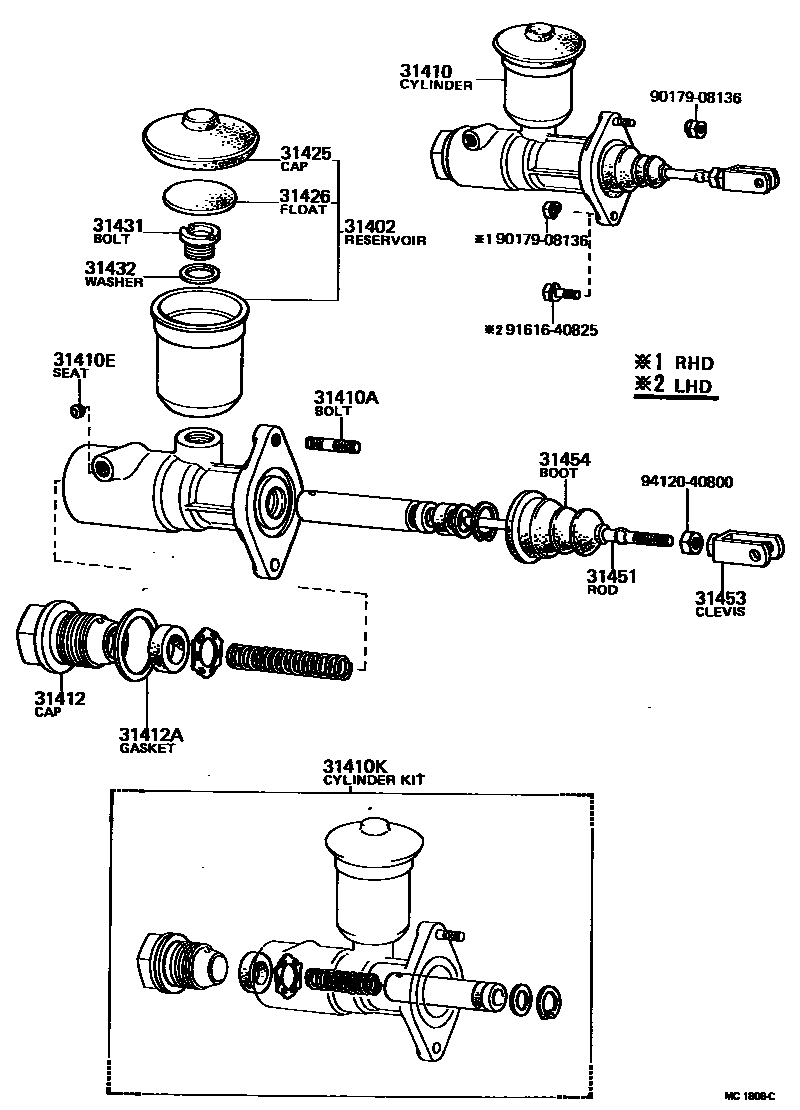

CLUTCH MASTER CYLINDER

0001 1 0002 1

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main47202-12010iRN2#..MTM197205-197807

sub47202-12050

31410CYLINDER ASSY, CLUTCH MASTER

main31410-35070iRN2#..MTM197205-197408

main31410-35071iRN2#..MTM197408-197807

sub31410-35072

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08205iRN2#..MTM197205-197807

31410ESEAT, UNION(FOR CLUTCH MASTER CYLINDER)

main90410-03015iRN2#..MTM197205-197802

31410KCYLINDER KIT, CLUTCH MASTER

main04311-20033iRN2#..MTM197205-197408

main04311-20050iRN2#..MTM197408-197807

sub04311-14011

31412CAP, CLUTCH MASTER CYLINDER

main31412-22010iRN2#..MTM197205-197408

31412AGASKET(FOR CLUTCH MASTER CYLINDER CAP)

main90430-28137iRN2#..MTM197205-197408

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-12011iRN2#..MTM197205-197807

sub31440-35010

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iRN2#..MTM197205-197807

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iRN2#..MTM197304-197807

main47231-35010iRN2#197205-197304

sub47231-30010

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iRN2#..MTM197304-197807

main47232-35010iRN2#197205-197304

sub47232-30010

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22040iRN2#..MTM197205-197408

main31451-22050iRN2#..MTM197408-197807

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main47264-10011iRN2#..MTM197205-197807

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iRN2#..MTM197408-197807

main47265-20010iRN2#..MTM197205-197408

9017908136

main90179-08136

9161640825

main91616-40825

9412040800

main94120-40800

17 parts on this diagram · 2 diagrams in section
