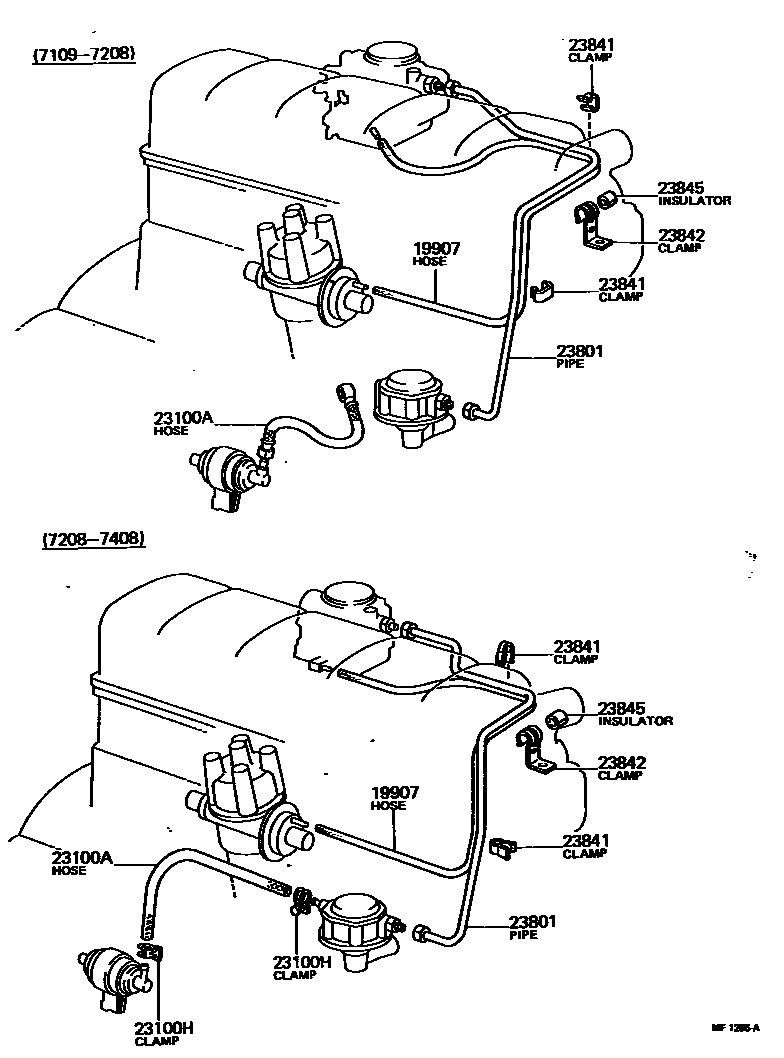

FUEL PIPE & CLAMP

0001 1 0002 1 0003 1 0004 1

19907HOSE, VACUUM, NO.1

main90445-07007i18R..RN22197404-197511

main90445-07106i12R..RN20,25197205-197511

sub95411-19995

main95411-10195i12R#..RN20,25197511-197807

H,L=750

sub90999-92004

main95411-19995i18R..RN22197511-197701

H,L=950

sub90999-92004

main95411-19995i18R..RN22,27197701-197807

H,L=850

sub90999-92004

23100AHOSE, FUEL

main95324-07020i12R..RN2#197205-197208

sub90999-99039

main95331-06032i18R..RN22197408-197508

sub95332-06032

main95331-06034i12R..RN20,25197408-197705

sub95332-06034

main95331-08020i12R..RN20,25197208-197408

sub95332-08020

main95331-08024i18R..RN22197404-197408

sub95332-08024

main95332-06024i18R..RN22,27197801-197807

sub95332-06030

main95332-06028i18R..RN22,27197508-197801

sub95332-06030

main95332-06034i12R#..RN20,25197705-197807

sub95332-06040

23100HCLIP(FOR FUEL HOSE)

main90467-13138i12R..RN2#197210-197408

sub96132-30800

main96113-10150i12R..RN2#197208-197210

main96132-30600i12R#,18R..RN2#197408-197807

sub96132-51100

main96132-30800i12R..RN20,25197402-197408

sub96132-51300

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23801-31040i12RM..RN20197205-197807

sub23811-31040

sub90402-13041

sub96395-71400

main23801-31042i12R..RN20,25197511-197807

sub23811-31042

sub90402-13041

sub96395-71400

main23811-34020i18R..RN22197404-197509

main23811-34030i18R..RN22197509-197611

sub23811-34031

sub23842-34041

main23811-34031i18R..RN22,27197611-197807

23841CLAMP, FUEL PIPE(HOSE), NO.1

main90468-04007i12R..RN20,25197205-197511

23842CLAMP, FUEL PIPE(HOSE), NO.2

main23841-40010i12RM..RN20197205-197807

main23842-31010i12R..RN20,25197511-197807

main23842-34040i18R..RN22197509-197611

main23842-34041i18R..RN22,27197611-197807

main90461-10407i18R..RN22197404-197509

23845INSULATOR, FUEL PIPE

main23845-20010i12R..RN20,25197205-197807

7 parts on this diagram · 4 diagrams in section
