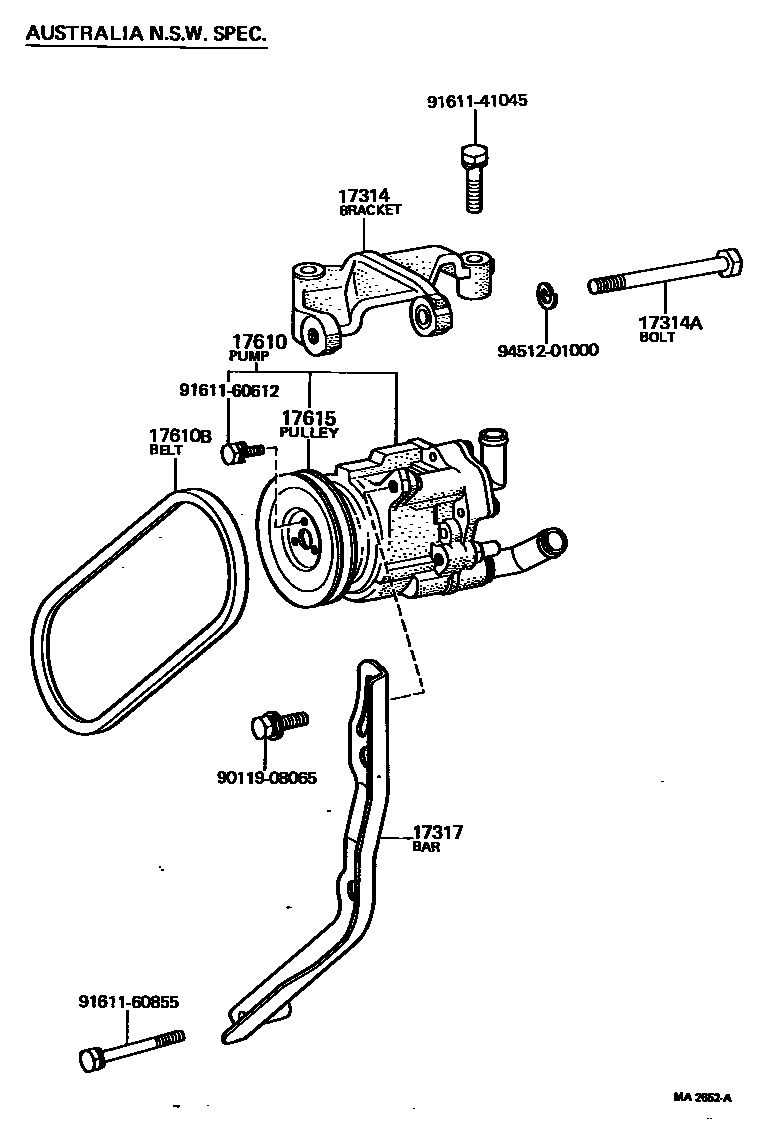

AIR PUMP

0001 1 0002 1

17314BRACKET, AIR PUMP

main17314-31010i12R..RN20,25..4H197702-197807

AUSTRALIA N.S.W. SPEC.

main17314-34020i18R..RN27197711-197807

18RC

17314ABOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING)

main90101-10080i18R..RN27197711-197807

18RC

main91121-51090i12R..RN20,25..4H197702-197807

AUSTRALIA N.S.W. SPEC.

17317BAR, AIR PUMP ADJUSTING, NO.1

main17031-31010i12R..RN20,25..4H197702-197807

AUSTRALIA N.S.W. SPEC.

main17317-34020i18R..RN27197711-197807

18RC

17610PUMP ASSY, AIR

main17610-31030i12R..RN20,25..4H197702-197807

AUSTRALIA N.S.W. SPEC.

main17610-34020i18R..RN27197711-197807

18RC

sub17610-34050

17610BBELT, V(FOR AIR PUMP)

main99521-10770i12R..RN20,25..4H197702-197807

AUSTRALIA N.S.W. SPEC.

sub99321-00770

main99521-10780i18R..RN27197711-197807

18RC

sub99321-50780

17615PULLEY(FOR AIR PUMP)

main17615-31010i12R..RN20,25..4H197702-197807

AUSTRALIA N.S.W. SPEC.

main17615-34010i18R..RN27197711-197807

18RC

9011908065

main90119-08065

9161141045

main91611-41045

9161160612

main91611-60612

9161160855

main91611-60855

9451201000

main94512-01000

11 parts on this diagram · 2 diagrams in section
