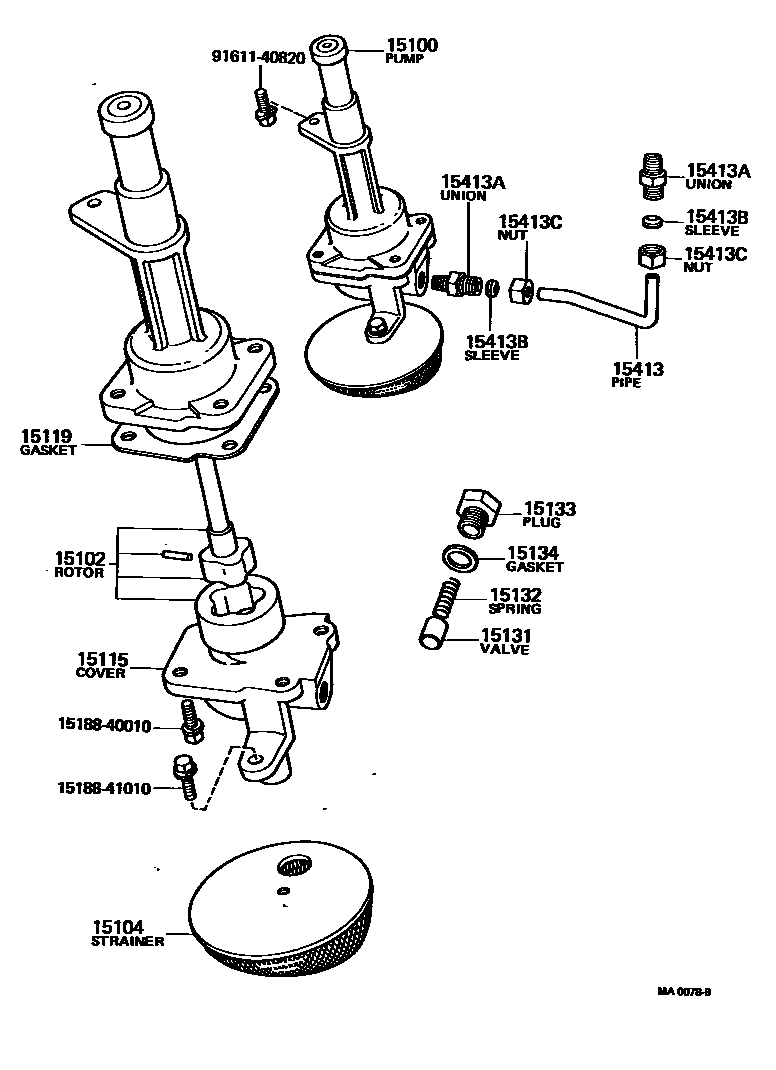

ENGINE OIL PUMP

0001 1 0002 1 0003 1

15100PUMP ASSY, OIL

main15100-31030i12R#..RN20,25197212-197807

main15100-33011i18R..RN22,27197404-197807

sub15100-33012

main15200-31011i12R..RN2#197205-197212

15102ROTOR SET, OIL PUMP

main15101-31011i12R#..RN20,25197205-197807

main15102-33011i18R..RN22,27197404-197802

sub15102-36010

main15102-36010i18R..RN22,27197802-197807

15104STRAINER SUB-ASSY, OIL

main15103-31010i12R..RN2#197205-197212

main15104-31030i12R#..RN20,25197212-197807

main15104-33010i18R..RN22,27197404-197807

15115COVER, OIL PUMP

main15012-31031i12R#..RN20,25197705-197807

sub15115-31030

main15115-31011i12R..RN2#197205-197308

main15115-31030i12R..RN20,25197308-197705

15119GASKET, OIL PUMP COVER

main15119-40010i12R..RN2#197205-197212

15131VALVE, OIL PUMP RELIEF

main15131-40010i12R#..RN20,25197205-197807

main15131-41010i18R..RN22,27197404-197807

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i12R#,18R..RN2#197205-197807

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i12R,18R..RN2#197205-197807

main15133-41030i12R#..RN20,25197705-197807

sub15133-20010

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i12R,18R..RN2#197205-197802

15413PIPE, OIL PUMP OUTLET

main15413-31010i12R#..RN20,25197205-197807

15413AUNION(FOR OIL PUMP OUTLET PIPE)

main90404-16008i12R#..RN20,25197205-197807

15413BSLEEVE, BALL(FOR OIL PUMP OUTLET PIPE)

main90410-11005i12R#..RN20,25197205-197807

15413CNUT, UNION(FOR OIL PUMP OUTLET PIPE)

main90402-16042i12R#..RN20,25197205-197807

1518840010GASKET, OIL PUMP

main15188-40010

1518841010GASKET, OIL PUMP

main15188-41010

9161140820

main91611-40820

16 parts on this diagram · 3 diagrams in section
