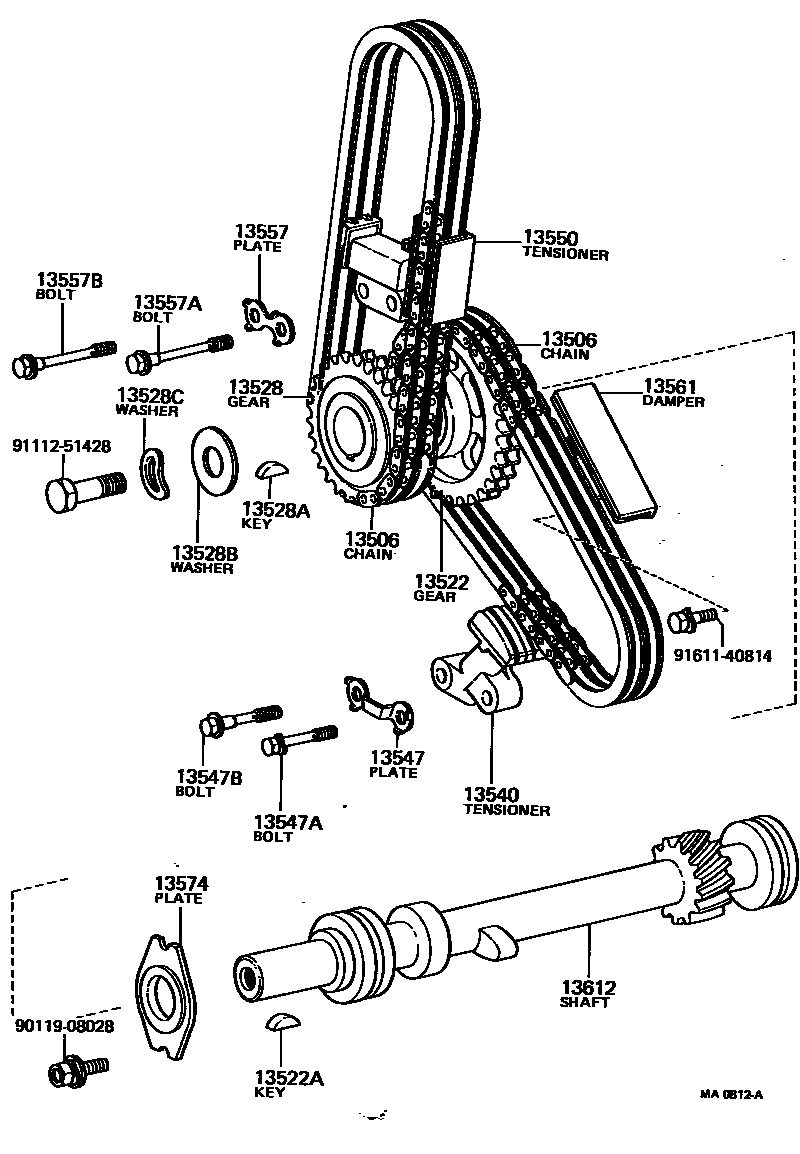

TIMING CHAIN
13506CHAIN SUB-ASSY
13522GEAR, PUMP DRIVE SHAFT
N=36
13522AKEY, WOODRUFF(FOR PUMP DRIVE SHAFT GEAR)
13528GEAR, CAMSHAFT DRIVE
N=24
13528AKEY, WOODRUFF(FOR CAMSHAFT DRIVE GEAR)
13528BWASHER, PLATE(FOR CAMSHAFT DRIVE GEAR SET)
13528CWASHER, WAVE(FOR CAMSHAFT DRIVE GEAR SET)
13540TENSIONER ASSY, CHAIN, NO.1
13547PLATE, TENSIONER BOLT LOCK, NO.1
13547ABOLT(FOR TENSIONER LOCK PLATE SET)
13547BBOLT, UNION(FOR TENSIONER LOCK PLATE)
13550TENSIONER ASSY, CHAIN, NO.2
13557PLATE, TENSIONER BOLT LOCK, NO.2
13557ABOLT(FOR TENSIONER LOCK PLATE SET)
13557BBOLT, UNION(FOR TENSIONER LOCK PLATE)
13574PLATE, PUMP DRIVE SHAFT
13612SHAFT, PUMP DRIVE
9011908028
main90119-08028
9111251428
main91112-51428
9161140814
main91611-40814
21 parts on this diagram · 2 diagrams in section
