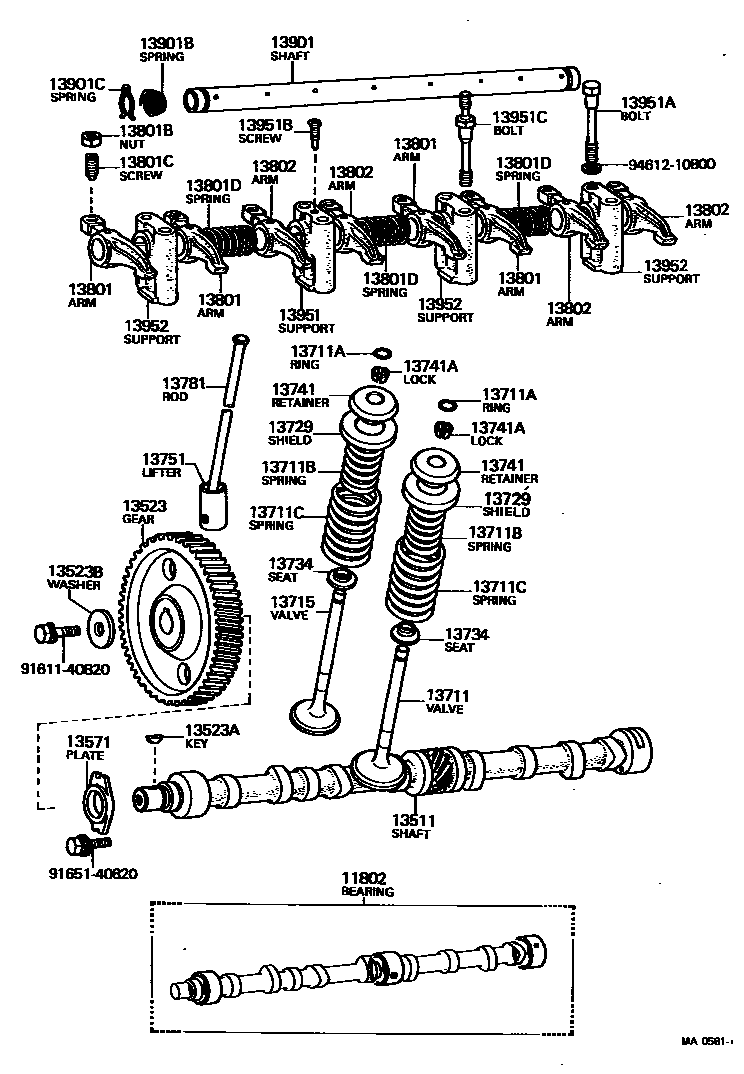

CAMSHAFT & VALVE
11802BEARING SET, CAMSHAFT
STD
STD,STD
U/S 0.125
U/S 0.25
U/S 0.25,U/S 0.125
U/S 0.50
U/S 0.50,U/S 0.25
13523GEAR OR SPROCKET, CAMSHAFT TIMING
N=50
N=50
N=24
13523AKEY, WOODRUFF(FOR TIMING GEAR)
13523BWASHER, PLATE(FOR TIMING GEAR)
13571PLATE, CAMSHAFT THRUST
13711VALVE, INTAKE
13711BSPRING, COMPRESSION(FOR INNER)
WD=2.6,CW=7.75
WD=2.6,CW=7.5
WD=2.6,CW=7.5
WD=4.5,CW=6.25
13711CSPRING, COMPRESSION(FOR OUTER)
WD=4.5,CW=5.55
WD=4.5,CW=6.25
13715VALVE, EXHAUST
13729SHIELD, VALVE STEM OIL
13734SEAT, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13801DSPRING, COMPRESSION(FOR ROCKER ARM)
WD=1.6,CW=9
WD=1.6,CW=7.5
13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13901BSPRING, CONICAL(FOR VALVE ROCKER SHAFT)
13901CSPRING, RETAINER(FOR VALVE ROCKER SHAFT)
13951SUPPORT, VALVE ROCKER, NO.1
13951ABOLT(FOR ROCKER SUPPORT SET)
8-1.25PX65-16
8-1.25PX75-16
8-1.25PX71-16
13951BSCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)
13951CBOLT, STUD(FOR ROCKER SUPPORT)
L=109.5,S=18&16
L=115,S=13&48
9161140820
main91611-40820
9165140820
main91651-40820
9461210800
main94612-10800
