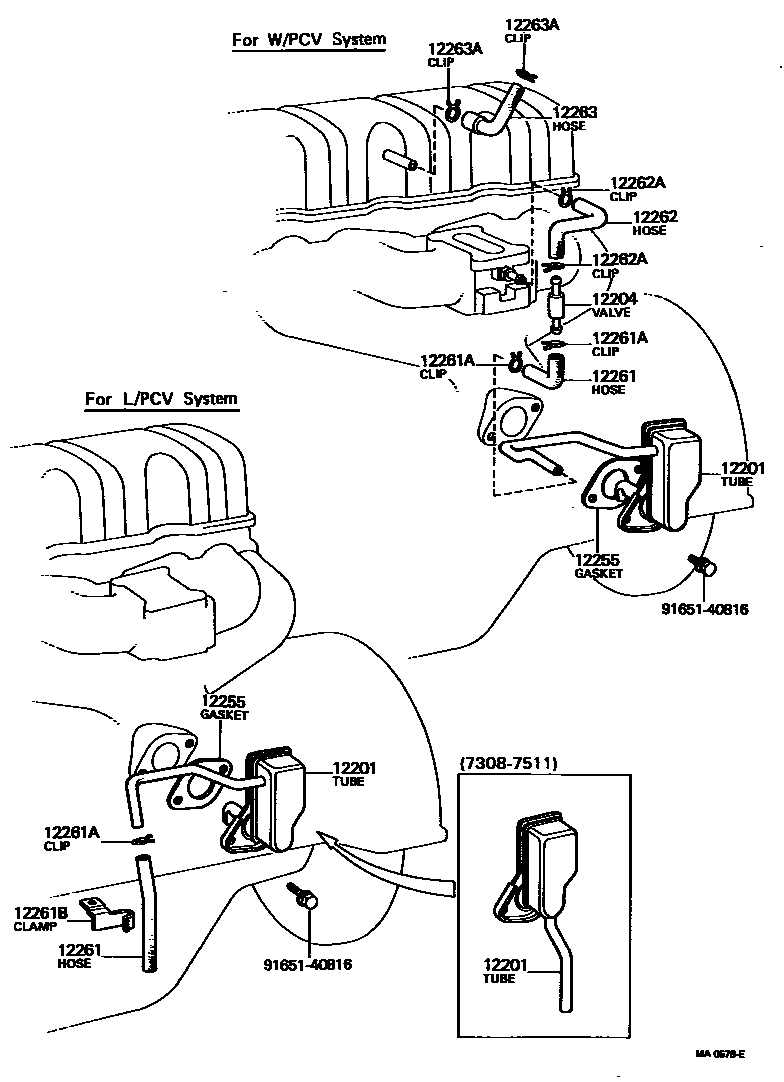

VENTILATION HOSE
12201TUBE SUB-ASSY, VENTILATION
W/PCV
L/PCV
12204VALVE SUB-ASSY, VENTILATION
12255GASKET, VENTILATION
12261HOSE, VENTILATION
L/PCV
W/PCV
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
12261BCLIP OR CLAMP(FOR VENTILATION HOSE)
L/PCV
12262ACLIP(FOR VENTILATION HOSE NO.2)
12263HOSE, VENTILATION, NO.3
W/PCV
W/PCV
W/PCV
12263ACLIP(FOR VENTILATION HOSE)
ID=19
9165140816
main91651-40816
11 parts on this diagram · 3 diagrams in section
