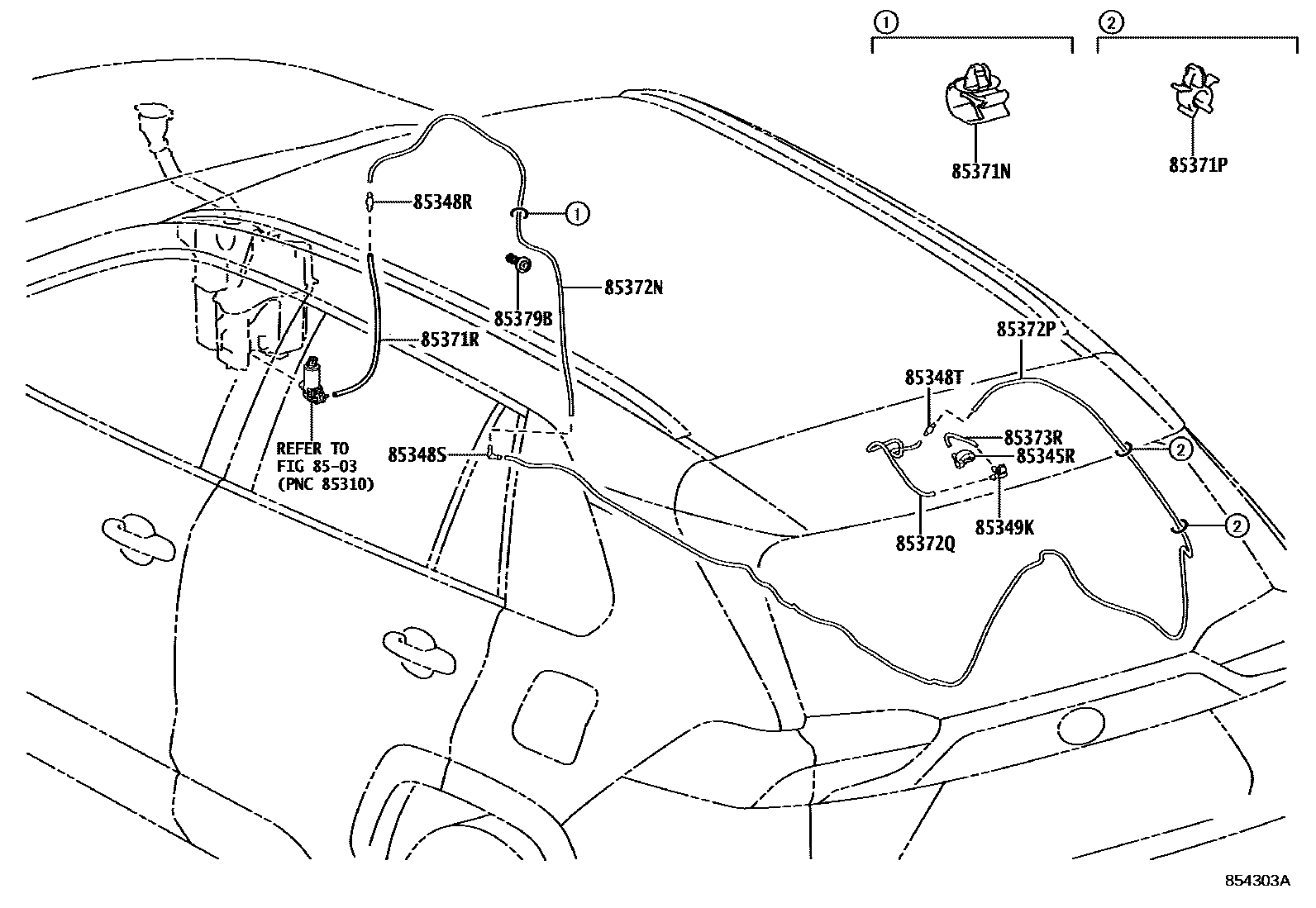

REAR WASHER
8503
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85349KJOINT, REAR WASHER ELBOW, NO.2
85371NCLAMP, REAR WASHER HOSE
85371PCLAMP, REAR WASHER HOSE, NO.2
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=400,COLD AREA SPEC-WITH & WITH(*EHL)
L=400
L=400,COLD AREA SPEC-WITH
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1300
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=5000(*H,L=4500)
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=480
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=125
85379BGROMMET, WASHER, A
14 parts on this diagram · 1 diagram in section
