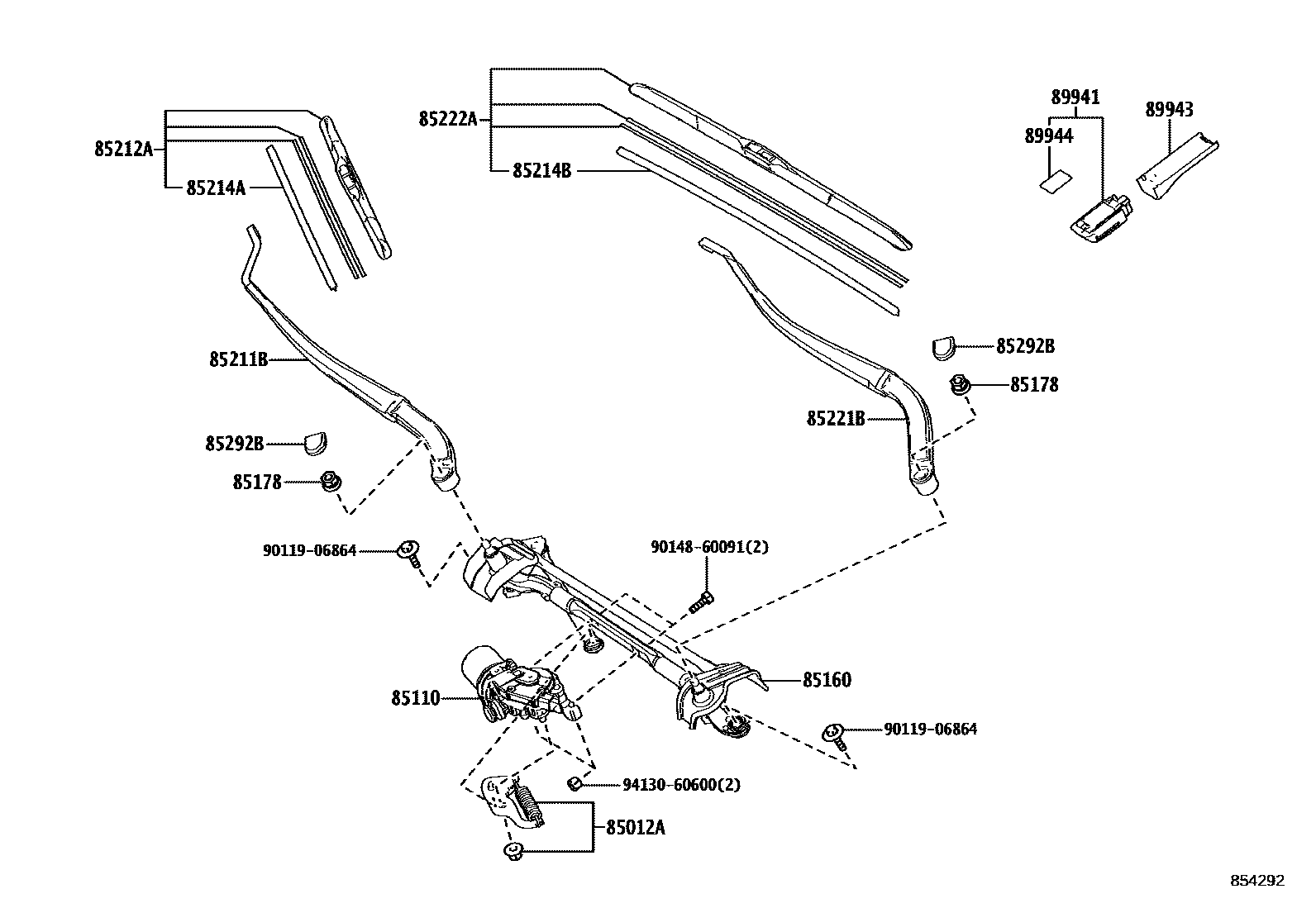

WINDSHIELD WIPER

0001 1 0002 1

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-50010iAXAP54..RHD202006-202310

main85012-58030iAXAP54..LHD202006-202310

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-42270iAXAP54..LHD202006-202310

main85110-42280iAXAP54..RHD202006-202310

85160LINK ASSY, WINDSHIELD WIPER

main85150-42240iAXAP54..LHD202006-202310

main85150-42260iAXAP54..RHD202006-202310

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iAXAP54202006-202310

85211BARM, FRONT WIPER, RH

main85211-42210iAXAP54..LHD202006-202310

main85211-42220iAXAP54..RHD202006-202201

sub85211-42221

main85211-42221iAXAP54..RHD202202-202310

85212ABLADE, FR WIPER, RH

main85212-42190iAXAP54..LHD202006-202310

main85212-42210iAXAP54..RHD202006-202310

85214ARUBBER, WIPER, RH

main85214-28090iAXAP54..LHD202006-202310

main85214-52110iAXAP54..RHD202006-202310

85214BRUBBER, WIPER, LH

main85214-28090iAXAP54..RHD202006-202310

main85214-52110iAXAP54..LHD202006-202310

85221BARM, FRONT WIPER, LH

main85221-42220iAXAP54..LHD202006-202201

sub85221-42221

main85221-42221iAXAP54..LHD202202-202310

main85221-42230iAXAP54..RHD202006-202310

85222ABLADE, FR WIPER, LH

main85222-42190iAXAP54..RHD202006-202310

main85222-42200iAXAP54..LHD202006-202310

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iAXAP54202006-202310

89941SENSOR, RAIN

main89941-42020iAXAP54202006-202310

89943COVER, RAIN SENSOR

main89943-42040iAXAP54202006-202310

89944TAPE, RAIN SENSOR

main89944-42020iAXAP54202006-202310

9011906864

main90119-06864

9014860091

main90148-60091

9413060600

main94130-60600

17 parts on this diagram · 2 diagrams in section
