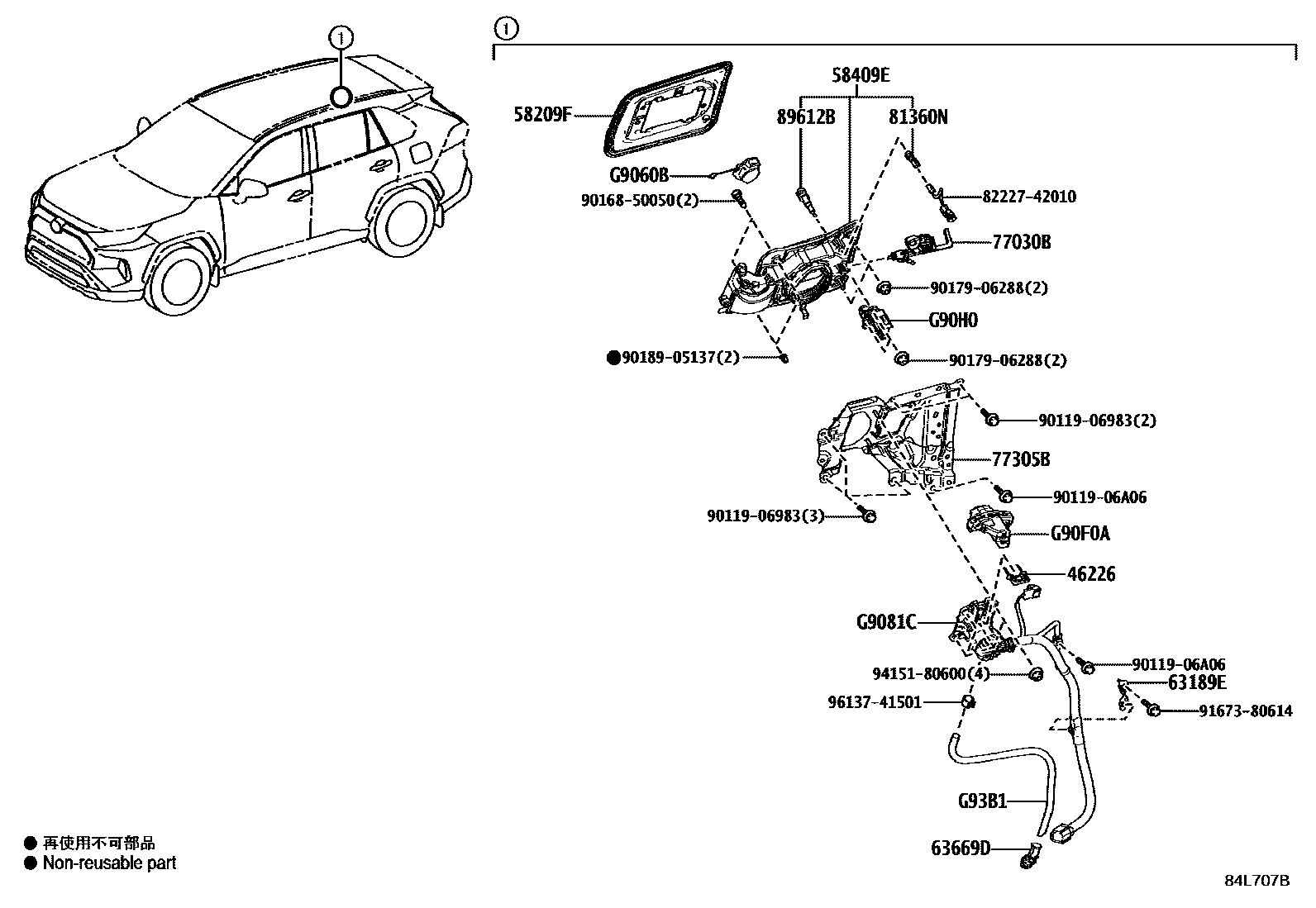

DC/DC CONVERTER & CHARGER(BEV OR FCEV)

0001 1BATTERY CHARGER LID 0002 1EV CHARGER(3.3KW)&EV CHARGER 0003 1EV CHARGER(6.6KW)&EV CHARGER 0004 1DC/DC CONVERTER

46226PIN, CONNECTOR

main46226-47010iAXAP54¥230202006-202310

58209FLID SUB-ASSY, BATTERY SERVICE OPENING

main58209-42050iAXAP54¥2,680202006-202310

58409ELID SUB-ASSY, BATTERY CHARGER CONNECTOR OPENING

main58409-42010iAXAP54¥11,100202006-202211

sub58409-42011¥10,000

main58409-42011iAXAP54¥10,000202211-202310

63189EBRACKET, WIRING HARNESS CONNECTOR

main63189-42011iAXAP54¥280202006-202310

63669DGROMMET, DRAIN HOSE

main63669-30040iAXAP54¥400202006-202310

77030BLOCK ASSY, CHARGE LID W/MOTOR

main77030-42040iAXAP54¥5,900202006-202310

77305BLID SUB-ASSY, EV CHARGER

main77305-42010iAXAP54¥3,070202006-202310

81360NLAMP ASSY, SPOT

main81360-47010iAXAP54¥1,140202006-202310

89612BLIFTER, PUSH

main89612-42010iAXAP54¥460202006-202310

G9060BCOVER, CONNECTOR

main82821-42240iAXAP54202006-202310

G9081CCABLE, AC CHARGER INLET

mainG908142040iAXAP54202006-202105

subG9081-42041

mainG908142041iAXAP54202106-202307

mainG908142042iAXAP54202308-202310

G90F0ALOCK ASSY, CABLE EV CHARGER

mainG90F047100iAXAP54202006-202310

G90H0INDICATOR ASSY, EV CHARGER LID

mainG90H078010iAXAP54202006-202310

G93B1HOSE, EV CHARGE CONNECTOR DRAIN, NO.1

mainG93B142010iAXAP54202006-202310

8222742010WIRE, SPOT LAMP

main82227-42010¥360

9011906983

main90119-06983¥60

9011906A06

main90119-06A06¥60

9016850050

main90168-50050¥70

9017906288

main90179-06288¥70

9018905137

main90189-05137¥80

9167380614

main91673-80614¥60

9415180600

main94151-80600¥60

9613741501

main96137-41501¥120

23 parts on this diagram · 4 diagrams in section
