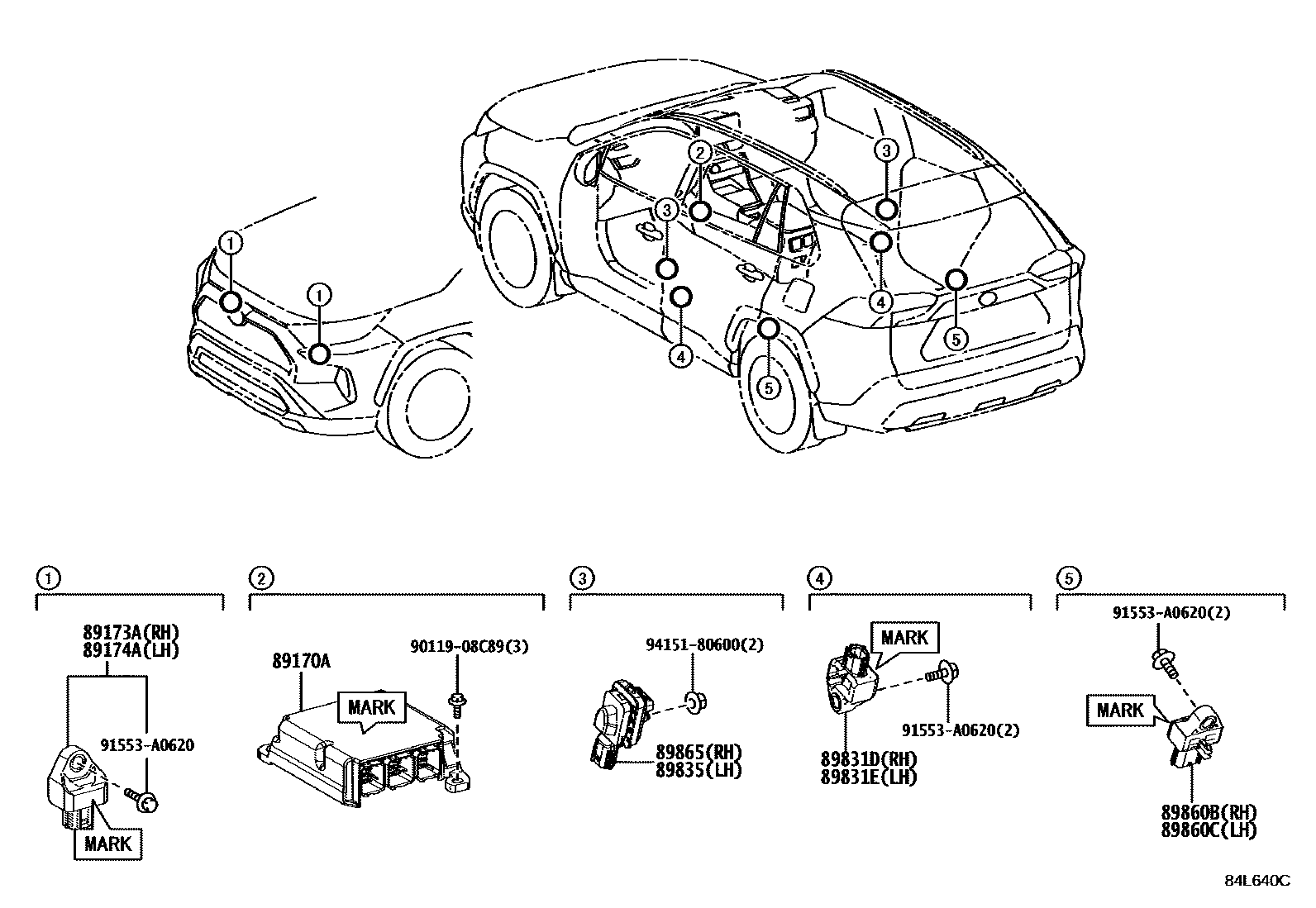

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-42720iAXAP54..LHD202006-202210

*614

main89170-42730iAXAP54..RHD202006-202210

*614

main89170-42C50iAXAP54..LHD202305-202310

*614,MARK89170-42C50

main89170-42C60iAXAP54..RHD202310

89173ASENSOR, AIRBAG, FRONT RH

main89173-19515iAXAP54202306-202310

MARK=89173-11010

main89173-59335iAXAP54202006-202210

89174ASENSOR, AIRBAG, FRONT LH

main89173-19515iAXAP54202306-202310

MARK=89173-11010

main89173-59335iAXAP54202006-202210

89831DSENSOR, FLOOR SIDE AIRBAG, RH

main89831-42020iAXAP54202006-202210

main89831-47050iAXAP54202305-202310

MARK=89831-47050

89831ESENSOR, FLOOR SIDE AIRBAG, LH

main89831-42020iAXAP54202006-202210

main89831-47050iAXAP54202305-202310

MARK=89831-47050

89835SENSOR, DOOR SIDE AIRBAG, LH

main8983A-12030iAXAP54202310

main8983A-52010iAXAP54202006-202101

main8983A-52011iAXAP54202102-202210

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-28040iAXAP54202310

main89831-52130iAXAP54202210-202305

MARK=89831-52130

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-28040iAXAP54202310

main89831-52130iAXAP54202006-202210

89865SENSOR, DOOR SIDE AIRBAG, RH

main8983A-12030iAXAP54202310

main8983A-52010iAXAP54202006-202101

main8983A-52011iAXAP54202102-202210

9011908C89

main90119-08C89

91553A0620

main91553-A0620

9415180600

main94151-80600

12 parts on this diagram · 1 diagram in section
