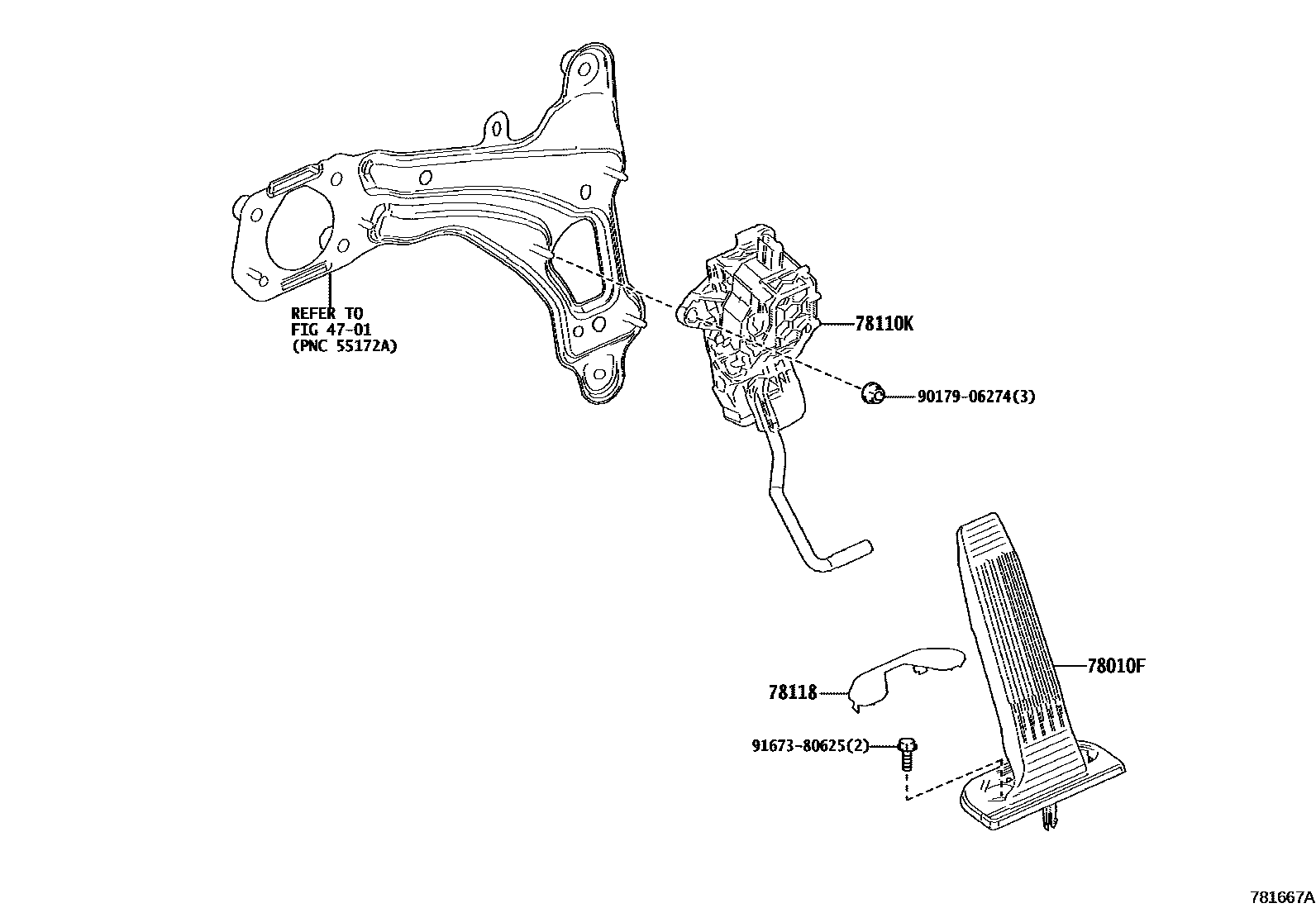

ACCELERATOR LINK

0001 1 0002 1

4701

78010FPEDAL ASSY, ACCELERATOR

main78101-33060iAXAP54202006-202111

main78101-33061iAXAP54202112-202210

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-33140supersedes 78110-33131iAXAP54..LHD202006-202010

SPEED WARNING-WITH(ASL)

main78110-33141supersedes 78110-33131iAXAP54..LHD202310

SPEED WARNING-WITH(ASL)

main78110-42070supersedes 78110-42071iAXAP54..RHD202006-202010

SPEED WARNING-WITH(ASL)

sub78110-42071

78118PAD, ACCELERATOR PEDAL

main78117-33020iAXAP54202210-202310

9017906274

main90179-06274

9167380625

main91673-80625

6 parts on this diagram · 2 diagrams in section
