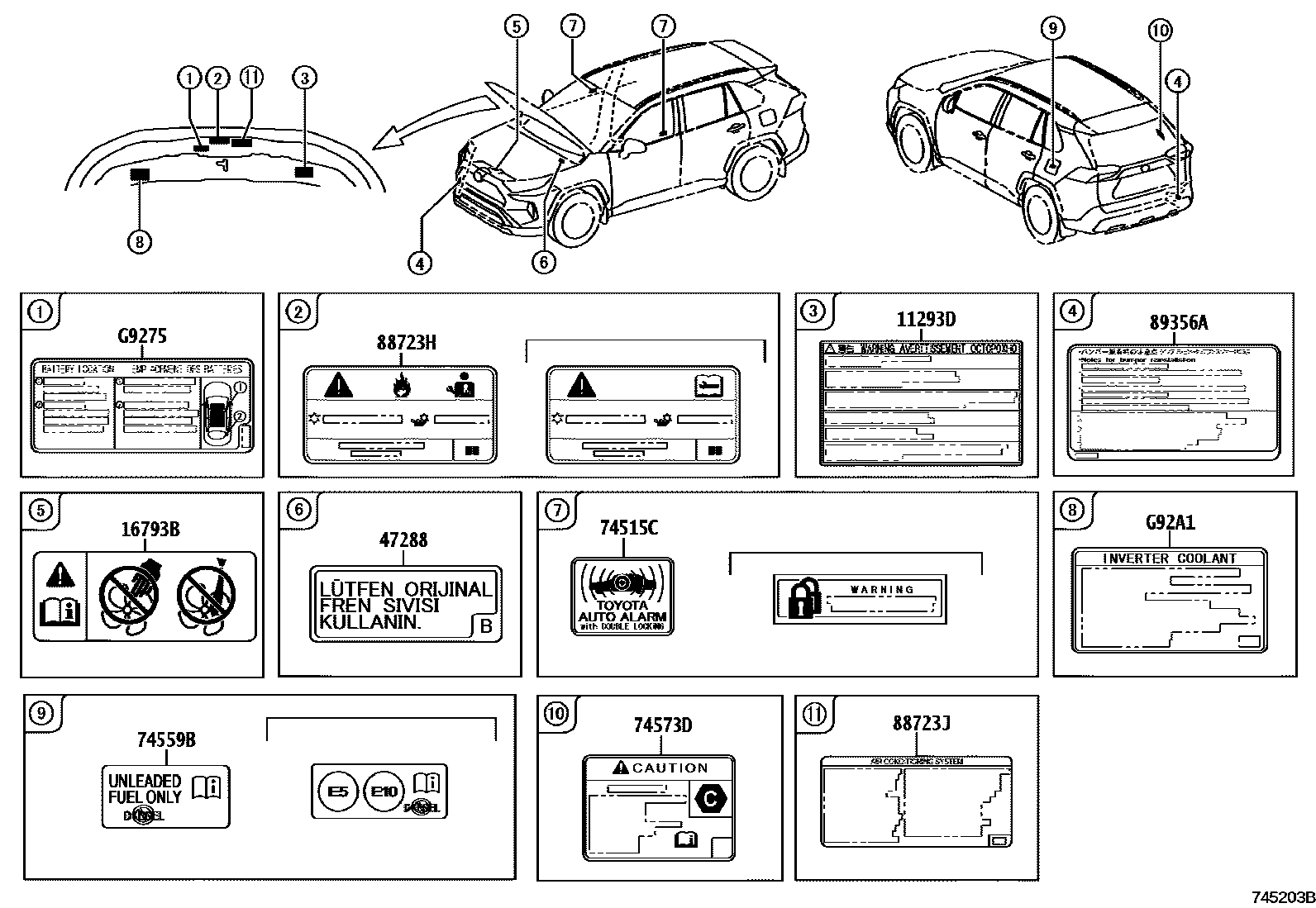

CAUTION PLATE

0001 1ENGINE ROOM & EXTERIOR(1/2) 0002 1EXTERIOR(2/2) 0003 1INTERIOR

11293DLABEL, ENGINE CAUTION

main11293-36070iA25AFXS..AXAP54¥200202006-202112

16793BLABEL, COOLING FAN INFORMATION

main16793-36030iA25AFXS..AXAP54¥110202006-202310

47288LABEL, BRAKE FLUID NOTICE

main47288-64010¥110

74515CLABEL, THEFT WARNING INFORMATION

main74515-20010iAXAP54..RHD¥300202006-202310

74559BLABEL, FUEL INFORMATION

main74559-11030iAXAP54¥110202006-202310

74573DLABEL, ELECTRIC VEHICLE BATTERY CAUTION

main74573-42120iAXAP54202006-202310

88723HLABEL, COOLER SERVICE CAUTION

main88723-42100iAXAP54¥90202006-202406

main88723-42230iAXAP54202407

88723JLABEL, COOLER SERVICE CAUTION, NO.2

main88733-52160iAXAP54202407

89356ALABEL, CLEARANCE WARNING INFORMATION

G9275LABEL, BATTERY CAUTION, NO.1

mainG927542030iAXAP54202006-202310

G92A1LABEL, HYBRID COOLANT SYSTEM INFORMATION

mainG92A176010iAXAP54202006-202010

11 parts on this diagram · 3 diagrams in section
