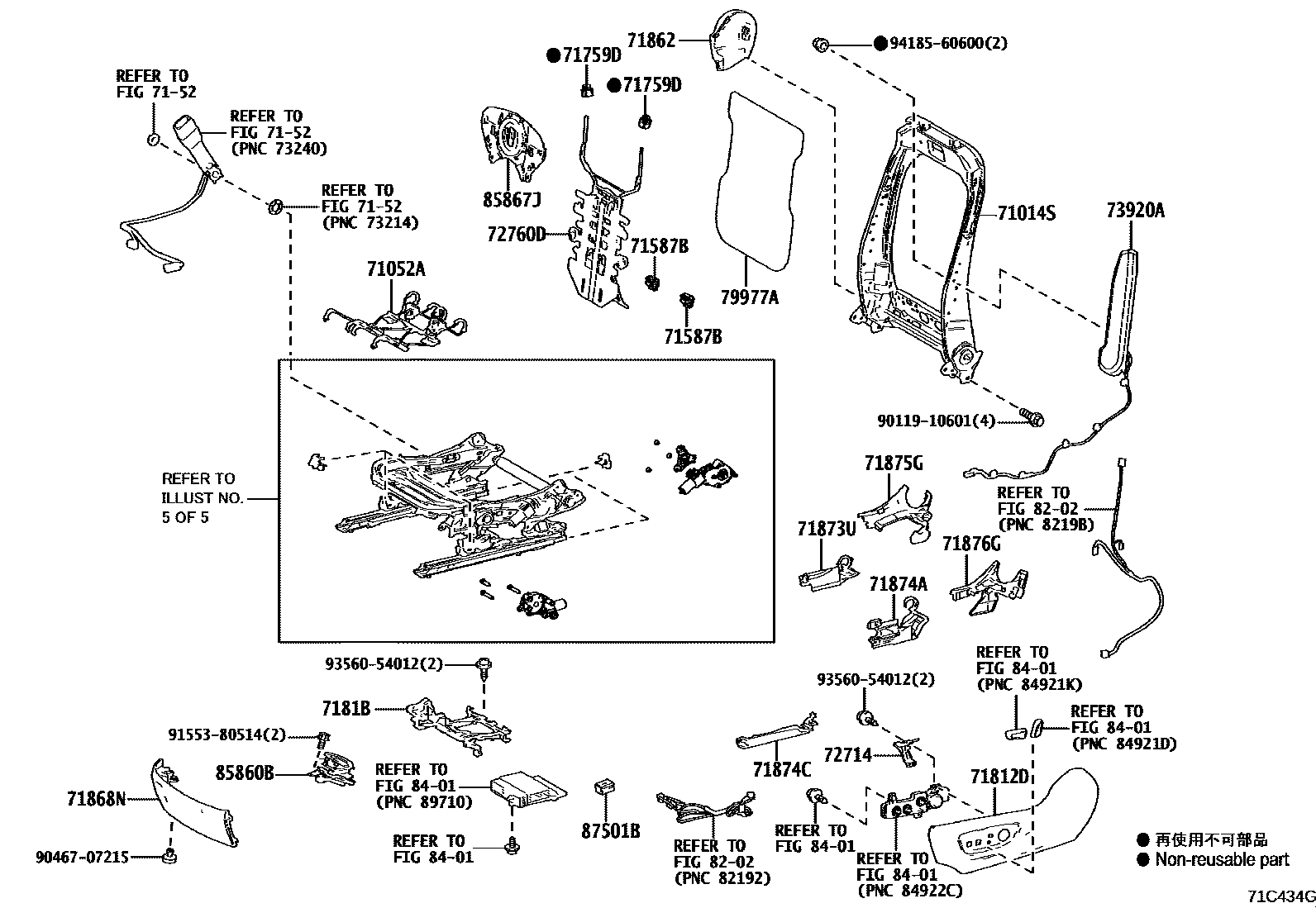

SEAT & SEAT TRACK

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-42211i202210-202310

GR SPORT&SEAT COVER MATERIAL-FOR GR SPORT&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL

main71014-42211i202006-202310

SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL

main71014-42330i202210-202310

GR SPORT&SEAT COVER MATERIAL-FOR GR SPORT

main71014-42330i202006-202310

SEAT COVER MATERIAL-LEATHER

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-47090i202006-202310

7152

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-47010i202006-202310

71587BPROTECTOR, FRONT SEATBACK EDGE

main71587-47010i202006-202310

71759DHOOK, FRONT SEATBACK, NO.2

main71759-50040i202006-202310

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-26500-C0i202006-202310

BLACK,TRIM2#

main71812-42210-C0i202006-202310

BLACK,TRIM2#

7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

main7181B-42010i202210-202310

SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL

main7181B-42010i202006-202210

main7181B-42010i202210-202310

GR SPORT&SEAT COVER MATERIAL-FOR GR SPORT&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL

main7181B-47010i202006-202310

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-42120-C0i202006-202310

BLACK,TRIM2#

main71862-47090-C1i202210-202310

GR SPORT&SEAT COVER MATERIAL-FOR GR SPORT&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL,BLACK,TRIM2#

sub71862-47090

main71862-47090-C1i202006-202310

BLACK,TRIM2#

sub71862-47090

main71862-47090-C1i202210-202310

SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL,BLACK,TRIM2#

sub71862-47090

71868NSHIELD, FRONT SEAT CUSHION, FRONT LH

main71868-42040-C0i202006-202310

BLACK,TRIM2#

main71868-42040-C0i202210-202310

GR SPORT&SEAT COVER MATERIAL-FOR GR SPORT&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL,BLACK,TRIM2#

main71868-42040-C0i202006-202310

SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL,BLACK,TRIM2#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-42050i202006-202210

main71873-42050i202210-202310

GR SPORT&SEAT COVER MATERIAL-FOR GR SPORT&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL

main71873-42050i202210-202310

SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL

71873USHIELD, FRONT SEAT CUSHION, LOWER RH

main71874-42040i202006-202210

main71874-42040i202210-202310

GR SPORT&SEAT COVER MATERIAL-FOR GR SPORT&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL

main71874-42040i202210-202310

SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71873-42060i202210-202310

SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL

main71873-42060i202006-202210

main71873-42060i202210-202310

GR SPORT&SEAT COVER MATERIAL-FOR GR SPORT&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-42050i202006-202210

main71874-42050i202210-202310

GR SPORT&SEAT COVER MATERIAL-FOR GR SPORT&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL

main71874-42050i202210-202310

SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL

71874CSHIELD, FRONT SEAT CUSHION, LOWER

main71874-42060i202210-202310

SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL

main71874-42060i202210-202310

GR SPORT&SEAT COVER MATERIAL-FOR GR SPORT&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL

main71874-42060i202006-202210

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71876-42070-C0i202006-202310

BLACK,TRIM2#

main71876-42090-C0i202006-202310

BLACK,TRIM2#

main71876-42090-C0i202210-202310

GR SPORT&SEAT COVER MATERIAL-FOR GR SPORT&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL,BLACK,TRIM2#

main71876-42090-C0i202210-202310

SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL,BLACK,TRIM2#

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-42060-C0i202006-202310

BLACK,TRIM2#

main71876-42080-C0i202006-202310

BLACK,TRIM2#

main71876-42080-C0i202210-202310

GR SPORT&SEAT COVER MATERIAL-FOR GR SPORT&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL,BLACK,TRIM2#

main71876-42080-C0i202210-202310

SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL,BLACK,TRIM2#

72714BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH

main72714-42010i202210-202310

GR SPORT&SEAT COVER MATERIAL-FOR GR SPORT&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL

main72714-42010i202210-202310

SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL

main72714-42010i202006-202210

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72750-33140i202006-202310

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-42090i202006-202310

79977FELT, SEATBACK

main79977-76010i202006-202310

SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL

main79977-76010i202210-202310

GR SPORT&SEAT COVER MATERIAL-FOR GR SPORT&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL

79977AFELT, SEATBACK

main79977-76010i202006-202310

SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL

main79977-76010i202210-202310

GR SPORT&SEAT COVER MATERIAL-FOR GR SPORT&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL

8202

8401

85860BBLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH

85867JBLOWER, SEATBACK CLIMATE CONTROL, LH

87501BCONTROL SUB-ASSY, SEAT HEATER, LH

9011910601

main90119-10601

9046707215

main90467-07215

9155380514

main91553-80514

9356054012

main93560-54012

9418560600

main94185-60600

32 parts on this diagram · 15 diagrams in section
