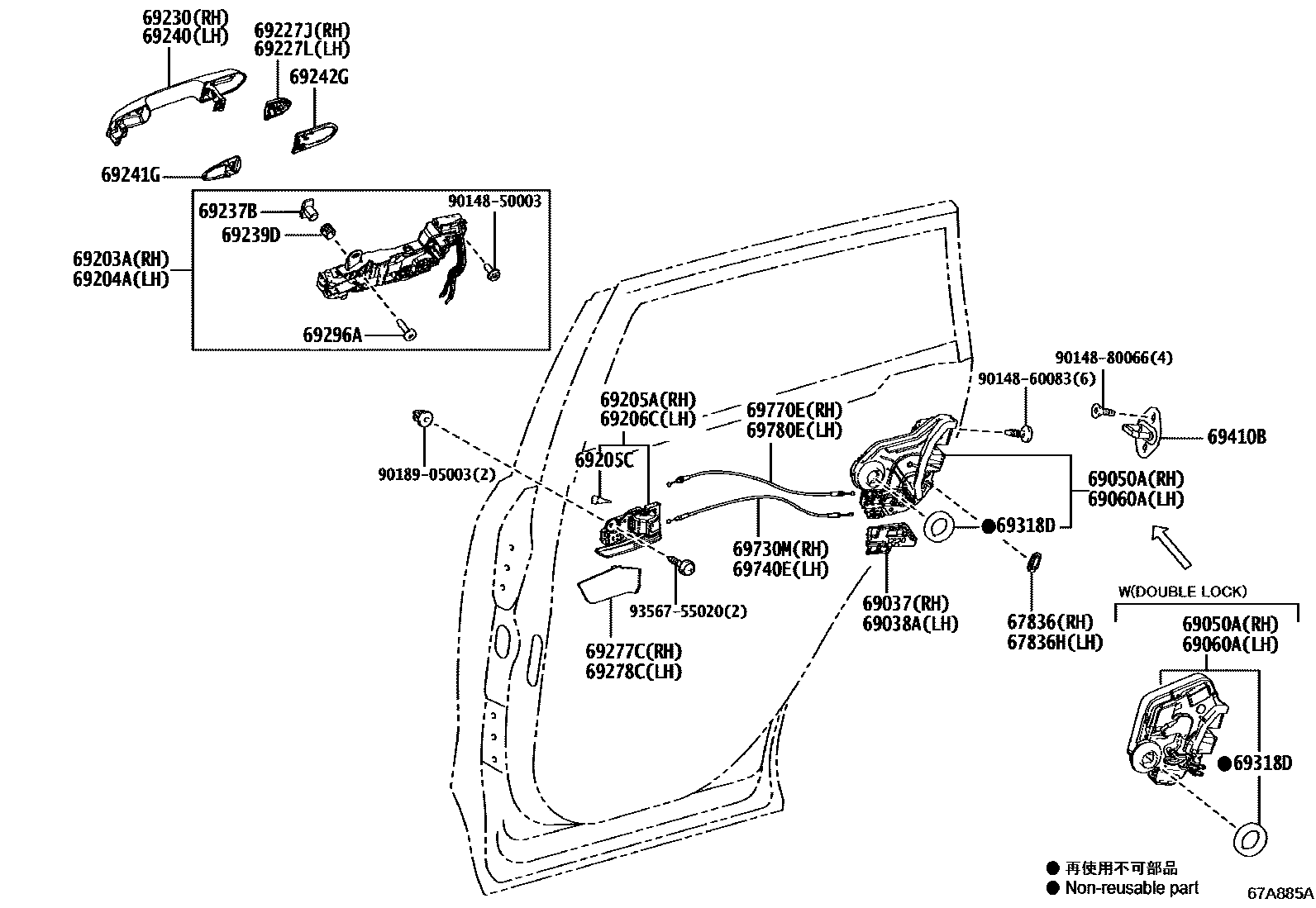

REAR DOOR LOCK & HANDLE
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
ANTI-THEFT SYSTEM-W(*IM & ALARM & *GBS(QUARTER/BACK DOOR))
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
ANTI-THEFT SYSTEM-W(*IM & ALARM & *GBS(QUARTER/BACK DOOR))
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM2#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM2#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
WHITE PEARL CS.,070 ,2QJ
PLATINUM WHITE PEARL MC.,089 ,2PS
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D6 ,2QY
SILVER ME.,1D6
GRAY ME.,1G3 ,2QZ
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
EMOTIONAL RED 2,3U5
EMOTIONAL RED 2,2SC ,3U5
DK. BLUE MC.,8X8
DK. BLUE MC.,2RA ,8X8
69237BNUT, REAR DOOR HANDLE
sub69237-0E010
69239DBUSH, REAR DOOR HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
WHITE PEARL CS.,070 ,2QJ
PLATINUM WHITE PEARL MC.,089 ,2PS
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D6
SILVER ME.,1D6 ,2QY
GRAY ME.,1G3 ,2QZ
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
EMOTIONAL RED 2,2SC ,3U5
EMOTIONAL RED 2,3U5
DK. BLUE MC.,8X8
DK. BLUE MC.,2RA ,8X8
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
BLACK
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
BLACK
69296ASCREW, DOOR INSIDE HANDLE
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
ANTI-THEFT SYSTEM-W(*IM & ALARM & *GBS(QUARTER/BACK DOOR))
69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
ANTI-THEFT SYSTEM-W(*IM & ALARM & *GBS(QUARTER/BACK DOOR))
69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
ANTI-THEFT SYSTEM-W(*IM & ALARM & *GBS(QUARTER/BACK DOOR))
69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
ANTI-THEFT SYSTEM-W(*IM & ALARM & *GBS(QUARTER/BACK DOOR))
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9018905003
main90189-05003
9356755020
main93567-55020
33 parts on this diagram · 1 diagram in section
