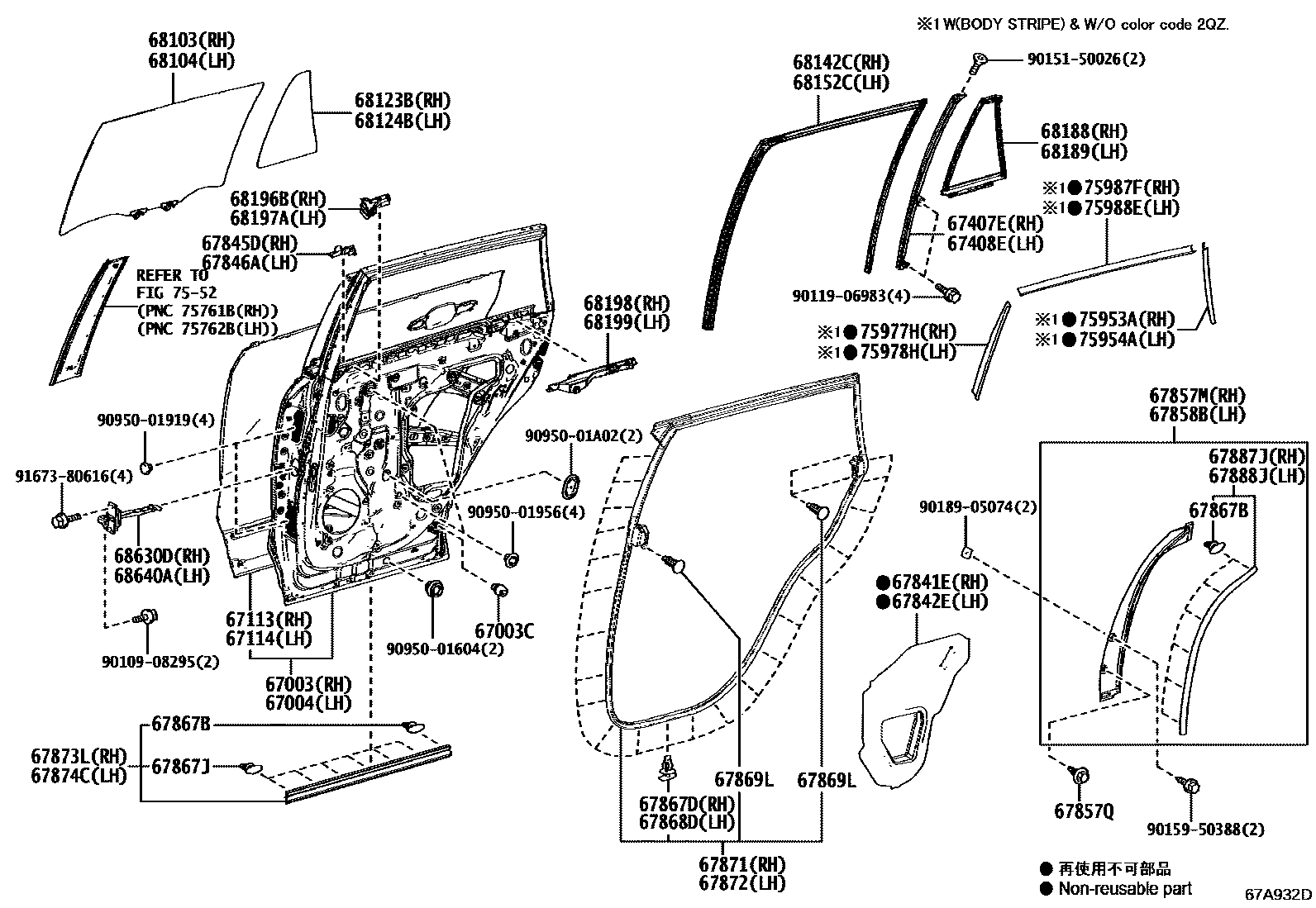

REAR DOOR PANEL & GLASS
67003CCUSHION, REAR DOOR PANEL
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67845DSEAL, REAR DOOR FRONT OUTSIDE, RH
67846ASEAL, REAR DOOR FRONT OUTSIDE, LH
67857MPROTECTOR, REAR DOOR PANEL, RH
67857QCLIP, REAR DOOR PANEL PROTECTOR
67858BPROTECTOR, REAR DOOR PANEL, LH
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67867JCLIP, DOOR WEATHERSTRIP, RH(FOR REAR DOOR)
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67869LCLIP, REAR DOOR WEATHERSTRIP
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67873LWEATHERSTRIP, REAR DOOR, NO.5 RH
67874CWEATHERSTRIP, REAR DOOR, NO.5 LH
67887JWEATHERSTRIP, ACCESS PANEL, NO.2 RH
67888JWEATHERSTRIP, ACCESS PANEL, NO.2 LH
68103GLASS SUB-ASSY, REAR DOOR, RH
REAR SIDE GLASS-UV-CUT(GREEN)
REAR SIDE GLASS-DARK(GRAY)
68104GLASS SUB-ASSY, REAR DOOR, LH
REAR SIDE GLASS-UV-CUT(GREEN)
REAR SIDE GLASS-DARK(GRAY)
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
REAR SIDE GLASS-UV-CUT(GREEN)
REAR SIDE GLASS-DARK(GRAY)
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
REAR SIDE GLASS-UV-CUT(GREEN)
REAR SIDE GLASS-DARK(GRAY)
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68196BSEAL, REAR DOOR BELT, FRONT RH
68197ASEAL, REAR DOOR BELT, FRONT LH
68198SEAL, REAR DOOR BELT, REAR RH
68199SEAL, REAR DOOR BELT, REAR LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
7552
75953ATAPE, BLACK OUT, INNER REAR RH
BODY STRIPE-WITHOUT
75954ATAPE, BLACK OUT, INNER REAR LH
BODY STRIPE-WITHOUT
75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH
BODY STRIPE-WITHOUT
75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH
BODY STRIPE-WITHOUT
75987FSTRIPE, REAR DOOR, OUTSIDE, RH
BODY STRIPE-WITHOUT
75988ESTRIPE, REAR DOOR, OUTSIDE LH
BODY STRIPE-WITHOUT
9010908295
main90109-08295
9011906983
main90119-06983
9015150026
main90151-50026
9015950388
main90159-50388
9018905074
main90189-05074
9095001604
main90950-01604
9095001919
main90950-01919
9095001956
main90950-01956
9095001A02
main90950-01A02
9167380616
main91673-80616
56 parts on this diagram · 2 diagrams in section
